VR G3/8-IG HW

Part no.: 10.05.05.00026

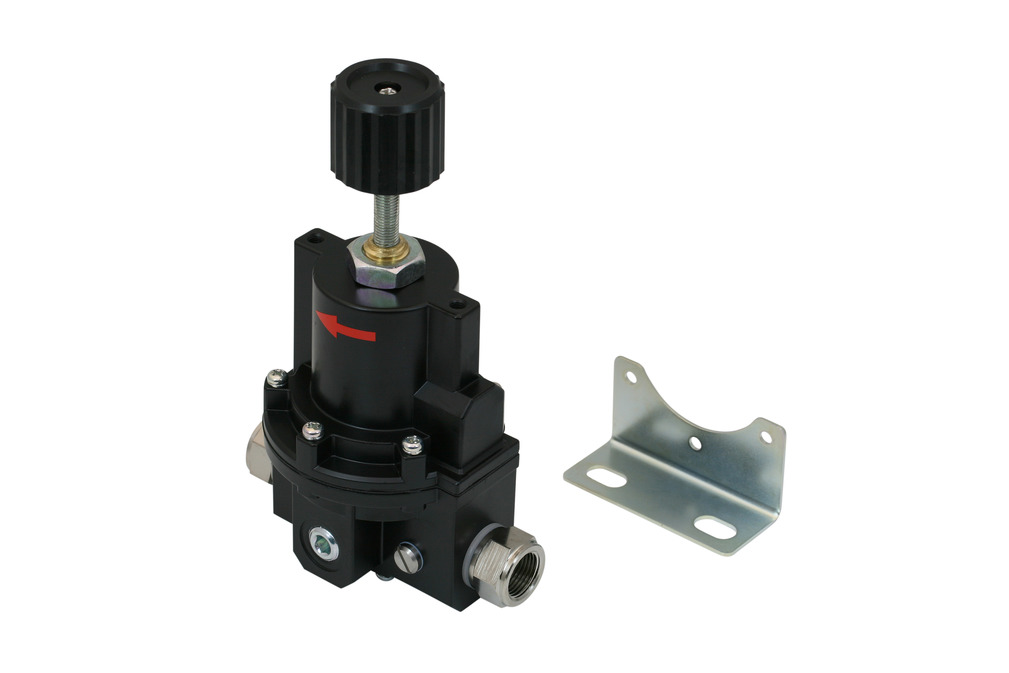

Vacuum regulator to compensate for vacuum variations

VR G3/8-IG HW
Thread G1G3/8"-F
Vacuum range-990 ... -14 mbar
Additional functionHolding angle
VR G3/8-IG HW
Attribute Value
B 76.40 mm
B1 87.20 mm
B2 49 mm
G1 G3/8"-F
G2 G1/4"-F
H 176.80 mm
H2 82.30 mm
H3 9 mm
L 76 mm
X1 45 mm
Attribute Value
Vacuum range -990 ... -14 mbar
Repeatability 5 mbar
Flow rate max. vacuum 195 l/min
Flow rate max. 11.70 m³/h
Operating temperature 5 ... 60 °C
Weight 0.65 kg
Product family VR
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Français
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English

Ordering information: VR G3/8-IG HW

Vacuum regulator VR is delivered as a ready-to-connect product, including holding angle.
