SAUG-SCGS 20 SI-HD-65 602 B

Part no.: 10.01.30.01103

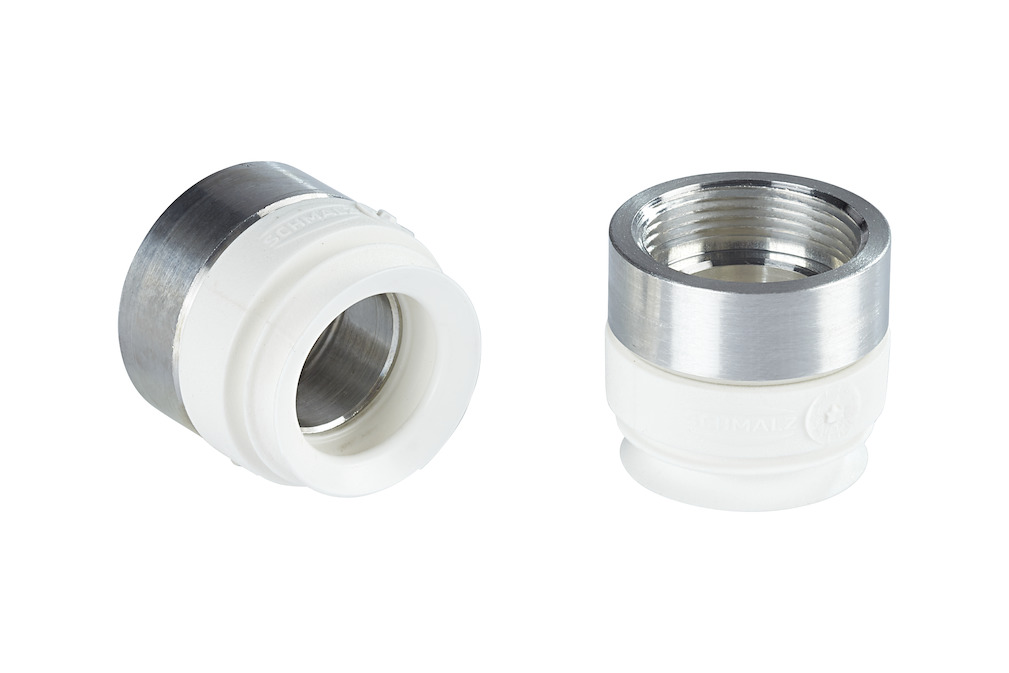

Suction cup (round)

SAUG-SCGS 20 SI-HD-65 602 B
Size20
Suction cup materialSilicone SI-HD
Material hardness [Shore A]65 Shore A
SAUG-SCGS 20 SI-HD-65 602 B

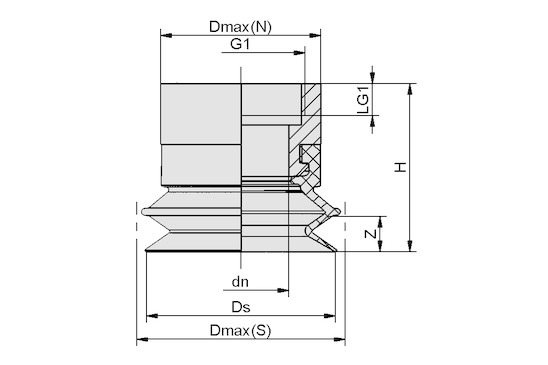

Attribute Value
Dmax (N) 25 mm
Dmax(S) 25 mm
dn 15 mm
Ds 21.50 mm
G1 M20x1-F
H 22.50 mm
LG1 5 mm
Z (Stroke) 3 mm
Attribute Value
Size 20
Suction cup material Silicone SI-HD
Material hardness [Shore A] 65 Shore A
Weight 9.40 g
Product family SAUG-SCGS

Ordering information: SAUG-SCGS 20 SI-HD-65 602 B

The flow gripper SCGS is constructed in two parts. To obtain a complete gripper (flow gripper + suction cup), the following ordering steps are necessary:

  • Flow gripper (step1) – available for sideways mounting
  • Suction cup (step 2)


Available accessories: screw in push fitting
