SAUG-SCG 20 SI-55

Part no.: 10.01.30.00665

Suction cup (round)

no-img
Phase-out article
Size20
Height H19.6 mm
Suction cup materialSilicone SI
Material hardness [Shore A]55 Shore A
SAUG-SCG 20 SI-HD-65 602 B

The product family SAUG-SCG 20 SI-55 phases out and is still available until 12-31-2025

Beginning on this date, the item can no longer be ordered.

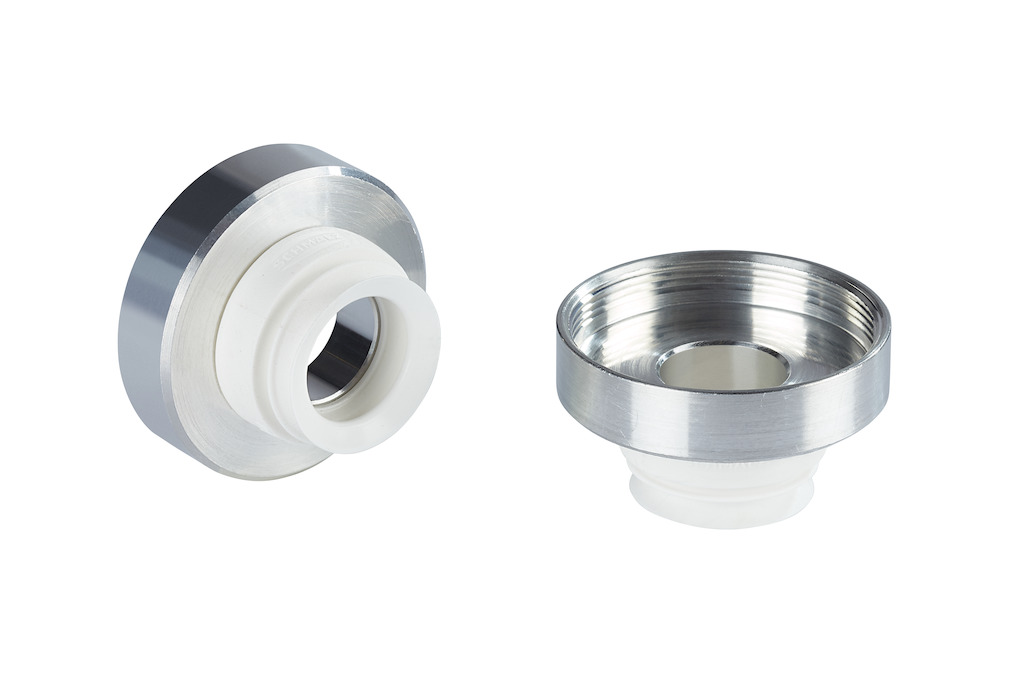

Alternative item (see picture): SAUG-SCG 20 SI-HD-65 602 B

Go to item
Go to item
SAUG-SCG 20 SI-55

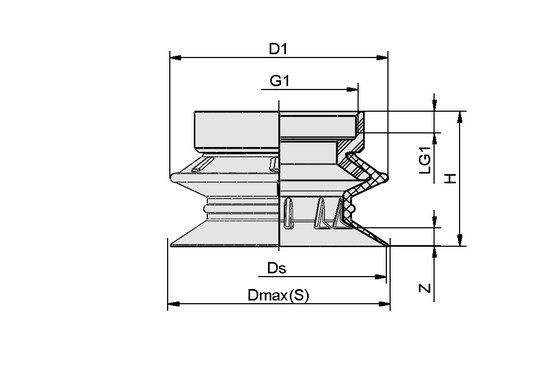

Attribute Value
D1 22 mm
Dmax (N) 39.60 mm
Dmax(S) 23 mm
dn 11 mm
Ds 21.40 mm
G1 M37x1-F
H 19.60 mm
LG1 5 mm
Z (Stroke) 1.50 mm
Attribute Value
Size 20
Pressure range (operating pressure) bar
Operating temperature °C
Number of folds 0
Weight 8.30 g
Holding force N
Air consumption m³/h
Air consumption l/min
Material hardness [Shore A] 55 Shore A
Suction rate m³/h
Suction rate l/min
Suction cup material Silicone SI
Product family SAUG-SCG

Ordering information: SAUG-SCG 20 SI-55

The flow gripper SCG for dry food s designed in two parts. In order to receive a complete gripper (flow gripper + suction cup) the following ordering steps are required:

  • Flow gripper (step1) – available for axial or sideways mounting
  • Suction cup (step 2)

Available accessories: plug-in screw union
