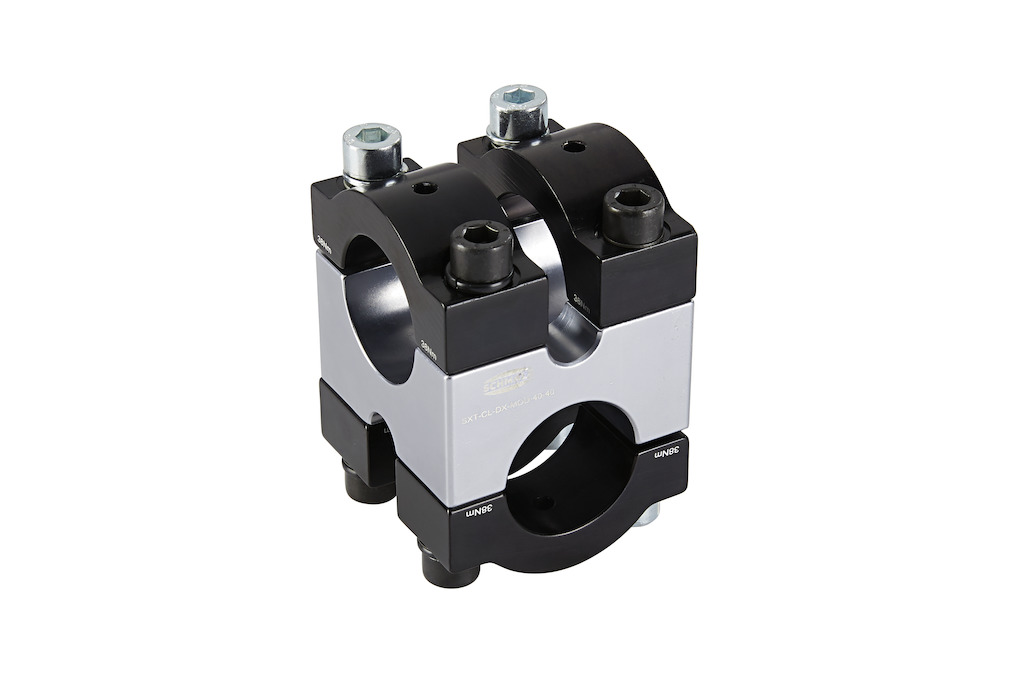

SXT-CL DX MOD 40 40 AL

Part no.: 10.07.13.00122

Clamp for Round Tooling

SXT-CL DX MOD 40 40 AL
Shape mounting elementsmodular
ShapeDouble cross shape
Width B75 mm
Length L75 mm
MaterialAluminum
Construction usePipe 40 / 40
SXT-CL DX MOD 40 40 AL

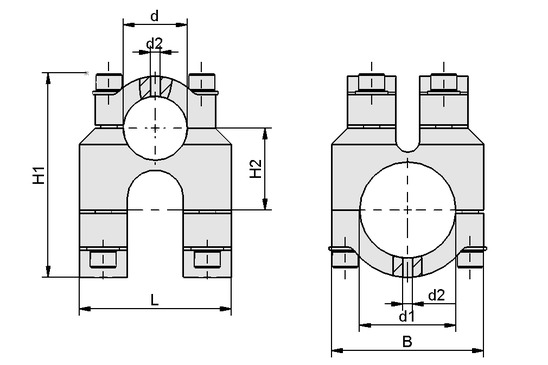

Attribute Value
B 75 mm
d 40 mm
d1 40 mm
d2 6 mm
H1 109 mm
H2 41 mm
L 75 mm
Attribute Value
Material Aluminum
Shape Double cross shape
Shape mounting elements MOD
Weight 970 g
Product family SXT

Ordering information: SXT-CL DX MOD 40 40 AL

The clamps SXT-CL are delivered as a ready-to-connect product.



Available accessories: Pipes SXT-RT
