ANW G1/8-IG G1/4-AG

Part no.: 10.01.01.10112

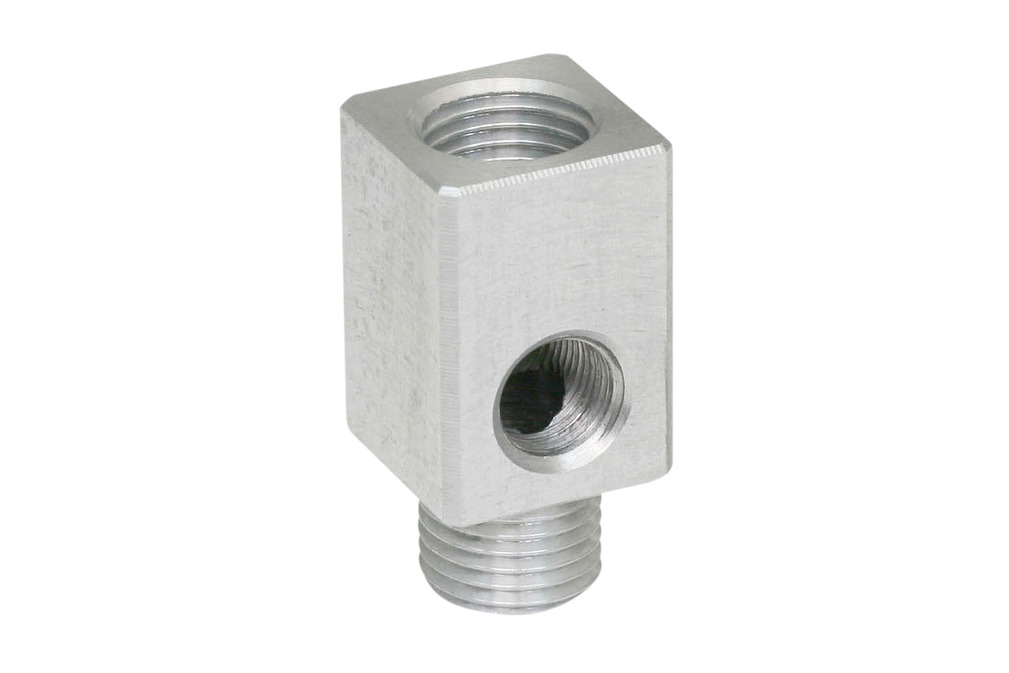

Adapter for mounting suction cups in restricted spaces

ANW G1/8-IG G1/4-AG
Suction cup connectionG1/4"-M
Vacuum connectionG1/8"-F
MaterialAluminum
ANW G1/8-IG G1/4-AG

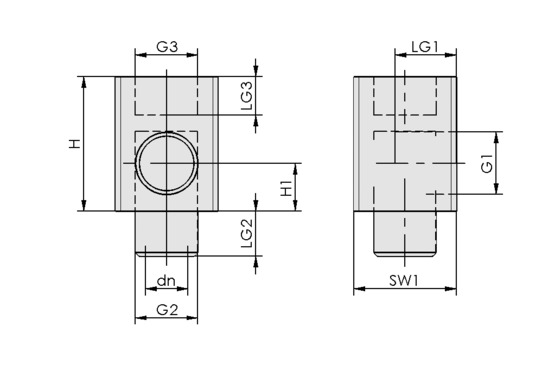

Attribute Value
dn 8 mm
G1 G1/8"-F
G2 G1/4"-M
G3 G1/4-IG
H 26 mm
H1 8 mm
LG1 11 mm
LG2 10 mm
LG3 10 mm
SW1 18 mm
Attribute Value
Weight 20 g

Ordering information: ANW G1/8-IG G1/4-AG

Adapter for elbow connector ANW is delivered as a ready to connect product.



Available accessories: mounting adapter VRS-AN
