HT-FST A5 35 M18x1.5

Part no.: 10.07.06.00476

Holder for spring plunger

HT-FST A5 35 M18x1.5
Connection 1Ball head 32 mm
Width B35 mm
Thread G3M18x1.5-F
HT-FST A5 35 M18x1.5

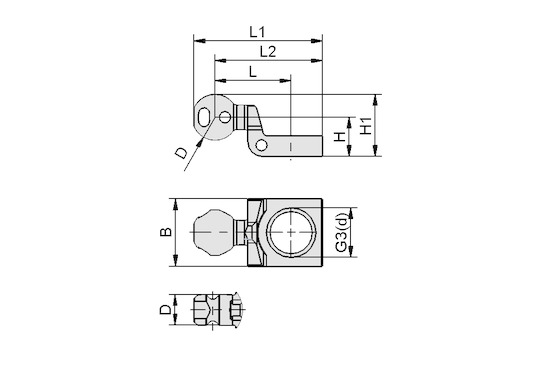

Attribute Value
B 35 mm
D 32 mm
G3 M18x1.5-F
H 24.50 mm
H1 40.50 mm
L 47.50 mm
L1 82 mm
L2 67 mm
Attribute Value
Weight 95.50 g
Product family HT

Ordering information: HT-FST A5 35 M18x1.5

The holders for spring plungers HT-FST are delivered as a ready-to-connect product.
