ROB-SET VEE YASKAWA > Area Gripping Systems and End Effectors

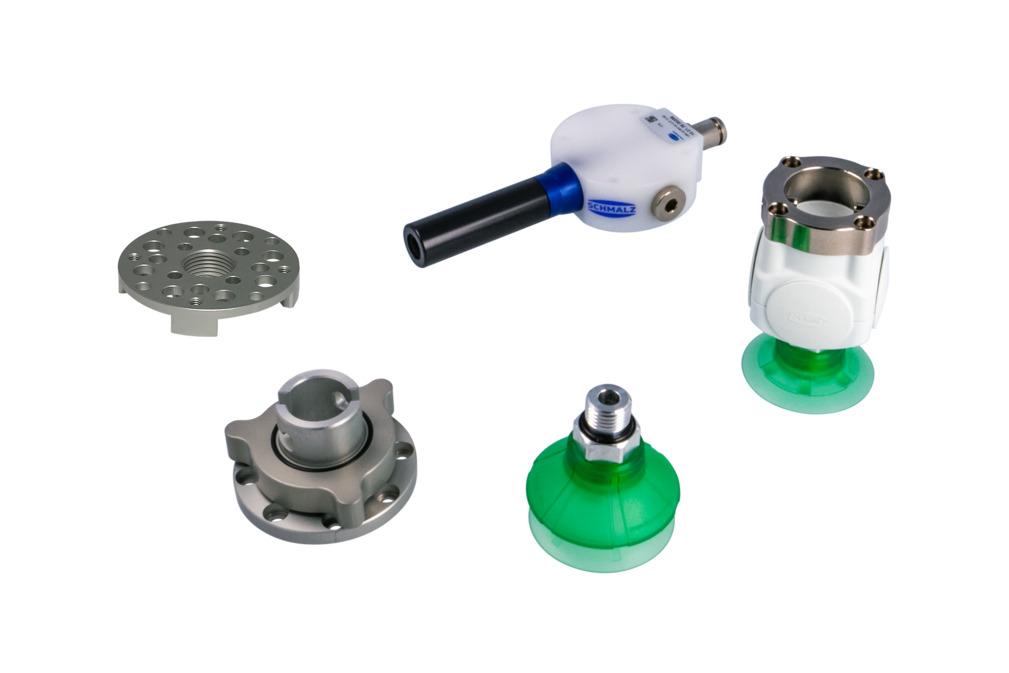

Complete vacuum end effector system for connection to lightweight robots

Construction use	Vacuum end effector
for	Yaskawa

Attribute	Value
Pressure range (operating pressure)	bar
Suction rate (max.)	42.50 l/min
Operating temperature	0 ... 60 °C
Weight	0.32 kg

The technical properties of the robot types may vary by region. The stated compatibility of the set is based on standard European models.

Shape	High vacuum
Number of stages	2
Nozzle size	0.7 mm
Hole diameter	13 mm
Degree of evacuation	85 %
Pressure range (operating pressure)	2.0 ... 6.0 bar
Pressure optimal	4 bar
Suction rate (max.)	42.5 l/min
Air consumption suction	23.5 l/min

External diameter D	6 mm
Internal diameter d	4 mm
Length max.	500 m
Material hose	PU
Bending radius min.	35 mm
Pressure range (operating pressure)	-0.95 ... 10.00 bar
Operating temperature	-20 ... 90 °C

ROB-SET VEE YASKAWA
