FM-SW 38x22 N10

Part no.: 10.01.10.00841

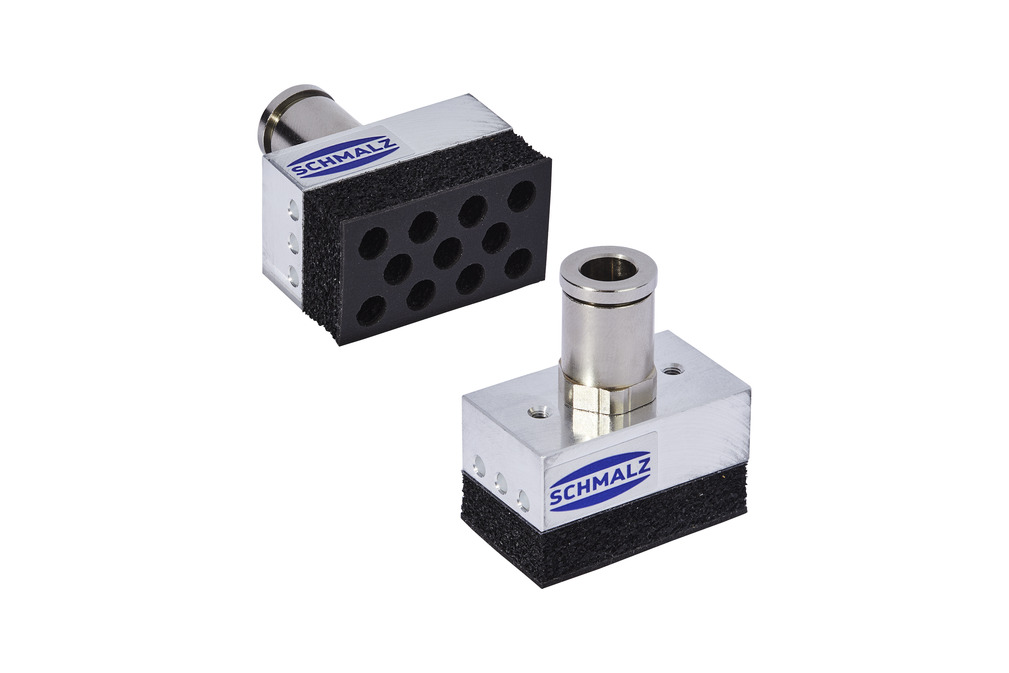

Vacuum area gripping system with flow resistors

FM-SW 38x22 N10
Width B22 mm
Length L38 mm
Material typeFoam N, Height 10 mm
Number of suction cells11
FM-SW 38x22 N10

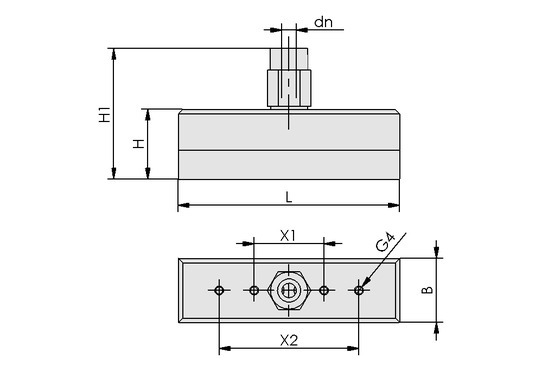

Attribute Value
B 22 mm
dn 8 mm
H 23 mm
H1 43.70 mm
L 38 mm
X1 24 mm
Attribute Value
Number of suction cells 11
Weight 0.02 kg
Product family FM-SW

Ordering information: FM-SW 38x22 N10

Gripping system FM-SW is delivered as a ready-to-connect product.

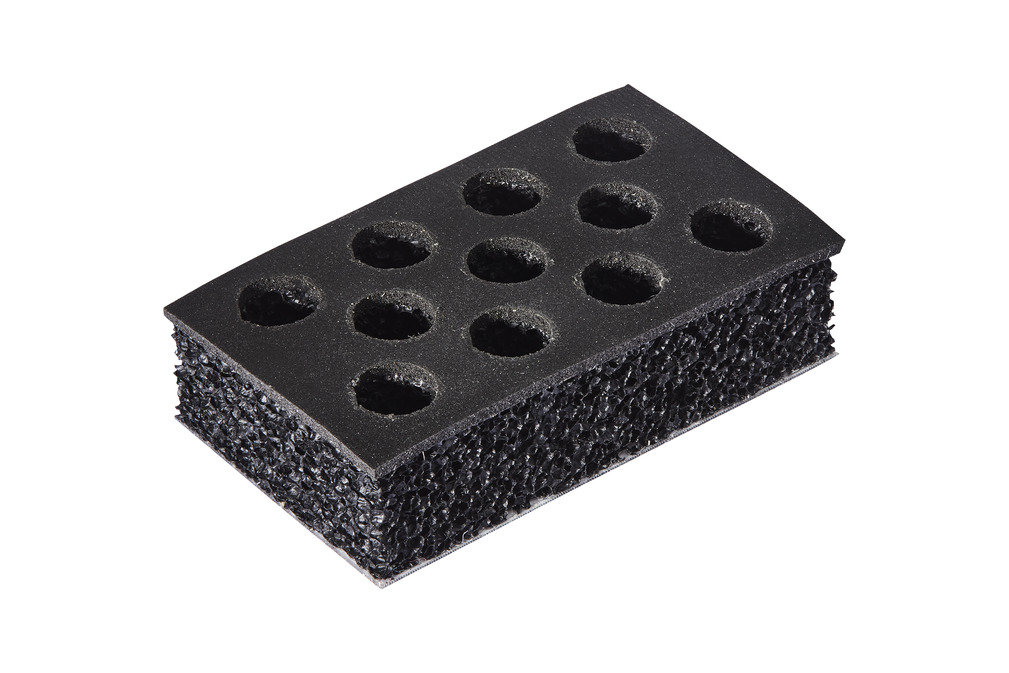

Available spare parts: sealing plate
