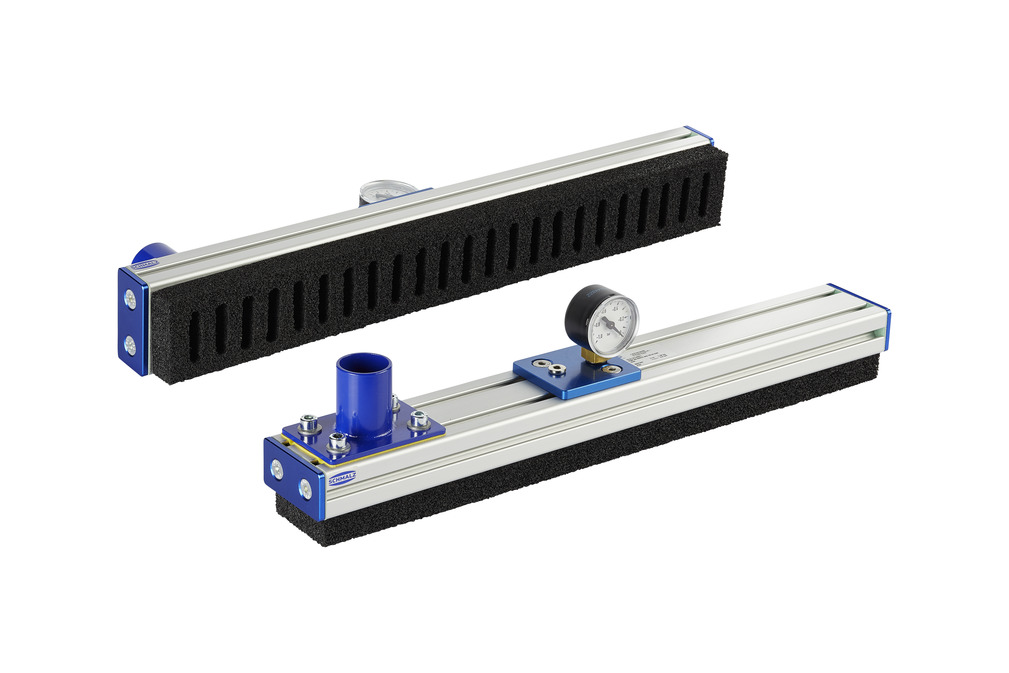

FMP-60-SW70 442 1R18 O20 G32

Part no.: 10.01.53.00071

60mm wide area gripper series for external vacuum generation with integrated flow resistors

FMP-60-SW70 442 1R18 O20 G32
Nozzle diameter0.7 mm
Length L442 mm
Width B60 mm
Arrangement suction cells1 row, 18 mm
Material typeFoam O, Height 20 mm
FMP-60-SW70 442 1R18 O20 G32

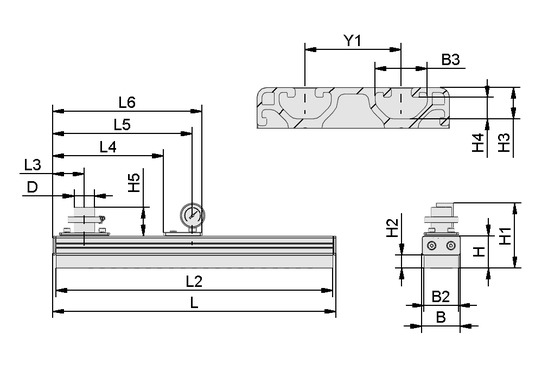

Attribute Value
B 60 mm
B2 54 mm
B3 16.30 mm
D 32 mm
H 50 mm
H1 102 mm
H2 20 mm
H3 9.75 mm
H4 6.75 mm
H5 45 mm
L 442 mm
L2 432 mm
L3 49.50 mm
L4 173 mm
L5 218 mm
L6 233 mm
Y1 30 mm
Valve type SW
Attribute Value
Arrangement 1R18
Material type Foam O, Height 20 mm
Number of suction cells 23
Suction force at -250 mbar 149 N
Sealing element Sealing Foam
Weight 1.10 kg
Product family FXP-FMP-60


Required suction power: The specified volume flow must be available at the nozzle at -250 mbar. Suction force: The suction force specifications are theoretical values at -0.25 bar vacuum. The actual values may deviate. They are given without safety factors.
The matching documentation for this product is available in this section.

Documents

Language

Technical information
English
Technical information
Deutsch
Technical information
Polski
Technical information
Türkçe
Technical information
Pусский
Technical information
한국어
Technical information
Suomalainen
Technical information
Nederlands
Technical information
Česky
Technical information
Hrvatski
Technical information
Slovenščina
Technical information
Srpski
Technical information
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Technical information
English English

Accessories

FLK G1/4-IG G1/4-AG
FLK G1/4-IG G1/4-AG
schmalz-select
10.01.03.00178
Thread G1G1/4"-F
Thread G2G1/4"-M
Operating temperature0 ... 70 °C
FLK G1/4-AG G1/4-AG
FLK G1/4-AG G1/4-AG
schmalz-select
10.01.03.00152
Thread G1G1/4"-M
Thread G2G1/4"-M
Operating temperature0 ... 70 °C
VAM 40 V DR BAR
VAM 40 V DR BAR
10.01.44.00249
Width B27 mm
External diameter D40 mm
Measuring range-1,00 ... 0,00 bar
Construction shape manometersWith sealing ring
Vacuum connectionG1/8"-M
EMVP 32 24V-DC 3/2 NO
EMVP 32 24V-DC 3/2 NO
10.05.02.00068
Nominal size32 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally open
Connecting threadG1-1/4"-F
Pressure range (operating pressure)-0.95 ... 0.00 bar
Nominal flow rate130 m³/h
Weight0.5 kg
FSTE-HD G1/4-AG 50 VG
FSTE-HD G1/4-AG 50 VG
10.01.02.00876
Suction cup connectionG1/4"-M
Vacuum connectionG1/8"-F
Spring stroke Z50 mm
Shape mounting elementswith anti-rotation guard
VTR-SL 3x RST60 2xD32
VTR-SL 3x RST60 2xD32
10.01.43.00013
Length L439 mm
Width B100 mm
Height H127.5 mm
VSL 41-32 PVC-DS KL-TR
VSL 41-32 PVC-DS KL-TR
10.07.09.00008
External diameter D41 mm
Internal diameter d32 mm
Length max.50 m
Material hosePVC with wire spiral
Bending radius min.110 mm
Pressure range (operating pressure)-0.85 ... 4.00 bar
Operating temperature-15 ... 65 °C
VSL 42-32 PU-DS-AS TR
VSL 42-32 PU-DS-AS TR
schmalz-select
10.07.09.00036
External diameter D42 mm
Internal diameter d32 mm
Length max.20 m
Material hosePU, wire spiral, antistatic
Bending radius min.25 mm
Pressure range (operating pressure)-1.00 ... 3.77 bar
Operating temperature-40 ... 90 °C
SSB 32-50 ST-VZ
SSB 32-50 ST-VZ
10.07.10.00004
Clamping range32.0 ... 50.0 mm
MaterialSteel
Surfacegalvanised
FLAN-PL 50x54x10 AL-PUL FXP-FMP-60
FLAN-PL 50x54x10 AL-PUL FXP-FMP-60
10.01.53.00029
Length L50 mm
Width B54 mm
Height H10 mm
Size60
Construction useVacuum area gripping system FXP-FMP
SET FXP/FMP-60
SET FXP/FMP-60
10.01.53.00025
Construction useArea gripping system FXP-/FMP-60
MOD-FLAN 152x109 FXP/FMP-60
MOD-FLAN 152x109 FXP/FMP-60
10.01.53.00072
Length L152 mm
Width B109 mm
Height H40 mm
Construction useArea gripping system FXP-/FMP-60

Ordering information: FMP-60-SW70 442 1R18 O20 G32

The area gripping systems FXP-60 and FMP-60 are available as a ready-to-connect product.

  • Available spare parts: Sealing foam, ejector nozzles, plugs, silencers, plug-in screw unions
  • Available accessories: External vacuum generators, flange modules, vacuum hose, vacuum gauges, vacuum/pressure switches, spring plungers, ball joints, vacuum filters, valves
