FXP-60-SW70 442 1R18 O20

Part no.: 10.01.53.00070

60mm wide area gripper series incl. pneumat. Vacuum generation with integrated flow resistors

FXP-60-SW70 442 1R18 O20
Nozzle diameter0.7 mm
Length L442 mm
Width B60 mm
Arrangement suction cells1 row, 18 mm
Material typeFoam O, Height 20 mm
DesignEjector module SEP
Size2 13 22
FXP-60-SW70 442 1R18 O20

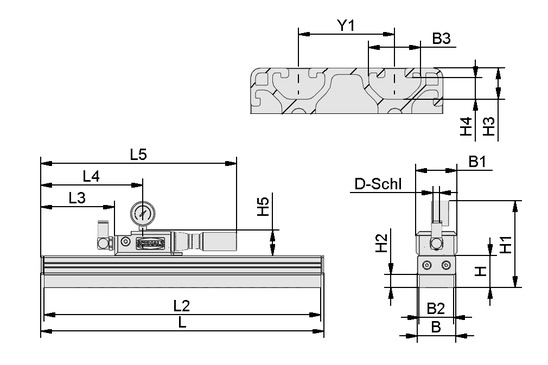

Attribute Value
B 60 mm
B1 64 mm
B2 54 mm
B3 16.30 mm
Hose diameter 10 mm
H 50 mm
H1 102 mm
H2 20 mm
H3 9.75 mm
H4 6.75 mm
H5 45 mm
L 442 mm
L2 432 mm
L3 115 mm
L4 159 mm
L5 306 mm
Y1 30 mm
Valve type SW
Attribute Value
Arrangement 1R18
Material type Foam O, Height 20 mm
Number of suction cells 23
Suction force at -250 mbar 149 N
Suction rate (max.) 270 l/min
Air consumption 165 l/min

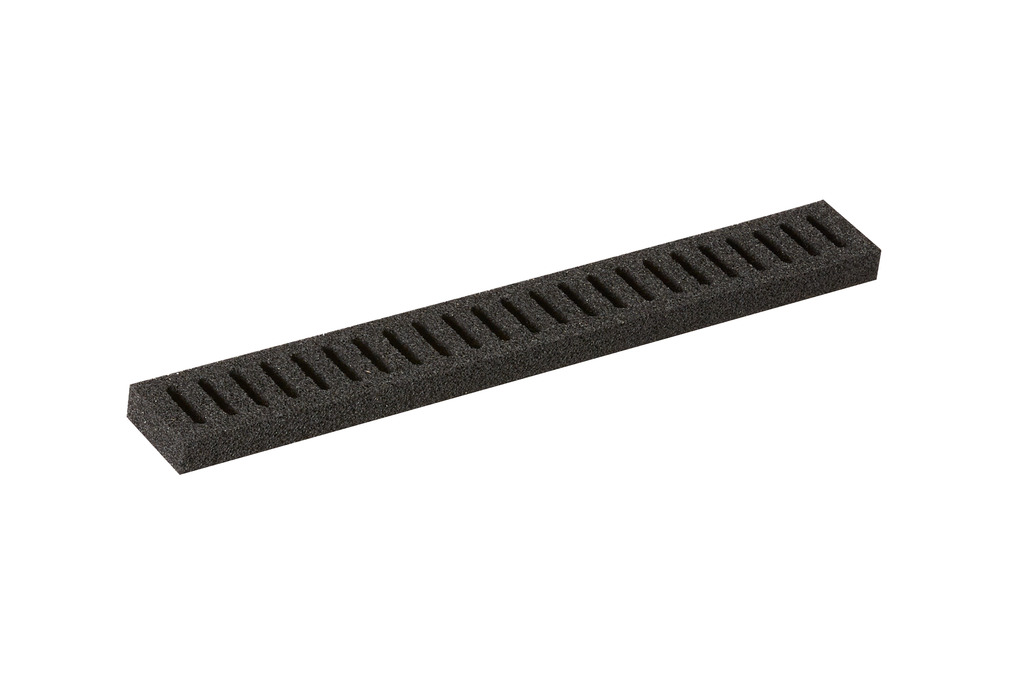

Sealing element Sealing Foam
Weight 1.50 kg
Product family FXP-FMP-60


Air consumption: Operating pressure 5 bar Suction rate (max.): Operating pressure 5 bar Suction force: The suction force data are theoretical values at -0.25 bar vacuum. The actual values may differ. They are given without safety factors.
The matching documentation for this product is available in this section.

Documents

Language

Technical information
English
Technical information
Deutsch
Technical information
Polski
Technical information
Türkçe
Technical information
Pусский
Technical information
한국어
Technical information
Suomalainen
Technical information
Nederlands
Technical information
Česky
Technical information
Hrvatski
Technical information
Slovenščina
Technical information
Srpski
Technical information
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Technical information
English English

Accessories

FLK G1/4-IG G1/4-AG
FLK G1/4-IG G1/4-AG
schmalz-select
10.01.03.00178
Thread G1G1/4"-F
Thread G2G1/4"-M
Operating temperature0 ... 70 °C
FLK G1/4-AG G1/4-AG
FLK G1/4-AG G1/4-AG
schmalz-select
10.01.03.00152
Thread G1G1/4"-M
Thread G2G1/4"-M
Operating temperature0 ... 70 °C
VAM 40 V DR BAR
VAM 40 V DR BAR
10.01.44.00249
Width B27 mm
External diameter D40 mm
Measuring range-1,00 ... 0,00 bar
Construction shape manometersWith sealing ring
Vacuum connectionG1/8"-M
FSTE-HD G1/4-AG 50 VG
FSTE-HD G1/4-AG 50 VG
10.01.02.00876
Suction cup connectionG1/4"-M
Vacuum connectionG1/8"-F
Spring stroke Z50 mm
Shape mounting elementswith anti-rotation guard
VSL 10-7 PE MI-TR
VSL 10-7 PE MI-TR
10.07.09.00083
External diameter D10 mm
Internal diameter d7 mm
Length max.50 m
Material hosePE
Bending radius min.60 mm
Pressure range (operating pressure)-0.95 ... 10.00 bar
Operating temperature-30 ... 70 °C
VSL 10-7 PU MI-TR
VSL 10-7 PU MI-TR
10.07.09.00084
External diameter D10 mm
Internal diameter d7 mm
Length max.50 m
Material hosePU
Bending radius min.60 mm
Pressure range (operating pressure)-0.95 ... 10.00 bar
Operating temperature-40 ... 85 °C
FLAN-PL 50x54x10 AL-PUL FXP-FMP-60
FLAN-PL 50x54x10 AL-PUL FXP-FMP-60
10.01.53.00029
Length L50 mm
Width B54 mm
Height H10 mm
Size60
Construction useVacuum area gripping system FXP-FMP
SET FXP/FMP-60
SET FXP/FMP-60
10.01.53.00025
Construction useArea gripping system FXP-/FMP-60
MOD-FLAN 143.6x110 FXP/FMP-60
MOD-FLAN 143.6x110 FXP/FMP-60
10.01.53.00153
Length L143.6 mm
Width B110 mm
Height H83.9 mm
Construction useArea gripping system FXP-/FMP-60

Ordering information: FXP-60-SW70 442 1R18 O20

The area gripping systems FXP-60 and FMP-60 are available as a ready-to-connect product.

  • Available spare parts: Sealing foam, ejector nozzles, plugs, silencers, plug-in screw unions
  • Available accessories: External vacuum generators, flange modules, vacuum hose, vacuum gauges, vacuum/pressure switches, spring plungers, ball joints, vacuum filters, valves
