FMP-SVK 1234 5R36 SPB2-20P G60

Part no.: 10.01.38.00477

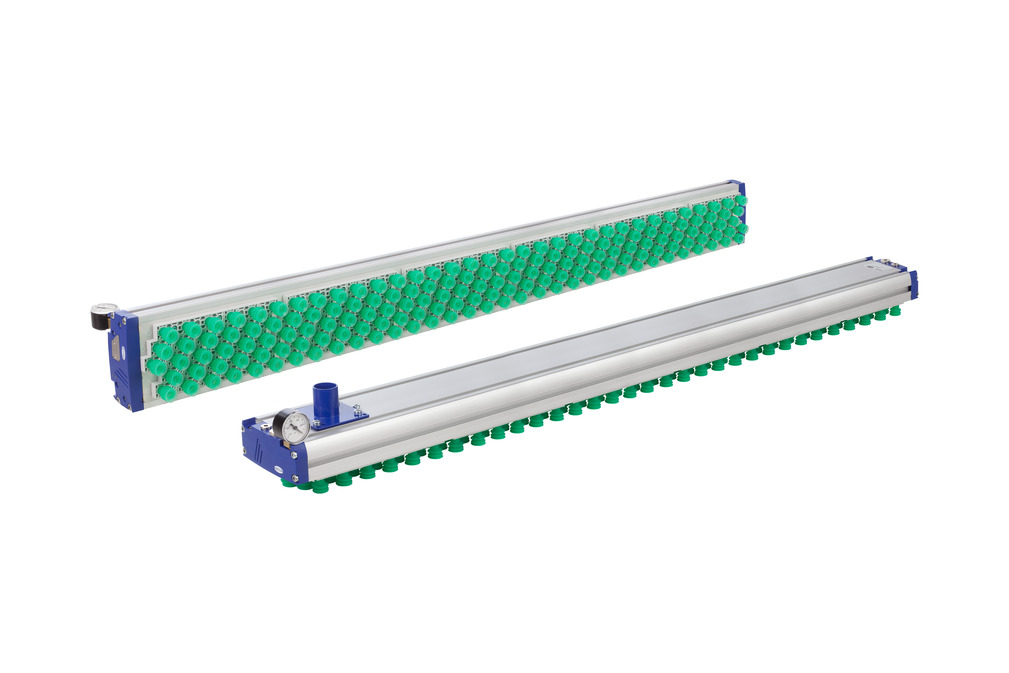

Vacuum area gripping system for external vacuum generator, with ball check valves

FMP-SVK 1234 5R36 SPB2-20P G60
Length L1,234 mm
Width B130 mm
Arrangement5R36
construction shape fittingsStraight
External diameter D60 mm
Weight6.4 kg
Product familyFMP
FMP-SVK 1234 5R36 SPB2-20P G60

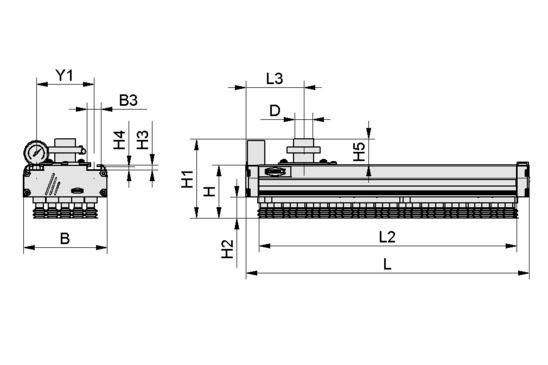

Attribute Value
B 130 mm
B3 21.60 mm
D 60 mm
H 82.70 mm
H1 128.20 mm
H2 33 mm
H3 7.70 mm
H4 5.50 mm
H5 46 mm
L 1234 mm
L2 1194 mm
L3 90 mm
Y1 90 mm
Valve type SVK


Note: Vacuum hose with internal diameter equal to dimension D required. See Technical Data -> Shape
Attribute Value
Arrangement 5R36
Number of suction cells 165
Suction force at -250 mbar 540 N
Weight 6.40 kg
Sealing element Suction Cups
Evacuation rate for pu = -0,25 bar 900 l/min
Product family FMP


Note: Air consumption: At 5.5 bar compressed air input pressure / Suction force: At a vacuum of -0.25 bar and full occupancy of the gripper with a workpiece typical for the application (wooden board with textured surface) / Required suction capacity: The external vacuum generator used must provide at least the specified suction volume (at the vacuum connection piece of the FMP) at a vacuum of -0.25 bar, but max. 135 % of the specified suction volume
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
EU declaration of incorporation
English
EU declaration of incorporation
Deutsch
EU declaration of incorporation
Español
EU declaration of incorporation
Français
EU declaration of incorporation
Italiano
EU declaration of incorporation
Polski
EU declaration of incorporation
Türkçe
EU declaration of incorporation
Pусский
EU declaration of incorporation
한국어
EU declaration of incorporation
Suomalainen
EU declaration of incorporation
Nederlands
EU declaration of incorporation
Česky
EU declaration of incorporation
Hrvatski
EU declaration of incorporation
Slovenščina
EU declaration of incorporation
Srpski
EU declaration of incorporation
Tiếng Việt
EU declaration of conformity
Česky
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English
EU declaration of incorporation
English English

Accessories

ABDK-PROF-10x7x1450-KU-SW-FXP-FMP
ABDK-PROF-10x7x1450-KU-SW-FXP-FMP
26.07.03.00002
Length L1,450 mm
Width B10 mm
Height H7 mm
MaterialPlastics
Measuring range bar
Construction useVacuum area gripping system FXP-FMP
EMVP 50 24V-DC 3/2 NO
EMVP 50 24V-DC 3/2 NO
10.05.02.00069
Nominal size50 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally open
Connecting threadG2"-F
Pressure range (operating pressure)-0.95 ... 0.00 bar
Nominal flow rate310 m³/h
Weight1.36 kg
FLAN-PL 120x85x10 ST FLGR
FLAN-PL 120x85x10 ST FLGR
10.01.10.05701
Length L120 mm
Width B85 mm
Height H10 mm
MaterialSteel
Construction useVacuum area gripping system
FLK G1/2-IG G1/2-AG
FLK G1/2-IG G1/2-AG
schmalz-select
10.01.03.00175
Thread G1G1/2"-F
Thread G2G1/2"-M
Operating temperature0 ... 70 °C
FST-FLEX 25 HD1 G1/2-AG G3/8-IG
FST-FLEX 25 HD1 G1/2-AG G3/8-IG
10.01.10.05697
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 25 HD2 G1/2-AG G3/8-IG
FST-FLEX 25 HD2 G1/2-AG G3/8-IG
10.01.10.05695
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 50 HD1 G1/2-AG G3/8-IG
FST-FLEX 50 HD1 G1/2-AG G3/8-IG
10.01.10.05687
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 50 HD2 G1/2-AG G3/8-IG
FST-FLEX 50 HD2 G1/2-AG G3/8-IG
10.01.10.05168
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 75 HD1 G1/2-AG G3/8-IG
FST-FLEX 75 HD1 G1/2-AG G3/8-IG
10.01.10.05698
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-FLEX 75 HD2 G1/2-AG G3/8-IG
FST-FLEX 75 HD2 G1/2-AG G3/8-IG
10.01.10.05696
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-STARR 25 HD1 G1/2-AG G3/8-IG
FST-STARR 25 HD1 G1/2-AG G3/8-IG
10.01.10.05810
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-STARR 25 HD2 G1/2-AG G3/8-IG
FST-STARR 25 HD2 G1/2-AG G3/8-IG
10.01.10.05806
Spring stroke Z25 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-STARR 50 HD1 G1/2-AG G3/8-IG
FST-STARR 50 HD1 G1/2-AG G3/8-IG
10.01.10.05809
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-STARR 50 HD2 G1/2-AG G3/8-IG
FST-STARR 50 HD2 G1/2-AG G3/8-IG
10.01.10.05805
Spring stroke Z50 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
FST-STARR 75 HD1 G1/2-AG G3/8-IG
FST-STARR 75 HD1 G1/2-AG G3/8-IG
10.01.10.05808
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 1 spring plunger
Construction useMounting section
Size90x90
FST-STARR 75 HD2 G1/2-AG G3/8-IG
FST-STARR 75 HD2 G1/2-AG G3/8-IG
10.01.10.05803
Spring stroke Z75 mm
Shape mounting elementsHeavy duty 2 spring plunger
Construction useMounting section
Size90x90
MOD-FLAN 120x120 FXP-FMP
MOD-FLAN 120x120 FXP-FMP
10.01.21.00244
Length L120 mm
Width B120 mm
Height H60 mm
Measuring range bar
Thread G1G1/2"-F
Weight1.1 kg
Construction useVacuum area gripping system FXP-FMP
SET fuer-Sensor(FXP/FMP)
SET fuer-Sensor(FXP/FMP)
10.01.38.01194
SET FXC-FMC
SET FXC-FMC
10.01.21.01291
Length L119 mm
Width B119 mm
Height H9.6 mm
Measuring range bar
Thread G1G1/2"-F
Construction useVacuum area gripping system FXC-FMC
SET FXP-FMP
SET FXP-FMP
10.01.21.02407
Length L232 mm
Width B119 mm
Height H119 mm
Measuring range bar
Weight1.3 kg
Construction useVacuum area gripping system FXP-FMP
SET FXP-FMP 4NUTSTEIN G20
SET FXP-FMP 4NUTSTEIN G20
10.01.21.00243
contains4 sliding blocks
Measuring range bar
Construction useVacuum area gripping system FXP-FMP
STF 60 P 4.5 SSD
STF 60 P 4.5 SSD
10.07.01.00259
ConnectionØ60mm
ShapePiclon housing
Nominal flow rate270 m³/h
Filter pore size3 µm
Additional functionHose clamps SSD
VAM 40 V U BAR
VAM 40 V U BAR
10.07.02.00046
Width B23 mm
Height H46 mm
External diameter D40 mm
Measuring range-1,00 ... 0,00 bar
Construction shape manometersConnection at bottom
Vacuum connectionG1/8"-M
Thread G1G1/8"-M
Weight0.06 kg
VENT-EINH 8/6 NC 24V-DC
VENT-EINH 8/6 NC 24V-DC
10.01.21.02405
ConnectionHose 8/6
Control valveNormally closed
Construction useVacuum area gripping system FXP-FMP
VSL 71-60 PU-DS-AS TR
VSL 71-60 PU-DS-AS TR
10.07.09.00034
External diameter D71 mm
Internal diameter d60 mm
Length max.20 m
Material hosePU, wire spiral, antistatic
Bending radius min.40 mm
Pressure range (operating pressure)-0.69 ... 2.09 bar
Operating temperature-40 ... 90 °C
VS-MONT 50x15.8x25 VS
VS-MONT 50x15.8x25 VS
10.06.02.00343
Length L50 mm
Width B15.8 mm
Height H25 mm
Measuring range bar
Construction useVacuum switch
VS-MONT 76.5x19 VSi FXP-FMP
VS-MONT 76.5x19 VSi FXP-FMP
10.01.38.02485
Length L76.5 mm
Width B19 mm
Add. functionVacuum and pressure switch VSi
Measuring range bar
Add. functionVacuum and pressure switch
Construction useVacuum area gripping system FXP-FMP
VTR-SL 3x RST60
VTR-SL 3x RST60
10.01.10.02779
Length L439 mm
Width B100 mm
Height H156 mm
ConnectionTube end Ø60
FLAN-PL 120x120x10 FXC-FMC
FLAN-PL 120x120x10 FXC-FMC
10.01.21.00313
Length L120 mm
Width B120 mm
Height H10 mm
Measuring range bar
Construction useVacuum area gripping system FXC-FMC
FLK G1/2-IG G1/2-AG V
FLK G1/2-IG G1/2-AG V
schmalz-select
10.01.03.00207
Thread G1G1/2"-F
Thread G2G1/2"-M
Operating temperature0 ... 70 °C
Shape mounting elementsreinforced
SCHL-AN W 60-79x79x45 FMP
SCHL-AN W 60-79x79x45 FMP
10.01.38.00300
Length L79 mm
Width B79 mm
Height H45 mm
Hole spacing X162 mm
Hole spacing Y150 mm
External diameter D60 mm
Construction useVacuum area gripping system FMP
SCHL-AN 60-79x79x45 FMP
SCHL-AN 60-79x79x45 FMP
10.01.38.00301
Length L79 mm
Width B79 mm
Height H45 mm
Hole spacing X162 mm
Hole spacing Y150 mm
External diameter D60 mm
Construction useVacuum area gripping system FMP
VRS-PL 79x79x12 SPZ G2-IG
VRS-PL 79x79x12 SPZ G2-IG
10.01.21.01280
Length L79 mm
Width B79 mm
Height H12 mm
Thread G1G2"-F
Construction useSchmalz palletizer

Ordering information: FMP-SVK 1234 5R36 SPB2-20P G60

  • Integrated control valves at FMP-S (optional)
  • Control of vacuum on/off (24V DC, normally open) and blow off on/off (24V DC, normally closed), as well as hose accumulator preload and blower ventilation function with version FMP-S
  • Integrated in the end cover
  • Electrical connection: M12 plug (4-pole)



Available spare parts: sealing foam (DI-PL), suction cup (SPB2)
