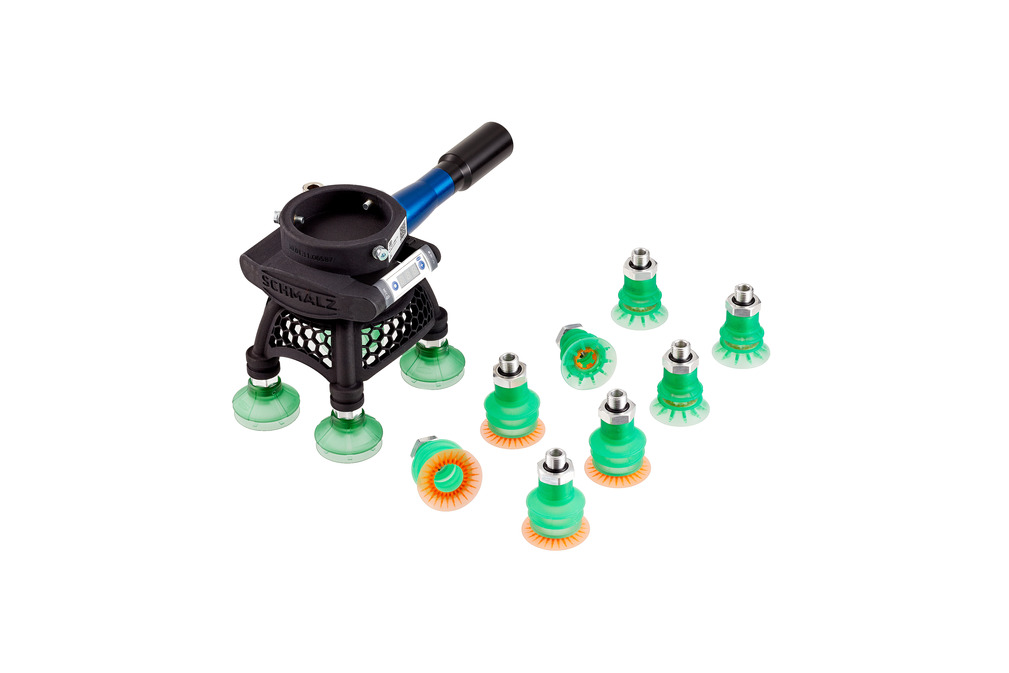

SLG 141x111 X BALG 4

Part no.: 10.01.11.06583

Ready-to-connect 3D printed lightweight gripper for customer- specific applications

SLG 141x111 X BALG 4
ShapeIntegrated vacuum generation
Length L141 mm
Width B111 mm
Suct. cupsBellows suction cups
Number of suction cells4
Number of ejectors1
SLG 141x111 X BALG 4

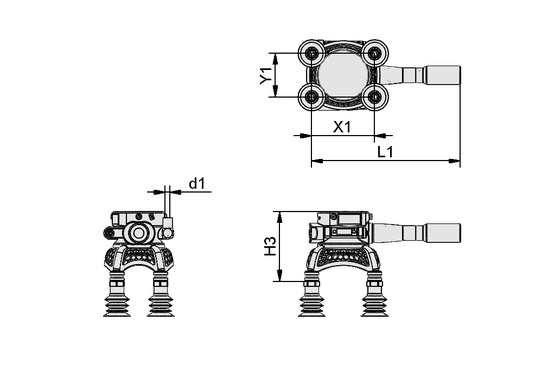

Attribute Value
B 111 mm
d1 8 mm
H3 109 mm
L 141 mm
L1 232 mm
X1 98 mm
Y1 68 mm
The matching documentation for this product is available in this section.

Documents

Language

EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

EU declaration of conformity
English English
Operating instructions
English English

Spare parts

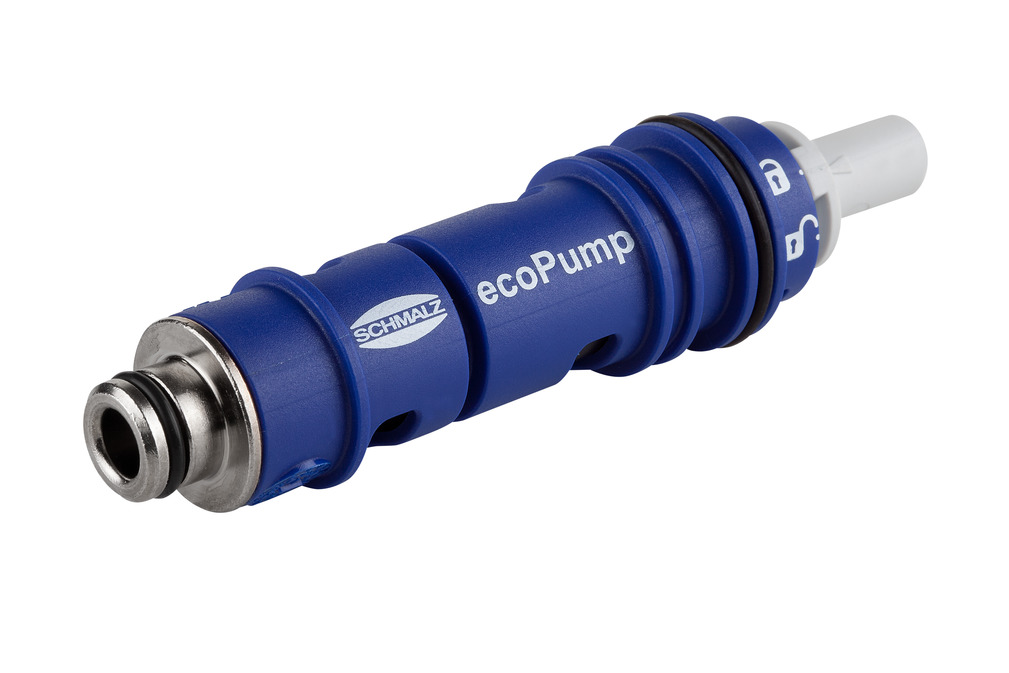

SEP HF 2 13 22
Efficient
SEP HF 2 13 22
10.02.01.01347
ShapeHigh flow
Number of stages2
Nozzle size1.3 mm
Hole diameter22 mm
Degree of evacuation61 %
Pressure range (operating pressure)2.0 ... 6.0 bar
Pressure optimal4 bar
Suction rate (max.)175.3 l/min
Air consumption suction74 l/min

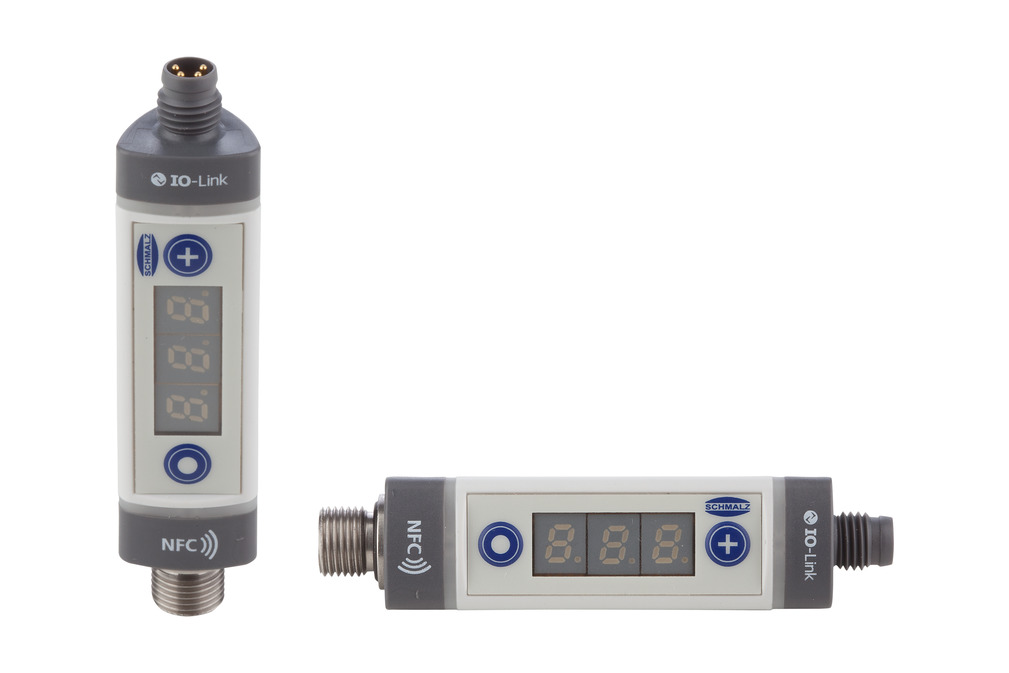

VSi V D M8-4
VSi V D M8-4
schmalz-select schmalz-connect
10.06.02.00577
Measuring range-1,0 ... 0,0 bar
Construction shape vacuum switchwith display
Electrical connectionMale connect M8, 4 pole
Indication2xLED
Protection type IPIP 65

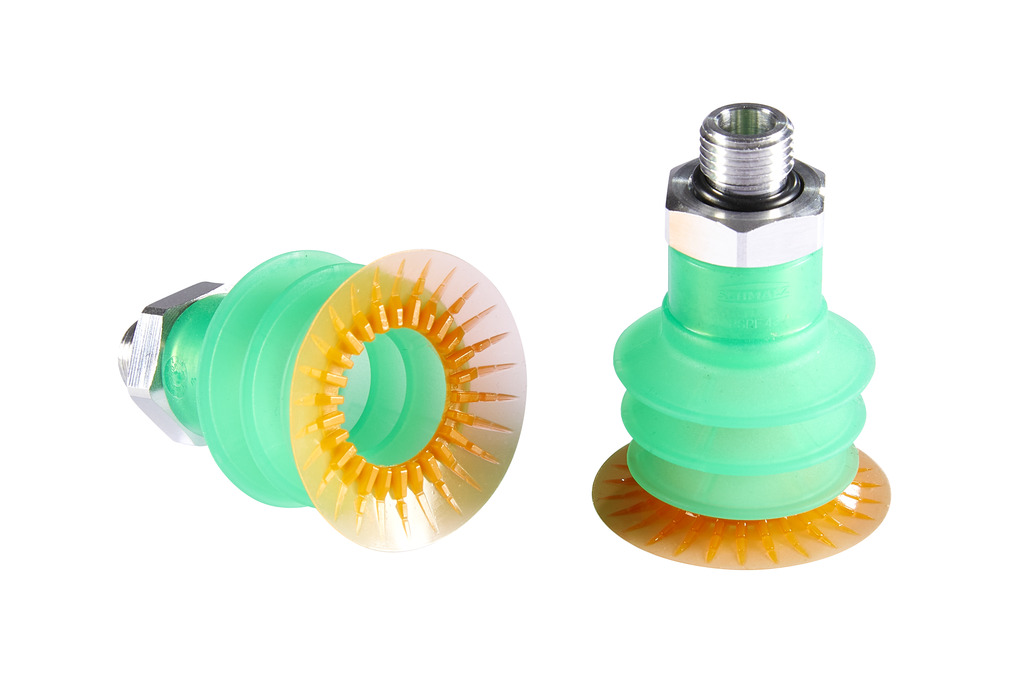

PSPF 43 SI-30/55 G1/4-AG
PSPF 43 SI-30/55 G1/4-AG
10.01.06.05597
Size43
Suction cup materialSilicone SI
Material hardness [Shore A]30 Shore A
Material hardness55 Shore A
Vacuum connectionG1/4"-M
Number of folds3.5
SPB1 40 ED-65 G1/4-AG
SPB1 40 ED-65 G1/4-AG
schmalz-select
10.01.06.03498
Size40
Suction cup materialElastodur ED
Material hardness [Shore A]65 Shore A
Thread G1G1/4"-M
Number of folds1.5

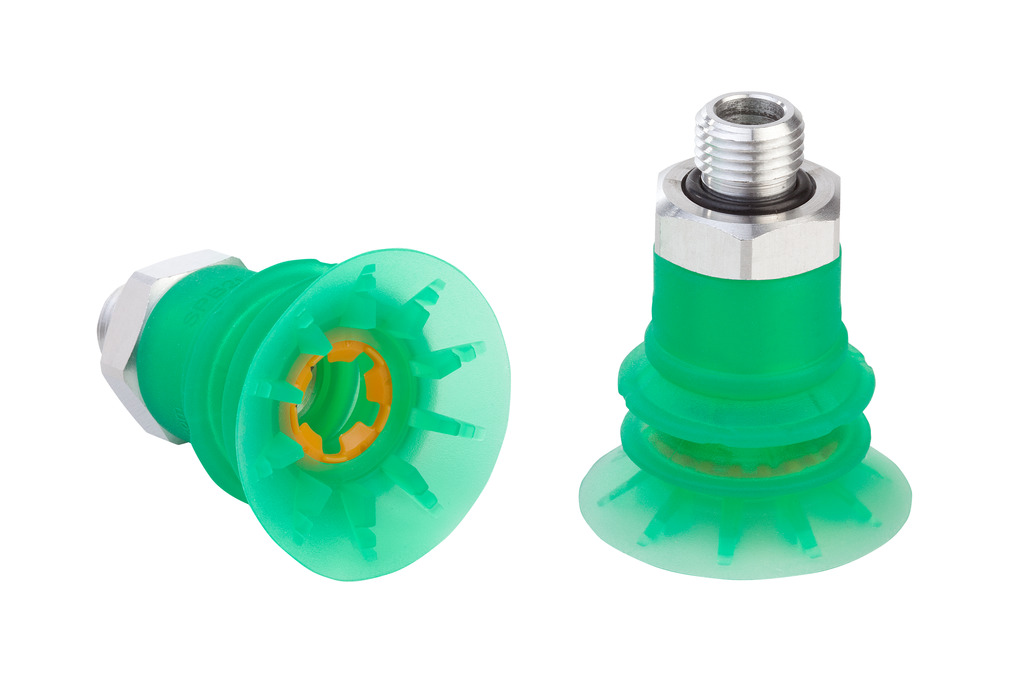

SPB2f 40 SI-55 G1/4-AG
SPB2f 40 SI-55 G1/4-AG
10.01.06.03648
Size40
Suction cup materialSilicone SI
Material hardness [Shore A]55 Shore A
Thread G1G1/4"-M
Number of folds2.5

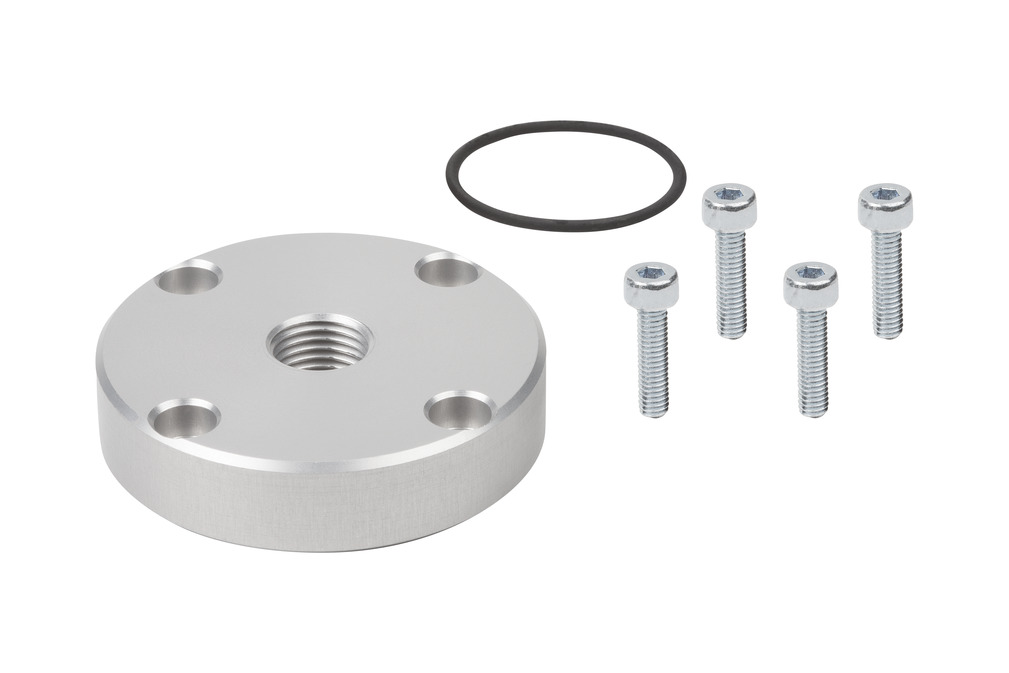

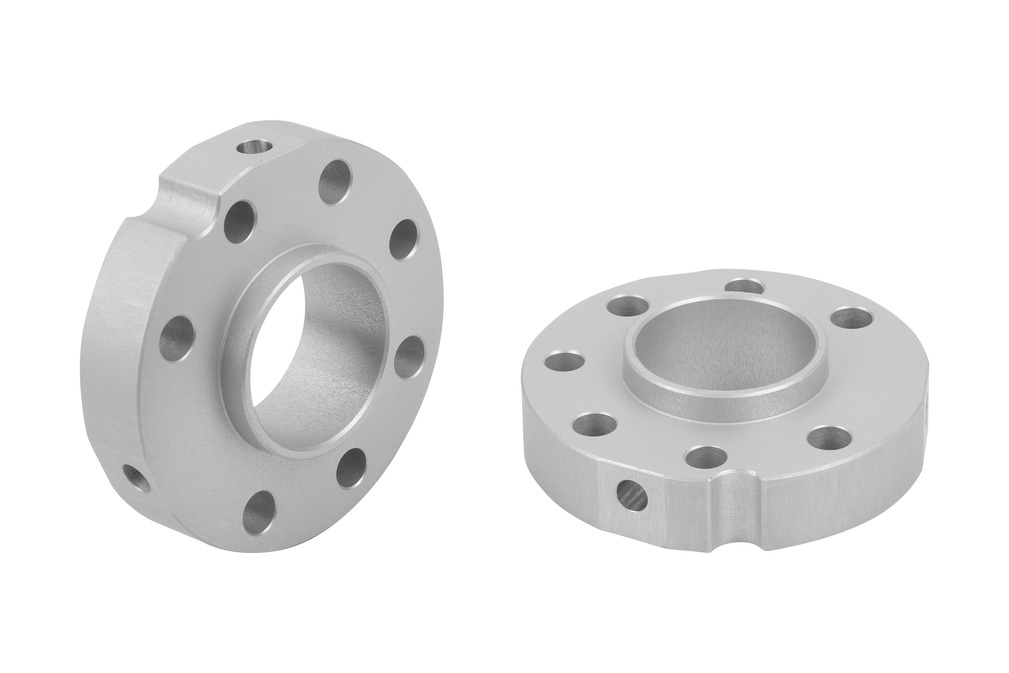

Ordering information: SLG 141x111 X BALG 4

The lightweight gripping system SLG is delivered as a ready-to-connect product.
