Vacuum Blocks VCBL-S1

  • Hose-free Schmalz clamping system for console tables from SCM / Morbidelli, fully compatible with original equipment
  • The vacuum blocks are mechanically pre-fixed via the console
  • The integrated touch valve allows unused vacuum blocks to remain on the machine table
  • TV system from SCM = S1 system from Schmalz (width of console 72.5 mm)
  • TVS system from SCM = S1 system from Schmalz with hose connection (width of console 72.5 mm)
Note - SCM/Morbidelli

SCM / Morbidelli is a registered and protected trademark. The articles listed here are products of J. Schmalz GmbH that have been designed to fit CNC machining centers from SCM / Morbidelli.
Product Highlights
  • Highest holding forces in wood applications thanks to optimized seals and friction pads
  • Highest dimensional accuracy for more precision in the production process
  • Wide range of products offers maximum flexibility and enables short set-up times
  • Suction plates can be replaced quickly, easily and economically without tools
Vacuum Blocks VCBL-S1
  • Top suction plate (1) for fixing the workpiece
  • Robust main body (2) made of plastic
  • Dovetail mount (3) for mechanical pre-fixation on SCM / Morbidelli consoles
  • Sealing frame (4) optimized for easy sliding of the vacuum block on the console
  • Touch valve (5) for activating the vacuum
  • For SCM TV and TVS consoles (old design) with 72.5 mm console width
  • Integrated touch valve
  • With mechanical pre-fixation
The matching documentation for this product is available in this section.

Documents

Language

Product family overview
English
Product family overview
Deutsch
Product family overview
Español
Product family overview
Français
Product family overview
Italiano
Product family overview
Polski
Product family overview
Türkçe
Product family overview
Pусский
Product family overview
日本語
Product family overview
中國
Product family overview
한국어
Product family overview
Suomalainen
Product family overview
Nederlands
Product family overview
Česky
Product family overview
Hrvatski
Product family overview
Slovenščina
Product family overview
Srpski
Product family overview
Tiếng Việt

Filter by

Height H [mm]
-

Results 1 to 10 of 16 items

VCBL-S1 140x115x32.7 D-360 TV

VCBL-S1 140x115x32.7 D-360 TV

Part no.: 10.01.12.01299
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)140 x 115
Length L140 mm
Width B115 mm
Height H32.7 mm
ArrangementCan be turned 360°
Add. functionTouch valve
Dimensions (LxB)140 x 115
Length L140 mm
Width B115 mm
Height H32.7 mm
ArrangementCan be turned 360°
Add. functionTouch valve

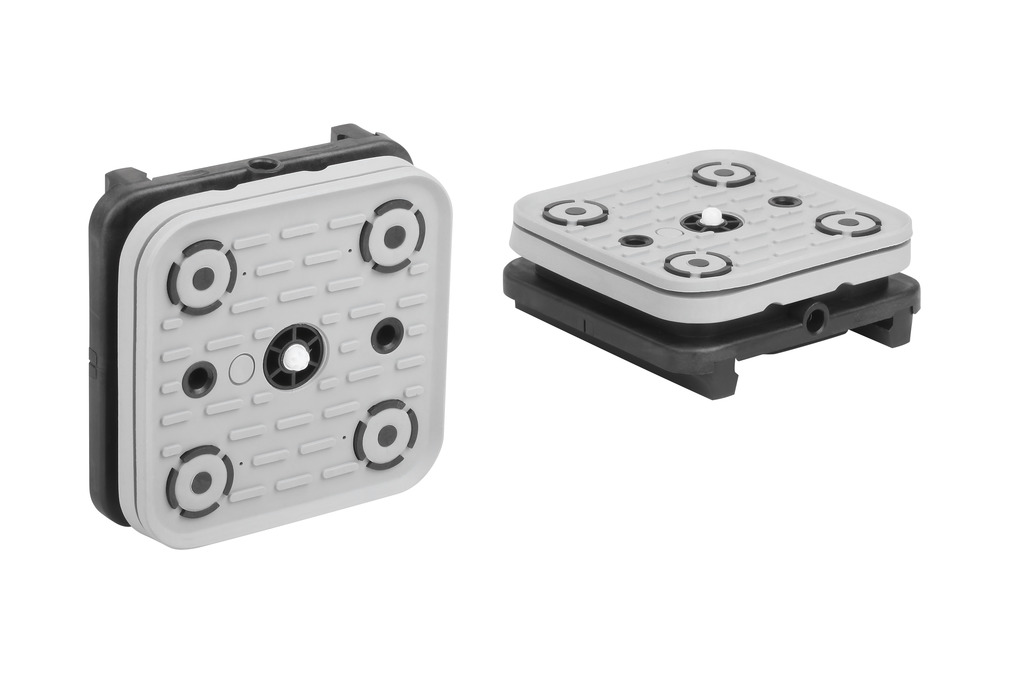

VCBL-S1 120x120x32.7 TV

VCBL-S1 120x120x32.7 TV

Part no.: 10.01.12.02317
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)120 x 120
Length L120 mm
Width B120 mm
Height H32.7 mm
Add. functionTouch valve
Dimensions (LxB)120 x 120
Length L120 mm
Width B120 mm
Height H32.7 mm
Add. functionTouch valve

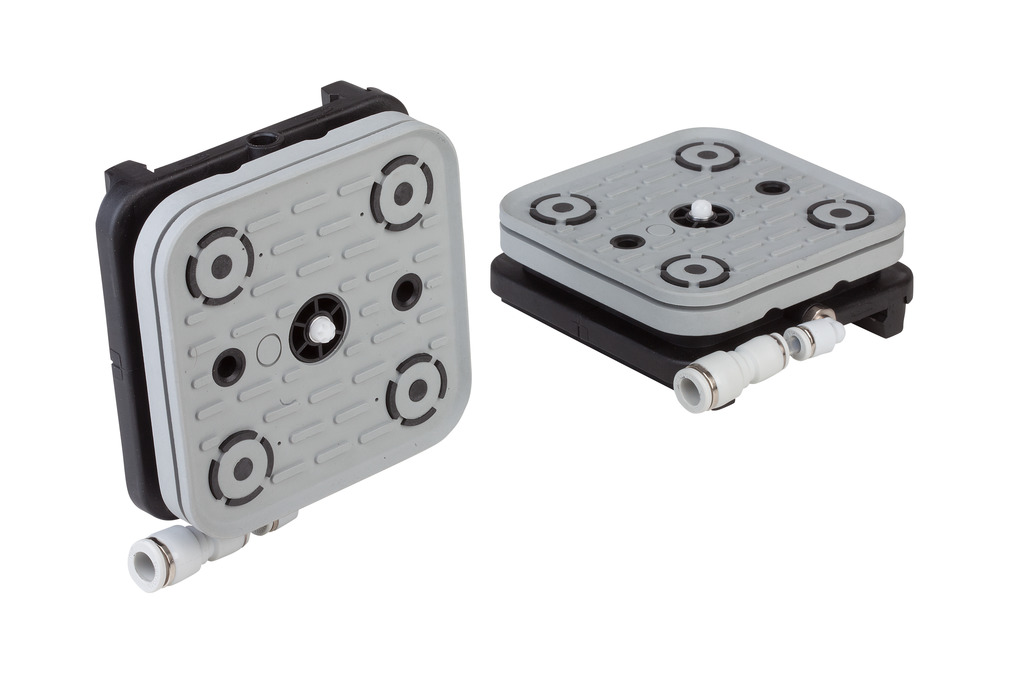

VCBL-S1 120x120x32.7 TV-S

VCBL-S1 120x120x32.7 TV-S

Part no.: 10.01.12.02386
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)120 x 120
Length L120 mm
Width B120 mm
Height H32.7 mm
Add. functionTouch valve + hose connection
Dimensions (LxB)120 x 120
Length L120 mm
Width B120 mm
Height H32.7 mm
Add. functionTouch valve + hose connection

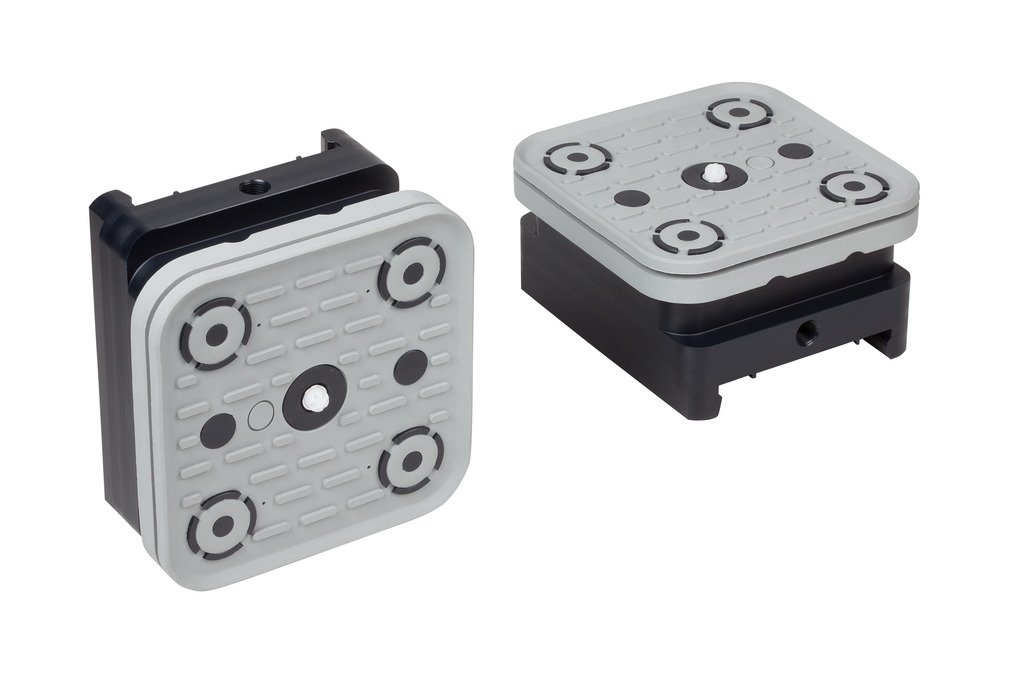

VCBL-S1 120x120x50 TV

VCBL-S1 120x120x50 TV

Part no.: 10.01.12.02969
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)120 x 120
Length L120 mm
Width B120 mm
Height H50 mm
Add. functionTouch valve
Dimensions (LxB)120 x 120
Length L120 mm
Width B120 mm
Height H50 mm
Add. functionTouch valve

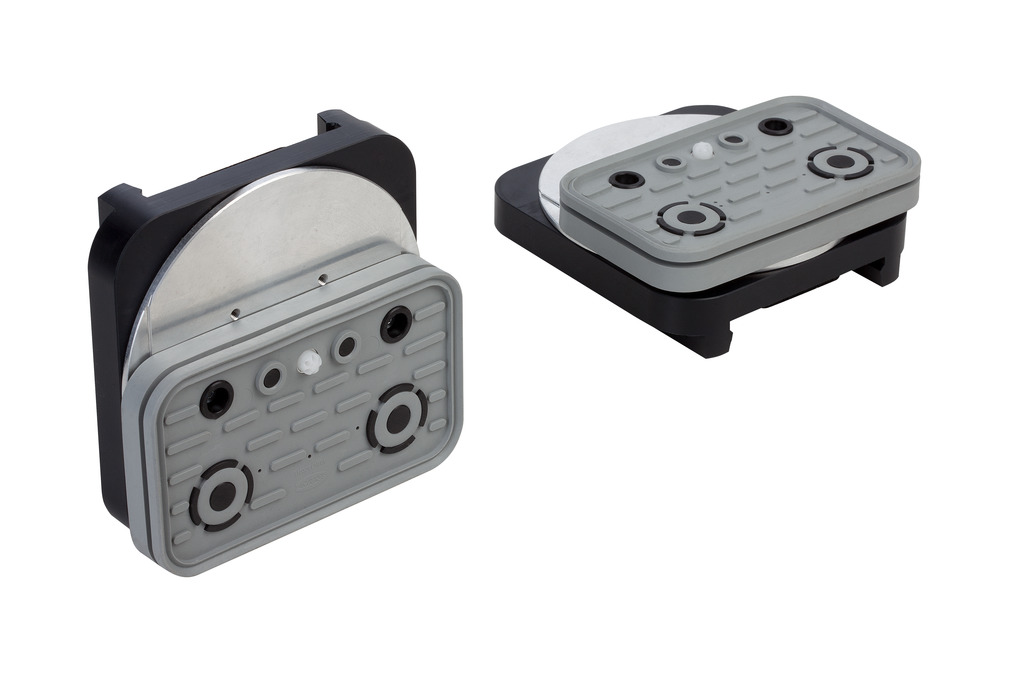

VCBL-S1 125x75x32.7 D-360 TV

VCBL-S1 125x75x32.7 D-360 TV

Part no.: 10.01.12.01302
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H32.7 mm
ArrangementCan be turned 360°
Add. functionTouch valve
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H32.7 mm
ArrangementCan be turned 360°
Add. functionTouch valve

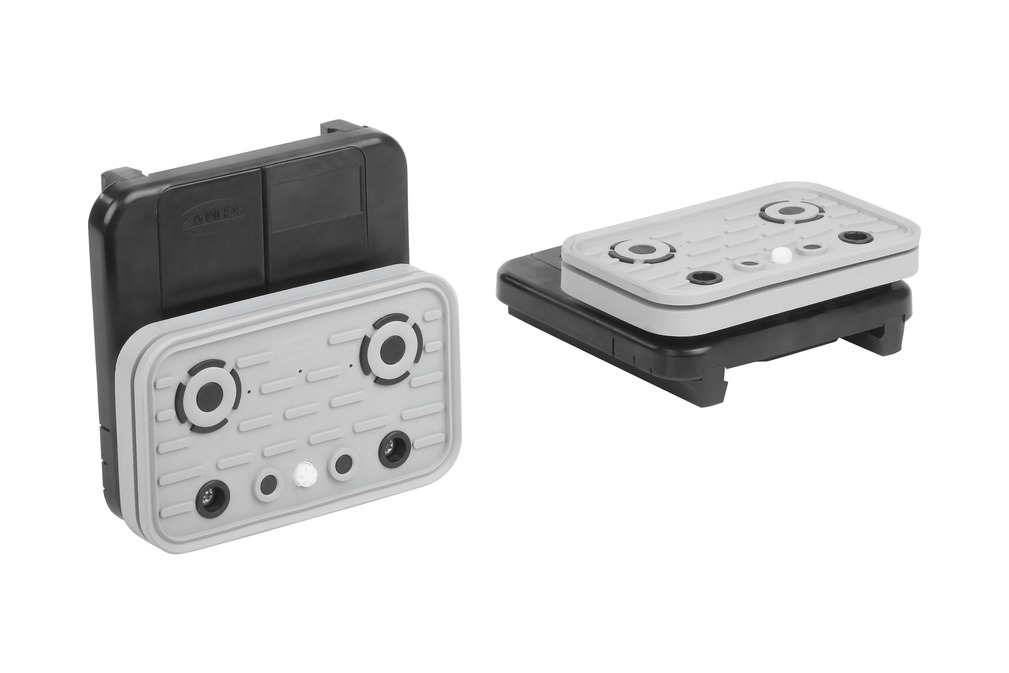

VCBL-S1 125x75x32.7 TV

VCBL-S1 125x75x32.7 TV

Part no.: 10.01.12.02318
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H32.7 mm
Add. functionTouch valve
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H32.7 mm
Add. functionTouch valve

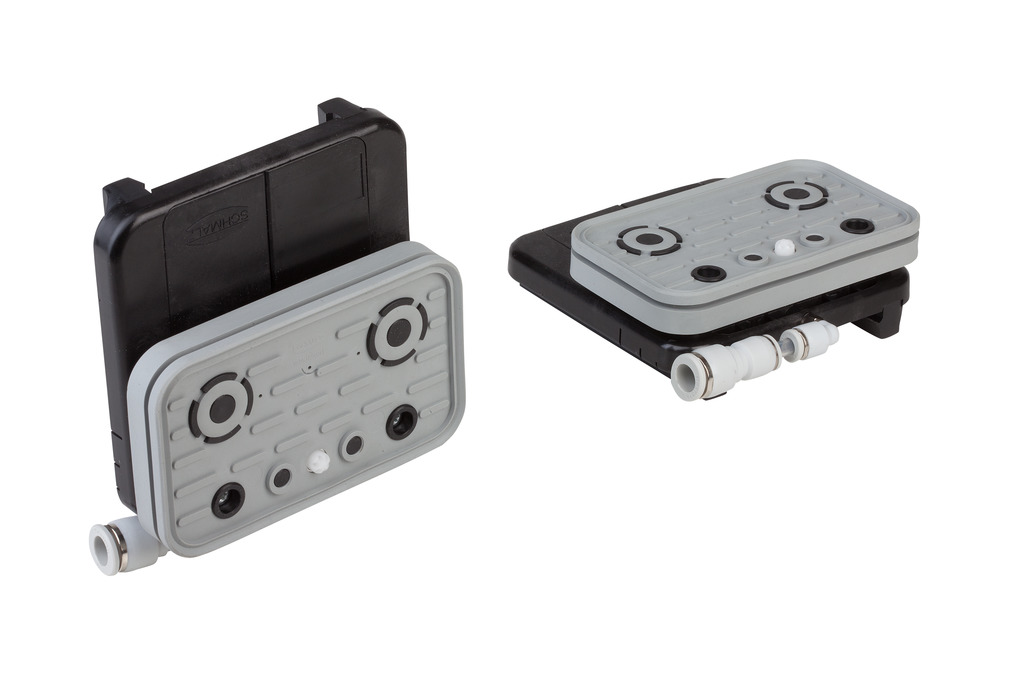

VCBL-S1 125x75x32.7 TV-S

VCBL-S1 125x75x32.7 TV-S

Part no.: 10.01.12.02387
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H32.7 mm
Add. functionTouch valve + hose connection
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H32.7 mm
Add. functionTouch valve + hose connection
VCBL-S1 125x75x50 TV

VCBL-S1 125x75x50 TV

Part no.: 10.01.12.03495
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H50 mm
Add. functionTouch valve
Dimensions (LxB)125 x 75
Length L125 mm
Width B75 mm
Height H50 mm
Add. functionTouch valve

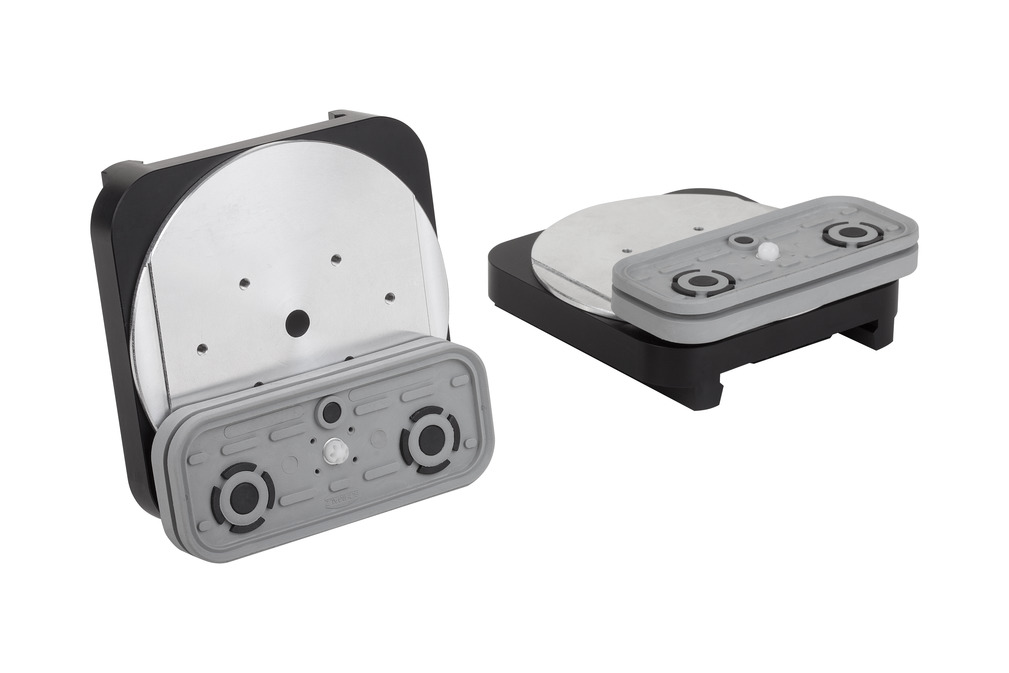

VCBL-S1 120x50x32.7 D-360 TV

VCBL-S1 120x50x32.7 D-360 TV

Part no.: 10.01.12.01301
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)120 x 50
Length L120 mm
Width B50 mm
Height H32.7 mm
ArrangementCan be turned 360°
Add. functionTouch valve
Dimensions (LxB)120 x 50
Length L120 mm
Width B50 mm
Height H32.7 mm
ArrangementCan be turned 360°
Add. functionTouch valve
VCBL-S1 120x50x32.7 TV

VCBL-S1 120x50x32.7 TV

Part no.: 10.01.12.02319
Vacuum block for SCM/Morbidelli console - Type 1
Dimensions (LxB)120 x 50
Length L120 mm
Width B50 mm
Height H32.7 mm
Add. functionTouch valve
Dimensions (LxB)120 x 50
Length L120 mm
Width B50 mm
Height H32.7 mm
Add. functionTouch valve
