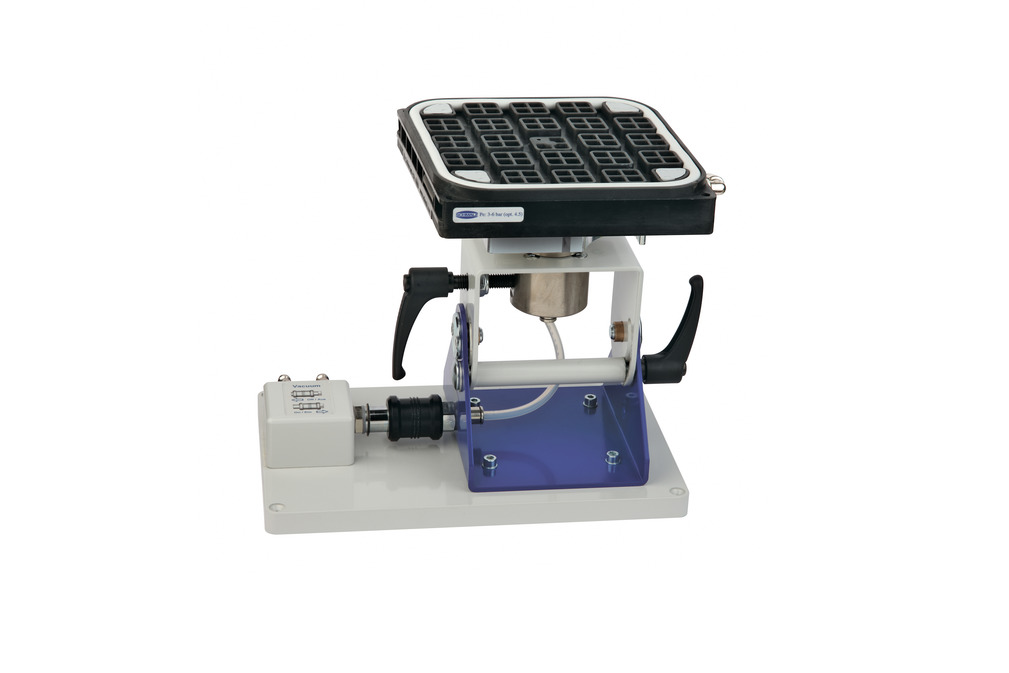

Multi-Clamp System VC-M / VC-M-V

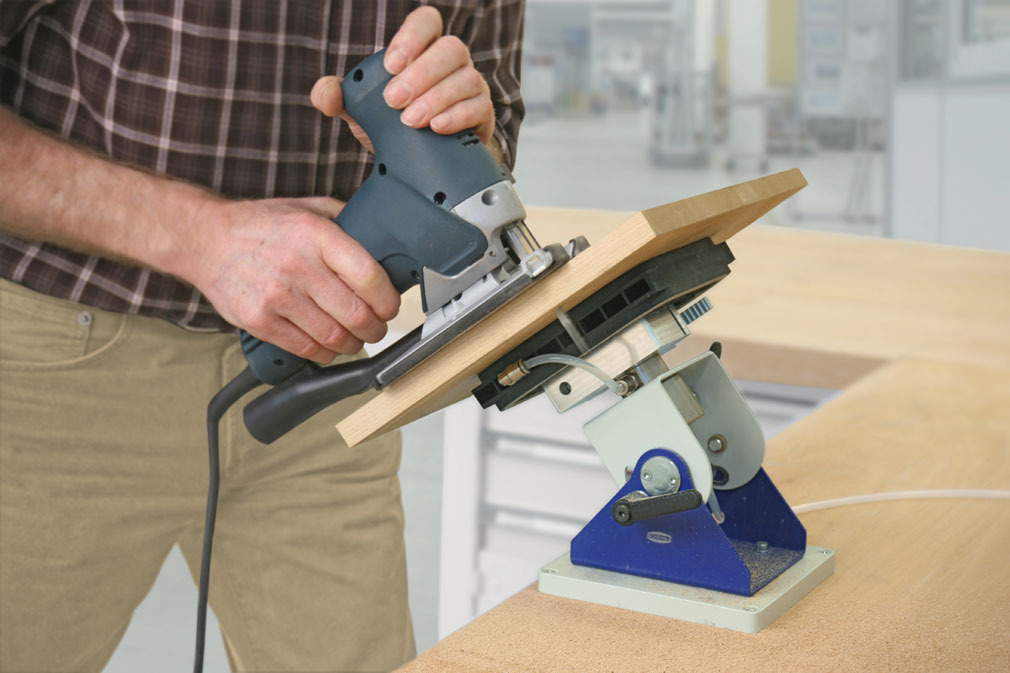

  • Effortless clamping of small and medium sized workpieces
  • Processing of workpieces from all sides with a continuous rotate and pivot function
  • Version VC-M with integrated vacuum generation through the Ventauri principle can be operated on any conventional compressed air supply
  • Version VC-M-V with connection for external vacuum pump for independent use at any location
  • VC-M-V can be fixed to the table by vacuum, VC-M is fixed mechanically
Product Highlights
  • More gentle on the workpiece than conventional clamping systems thanks to soft friction and sealing materials
  • Integrated vacuum generation in version VC-M makes additional vacuum pump unnecessary
  • Flexible 5-sided machining, as Multi-Base can be rotated continuously (360°) and swivelled (90°)
  • Cost-effective stand-alone clamping solution, as the Multi-Clamp suction plate can also be used individually
Multi-Clamp System VC-M / VC-M-V

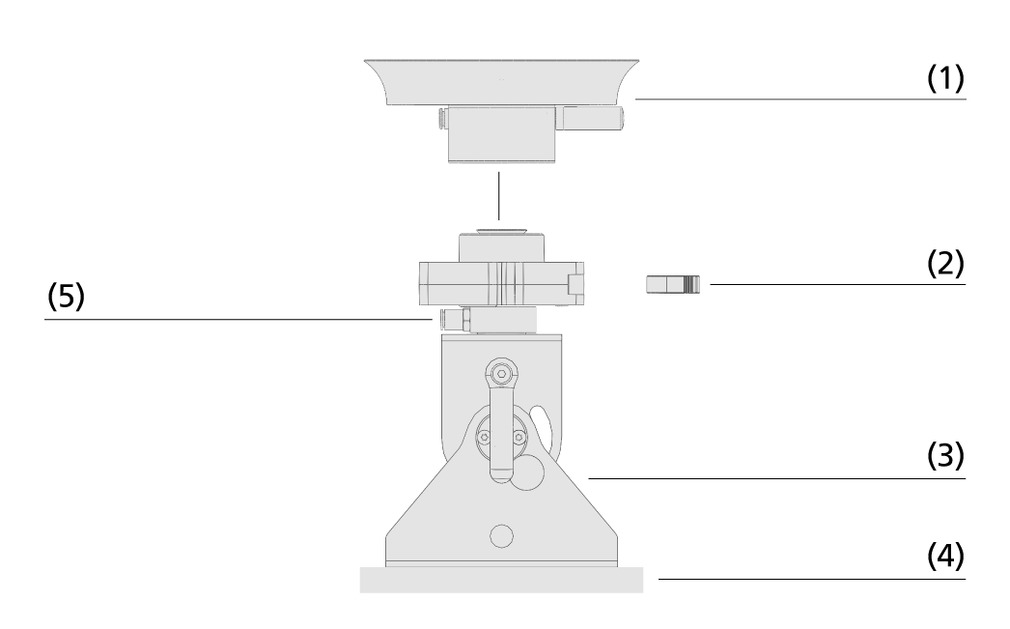

  • Suction plate (1) can be freely rotated by 360° and continuously swiveled up to 90°, allowing for flexible work from any angle
  • Different suction plates are available to suit the application
  • Clamping lever (2) for quickly changing the Multi-Clamp suction plate
  • Stable main body (3) made of metal
  • Fixation on the worktable (4) possible mechanically or via vacuum
  • Vacuum generation (5) optionally integrated via compressed air or via external vacuum pump
  • System consists of suction plate and rotation/swiveling unit Multi-Base
  • Internal or external vacuum supply possible
The matching documentation for this product is available in this section.

Documents

Language

Product family overview
English
Product family overview
Deutsch
Product family overview
Español
Product family overview
Français
Product family overview
Italiano
Product family overview
Polski
Product family overview
Türkçe
Product family overview
Pусский
Product family overview
日本語
Product family overview
中國
Product family overview
한국어
Product family overview
Suomalainen
Product family overview
Nederlands
Product family overview
Česky
Product family overview
Hrvatski
Product family overview
Slovenščina
Product family overview
Srpski
Product family overview
Tiếng Việt

Filter by

Select / Connect

Results 1 to 10 of 10 items

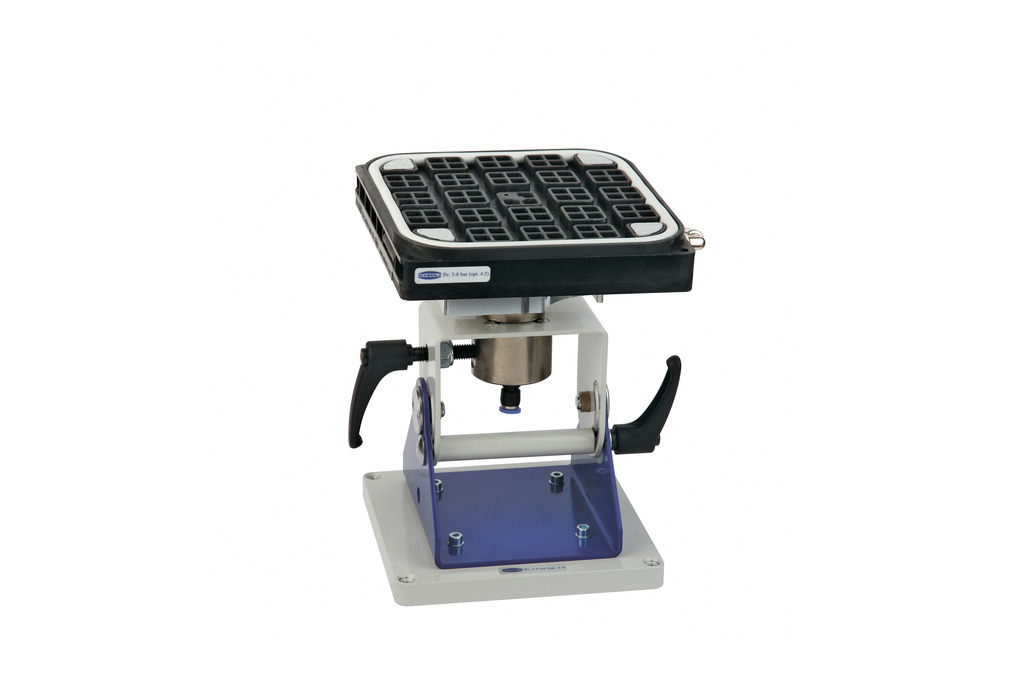

VC-M 165x165x220.5
Schmalz Select

VC-M 165x165x220.5

Part no.: 10.01.12.01845
Vacuum clamping system Multi-Clamp with integratet vacuum generation
Schmalz Select
Length L165 mm
Width B165 mm
Height H220.5 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h
Length L165 mm
Width B165 mm
Height H220.5 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h

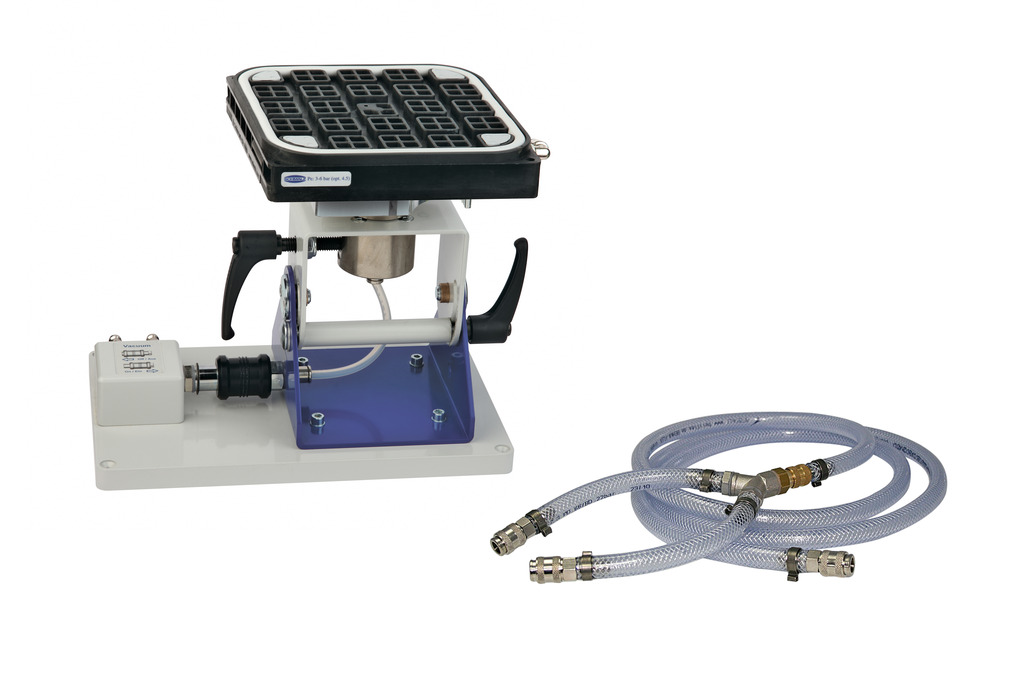

VC-M-V 265x170x220.5

VC-M-V 265x170x220.5

Part no.: 10.01.12.01852
Vacuum clamping system Multi-Clamp for operation with a vacuum pump
Length L265 mm
Width B170 mm
Height H220.5 mm
Suction rate3 m³/h
Length L265 mm
Width B170 mm
Height H220.5 mm
Suction rate3 m³/h

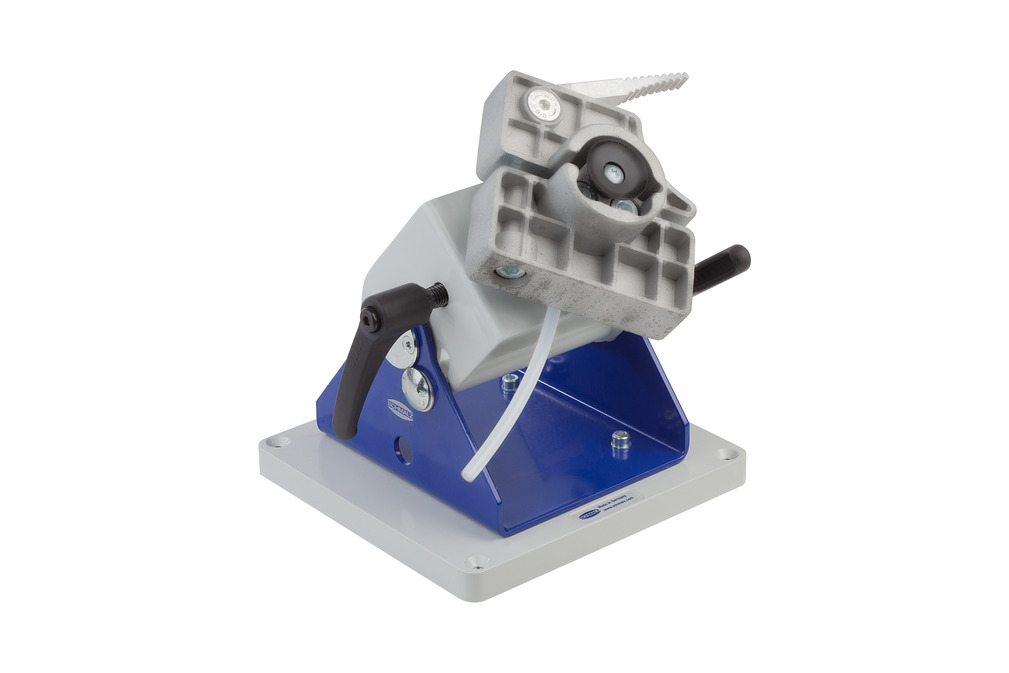

VC-M-B 170x165x209

VC-M-B 170x165x209

Part no.: 10.01.12.01854
Turning and slewing device Base
Length L170 mm
Width B165 mm
Height H209 mm
Length L170 mm
Width B165 mm
Height H209 mm

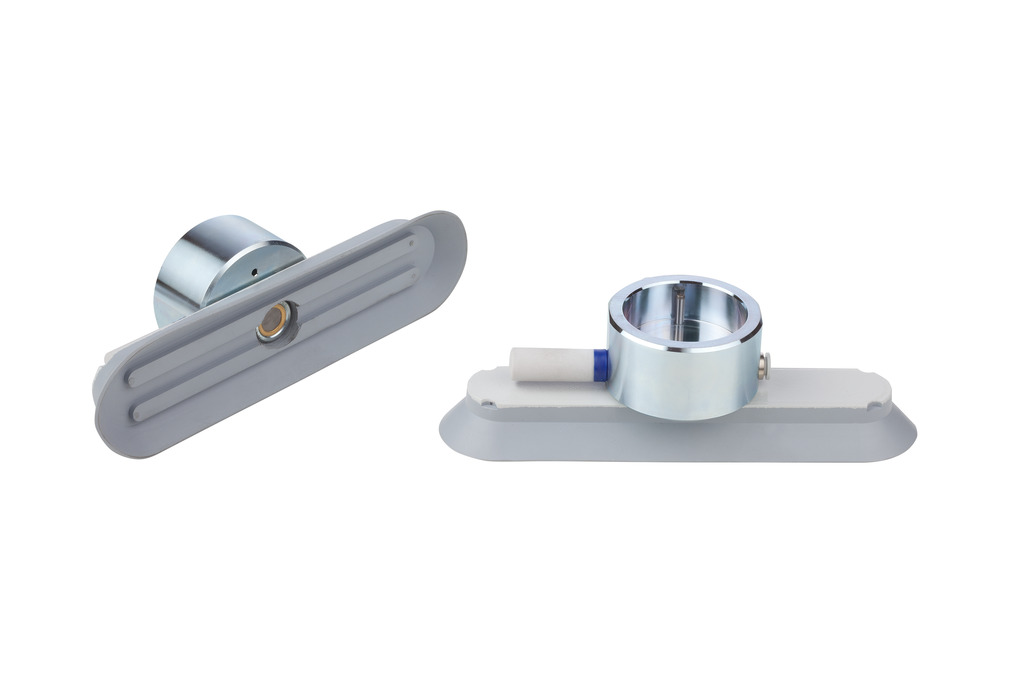

VC-M-SP 200x55

VC-M-SP 200x55

Part no.: 10.01.12.02003
Multi-Clamp - Suction plate with integrated vacuum generation
Length L200 mm
Width B55 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h
Length L200 mm
Width B55 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h

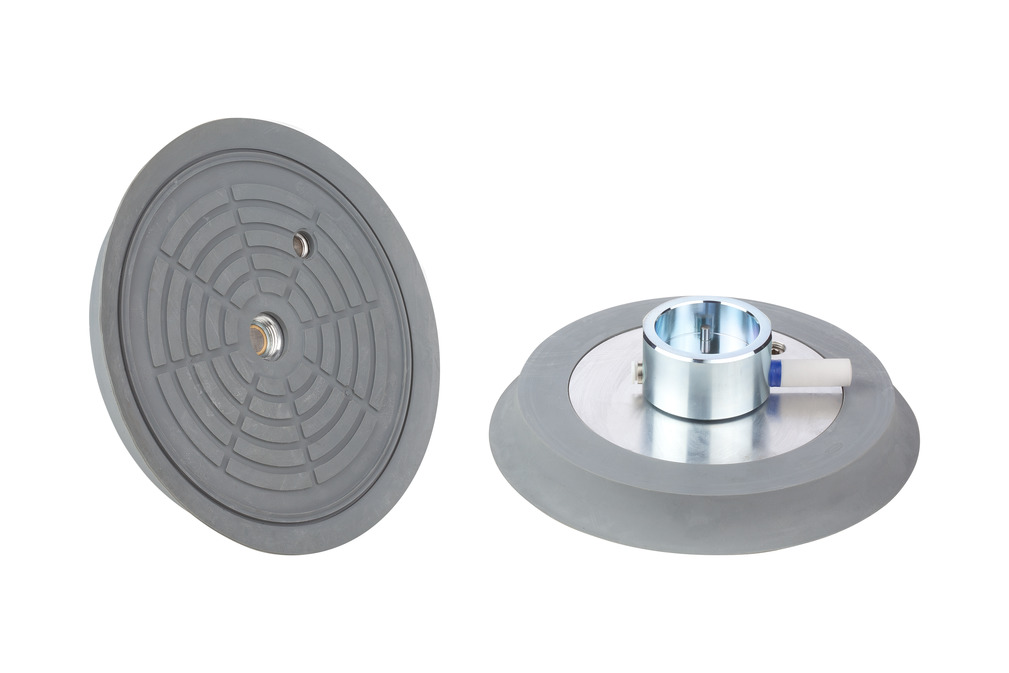

VC-M-SP 210

VC-M-SP 210

Part no.: 10.01.12.02002
Multi-Clamp - Suction plate with integrated vacuum generation
External diameter D210 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h
External diameter D210 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h
VC-M-SP 300x100

VC-M-SP 300x100

Part no.: 10.01.12.02052
Multi-Clamp - Suction plate with integrated vacuum generation
Length L300 mm
Width B100 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h
Length L300 mm
Width B100 mm
Air consumption48 l/min
Air consumption2.88 m³/h
Suction rate2.3 m³/h

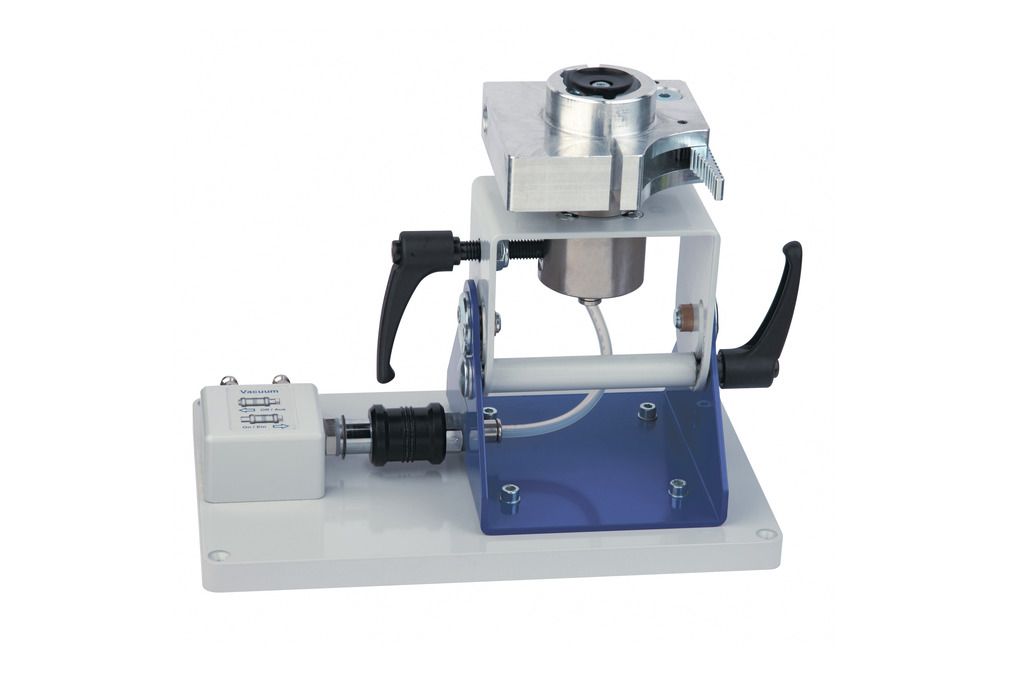

VC-M-BV 265x170x209

VC-M-BV 265x170x209

Part no.: 10.01.12.02050
Turning and slewing device Base
Length L265 mm
Width B170 mm
Height H209 mm
Length L265 mm
Width B170 mm
Height H209 mm

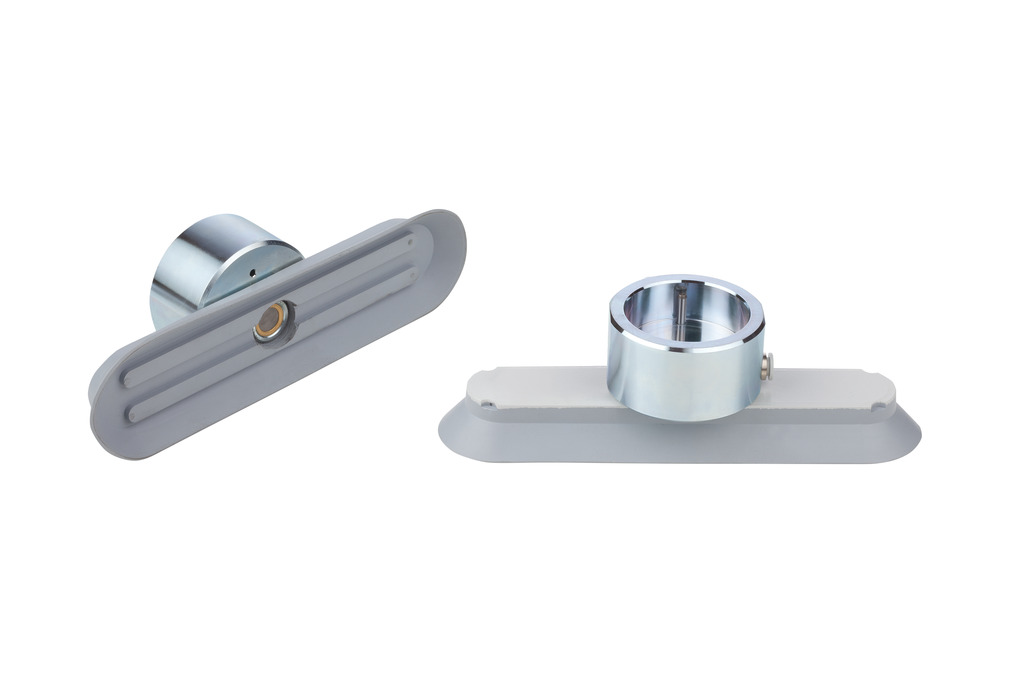

VC-M-SPV 200x55

VC-M-SPV 200x55

Part no.: 10.01.12.02009
Multi-Clamp - Suction plate for operation with vacuum pump
Length L200 mm
Width B55 mm
Length L200 mm
Width B55 mm

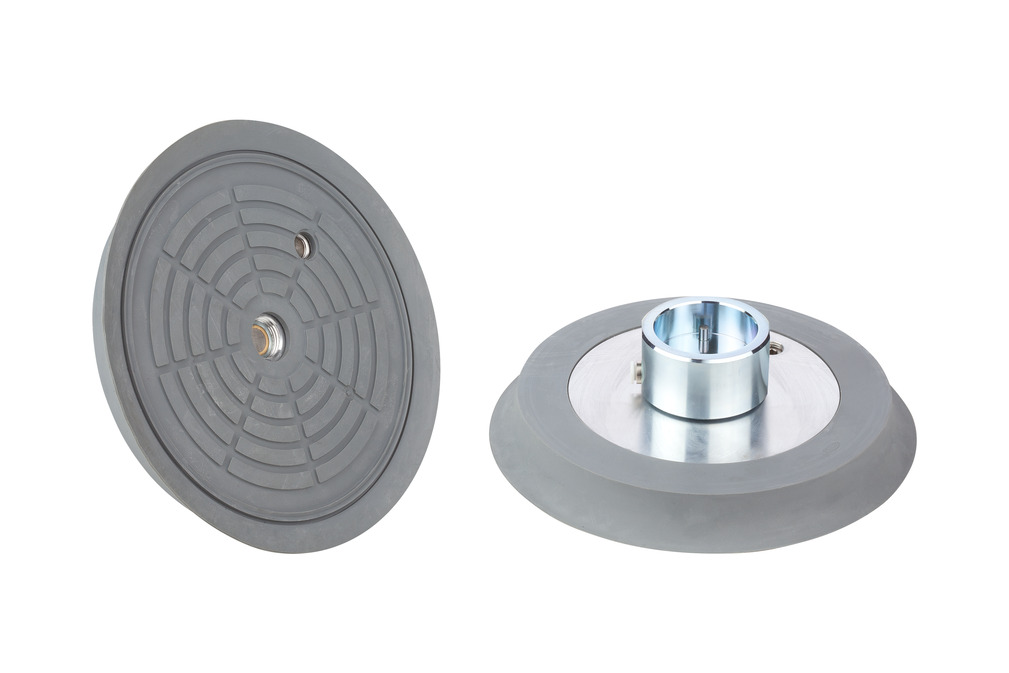

VC-M-SPV 210

VC-M-SPV 210

Part no.: 10.01.12.02008
Multi-Clamp - Suction plate for operation with vacuum pump
External diameter D210 mm
External diameter D210 mm

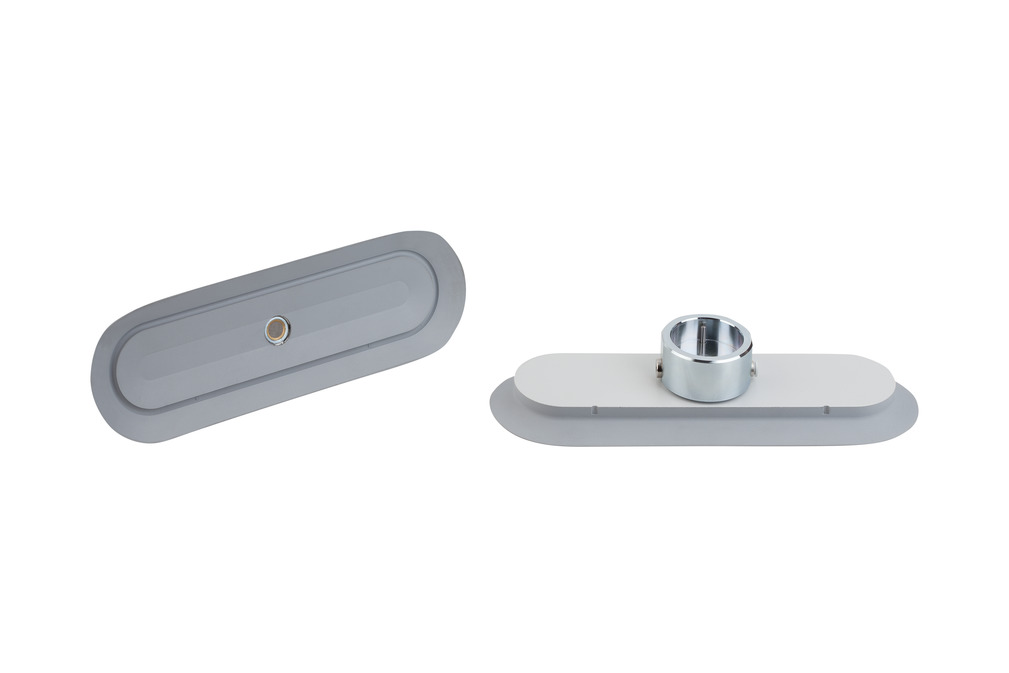

VC-M-SPV 300x100

VC-M-SPV 300x100

Part no.: 10.01.12.02053
Multi-Clamp - Suction plate for operation with vacuum pump
Length L300 mm
Width B100 mm
Length L300 mm
Width B100 mm
