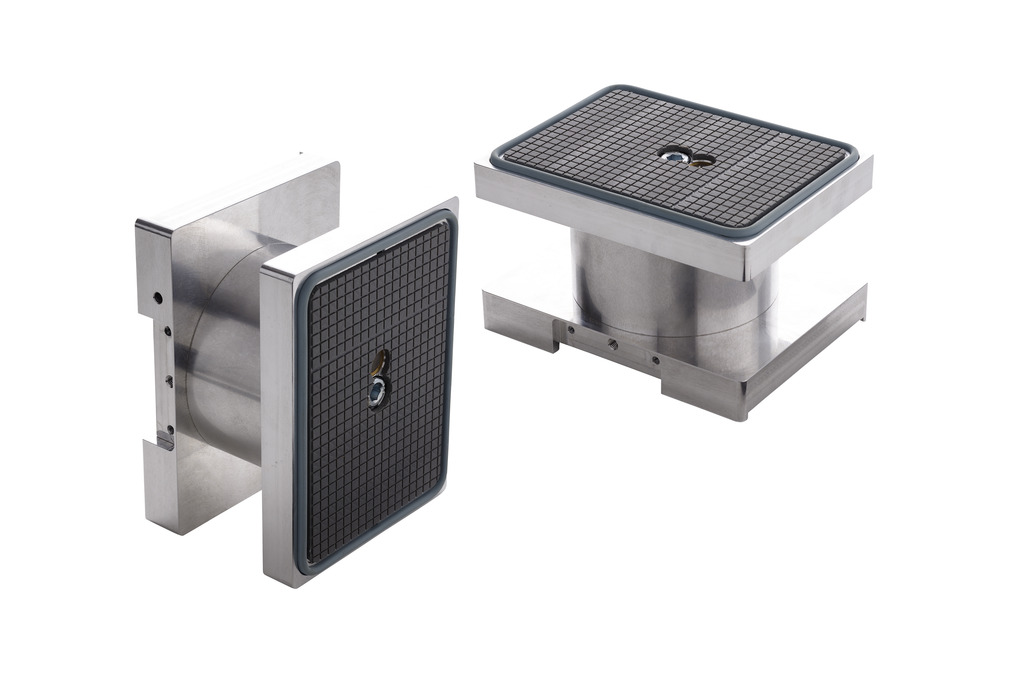

VCBL-K2-HD 170x128x125 S-360-15

Part no.: 10.01.12.05320

Vacuum block for Schmalz 2-circuit console

VCBL-K2-HD 170x128x125 S-360-15
ShapeHeavy duty
Dimensions (LxB)170x128
Height H125 mm
Arrangementinsertable 360°/15°
VCBL-K2-HD 170x128x125 S-360-15

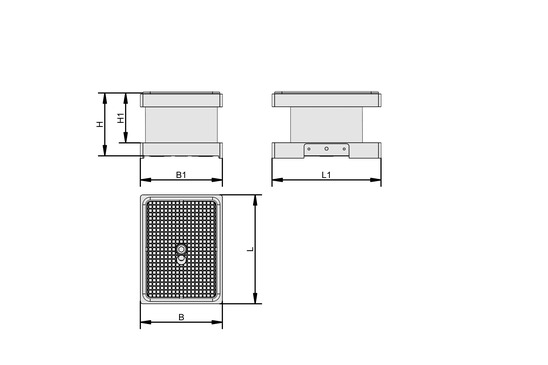

Attribute Value
B 128 mm
B1 128 mm
H 125 mm
H1 132 mm
L 170 mm
L1 170 mm
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English

Product recommendations

Mechanical Clamps VCMC-K2-QUICK
Mechanical Clamps VCMC-K2-QUICK
  • 2-circuit vacuum systems
  • For frames and window profiles
  • Fixation on console by vacuum or mechanically
×
Mechanical Clamps VCMC-K2-QUICK
Mechanical clamp VCMC-K2-QUICK for use on CNC machining centers with two-circuit console table systems from Schmalz.
Adapter-Plates ISAP-K2
Adapter-Plates ISAP-K2
  • 2-circuit vacuum systems
  • Pre-fixation to console by means of vacuum
  • Use of Innospann suction cups
×
Adapter-Plates ISAP-K2
Innospann Adapter-Plate ISAP-K2 for use on CNC machining centers with two-circuit console table systems from Schmalz.
Top Suction Plates
Top Suction Plates
  • Spare top suction plates for Schmalz vacuum blocks
×
Top Suction Plates
High-quality spare top suction plates for easy replacement on Schmalz vacuum blocks.

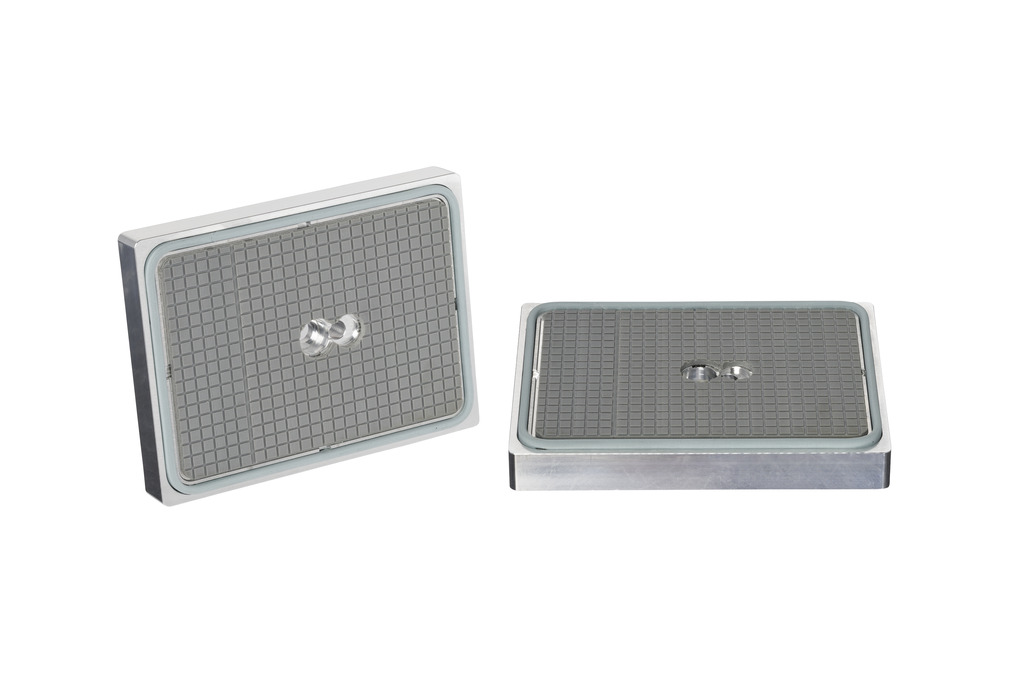

Bottom Suction Plates
Bottom Suction Plates
  • Spare lower suction plates for Schmalz vacuum blocks
×
Bottom Suction Plates
High-quality spare bottom suction plates for easy replacement on Schmalz vacuum blocks.
Vacuum Blocks VCBL-K2
Vacuum Blocks VCBL-K2
  • 2-circuit vacuum systems
  • Hose-free
  • Prefixing on console with vacuum
×
Vacuum Blocks VCBL-K2
Vacuum block VCBL-K2 for use on CNC machining centers with two-circuit console table systems from Schmalz.

Ordering information: VCBL-K2-HD 170x128x125 S-360-15

The vacuum block VCBL-K2-HD is delivered assembled. The product consists of:

  • Expandable and replaceable suction plate with sealing cord, available in different dimensions
  • Base body made of aluminum, optionally with mechanical clamp

Available spare parts: Sealing cord, suction plate
Available accessories: Clamping
