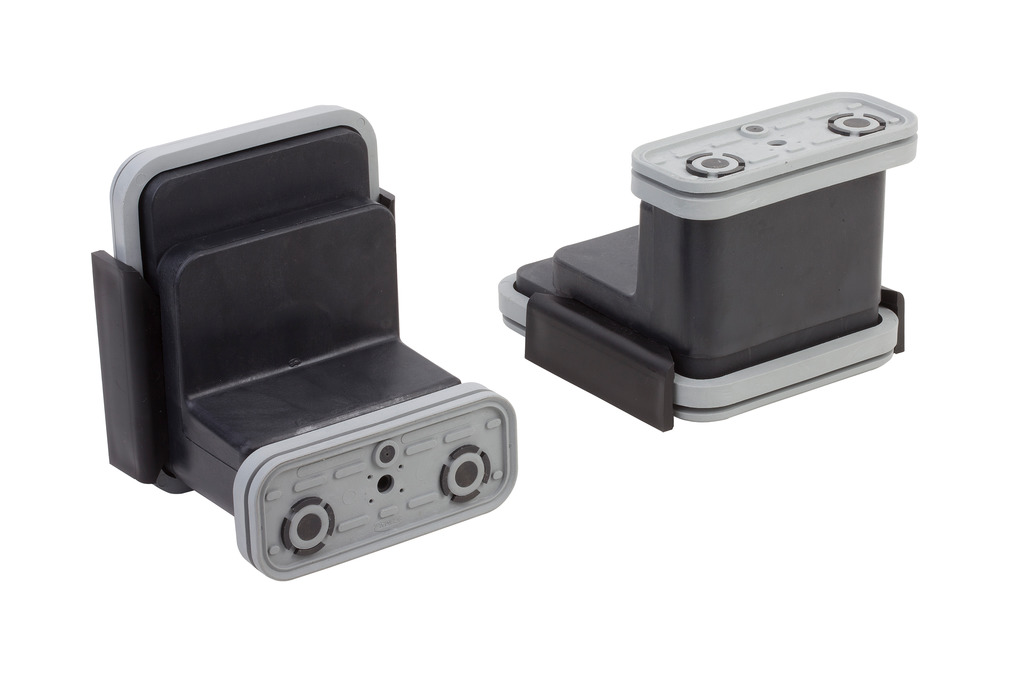

VCBL-K2 120x50x100 Q

Part no.: 10.01.12.00126

Vacuum block for Schmalz 2-circuit console

VCBL-K2 120x50x100 Q
Dimensions (LxB)120 x 50
Dimension suction plate bottom140x115 mm
Height H100 mm
Arrangementcrossways
VCBL-K2 120x50x100 Q

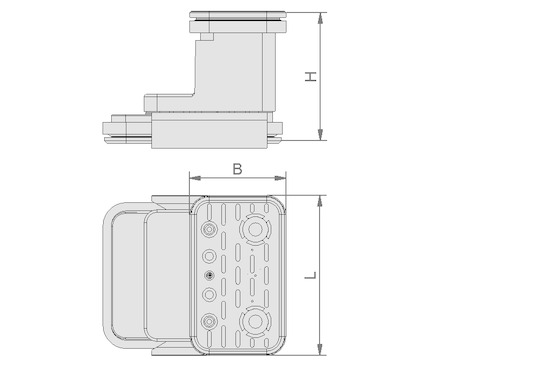

Attribute Value
B 50 mm
H 100 mm
H2 63 mm
L 120 mm
L1 145 mm
L2 67.80 mm
Attribute Value
Dimension suction plate bottom 140x115 mm
Weight 0.63 kg
There is no CAD data online available for this item. Please contact your local contact person.

Product recommendations

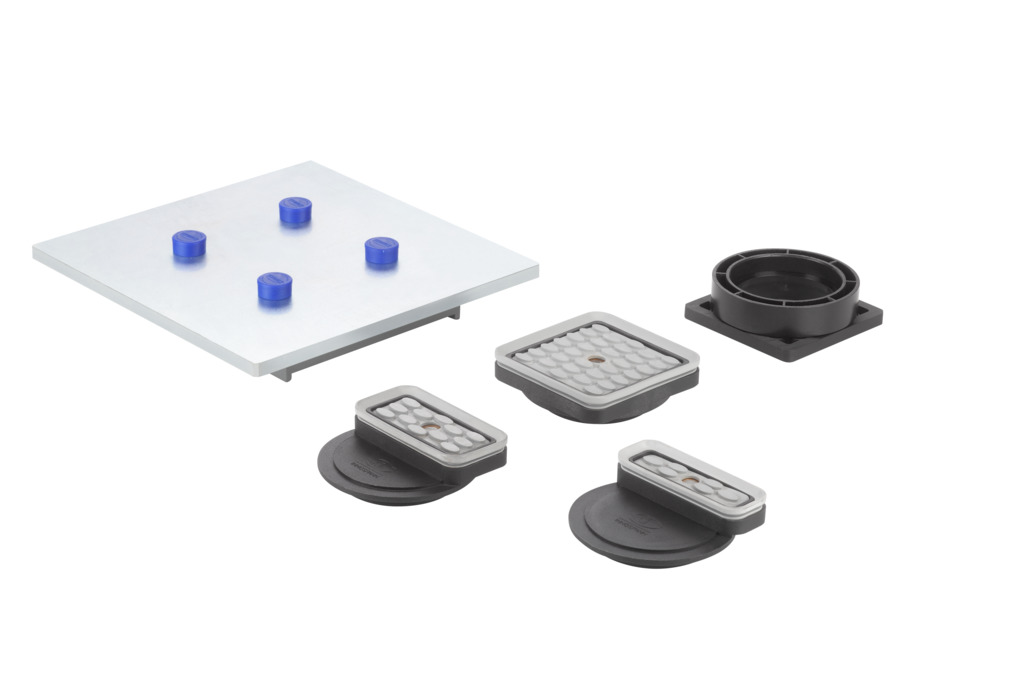

Adapter-Plates ISAP-K2
Adapter-Plates ISAP-K2
  • 2-circuit vacuum systems
  • Pre-fixation to console by means of vacuum
  • Use of Innospann suction cups
×
Adapter-Plates ISAP-K2
Innospann Adapter-Plate ISAP-K2 for use on CNC machining centers with two-circuit console table systems from Schmalz.

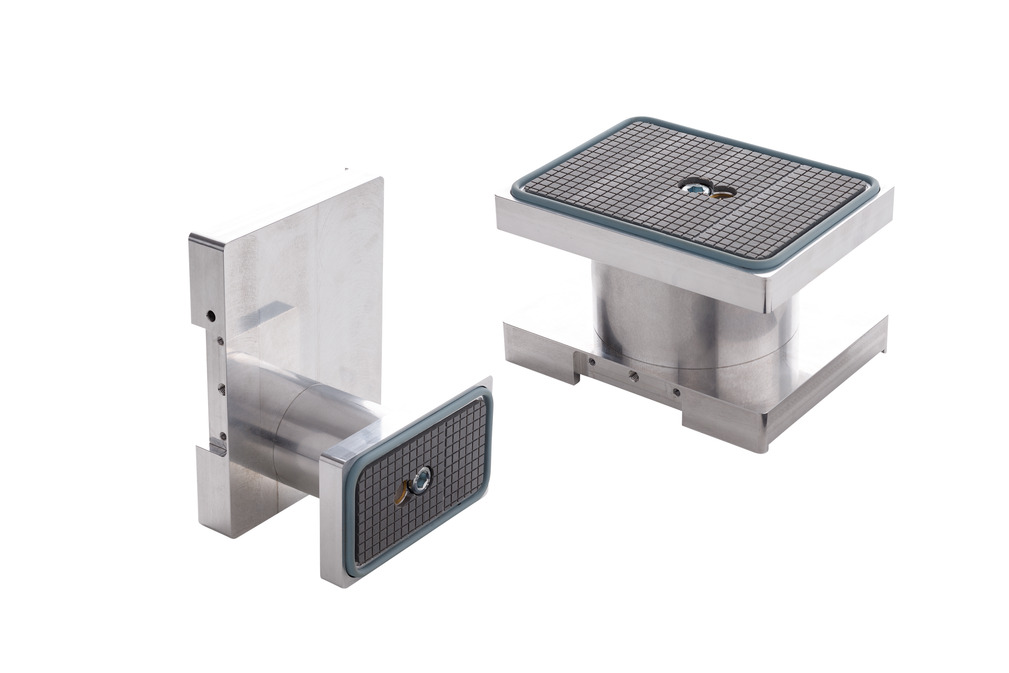

Vacuum Blocks VCBL-K2-HD
Vacuum Blocks VCBL-K2-HD
  • 2-circuit vacuum systems
  • Aluminum vacuum block
  • Pre-fixation mechanically or by vacuum
×
Vacuum Blocks VCBL-K2-HD
Vacuum block for demanding applications such as the processing of solid wood or mineral materials, also for sanded and painted surfaces.
Mechanical Clamps VCMC-K2-QUICK
Mechanical Clamps VCMC-K2-QUICK
  • 2-circuit vacuum systems
  • For frames and window profiles
  • Fixation on console by vacuum or mechanically
×
Mechanical Clamps VCMC-K2-QUICK
Mechanical clamp VCMC-K2-QUICK for use on CNC machining centers with two-circuit console table systems from Schmalz.
Adapter-Plates ISAP-K2
Adapter-Plates ISAP-K2
  • 2-circuit vacuum systems
  • Pre-fixation to console by means of vacuum
  • Use of Innospann suction cups
×
Adapter-Plates ISAP-K2
Innospann Adapter-Plate ISAP-K2 for use on CNC machining centers with two-circuit console table systems from Schmalz.
Top Suction Plates
Top Suction Plates
  • Spare top suction plates for Schmalz vacuum blocks
×
Top Suction Plates
High-quality spare top suction plates for easy replacement on Schmalz vacuum blocks.
Bottom Suction Plates
Bottom Suction Plates
  • Spare lower suction plates for Schmalz vacuum blocks
×
Bottom Suction Plates
High-quality spare bottom suction plates for easy replacement on Schmalz vacuum blocks.

Ordering information: VCBL-K2 120x50x100 Q

The vacuum block VCBL-K2 is delivered assembled. The assembly consists of:

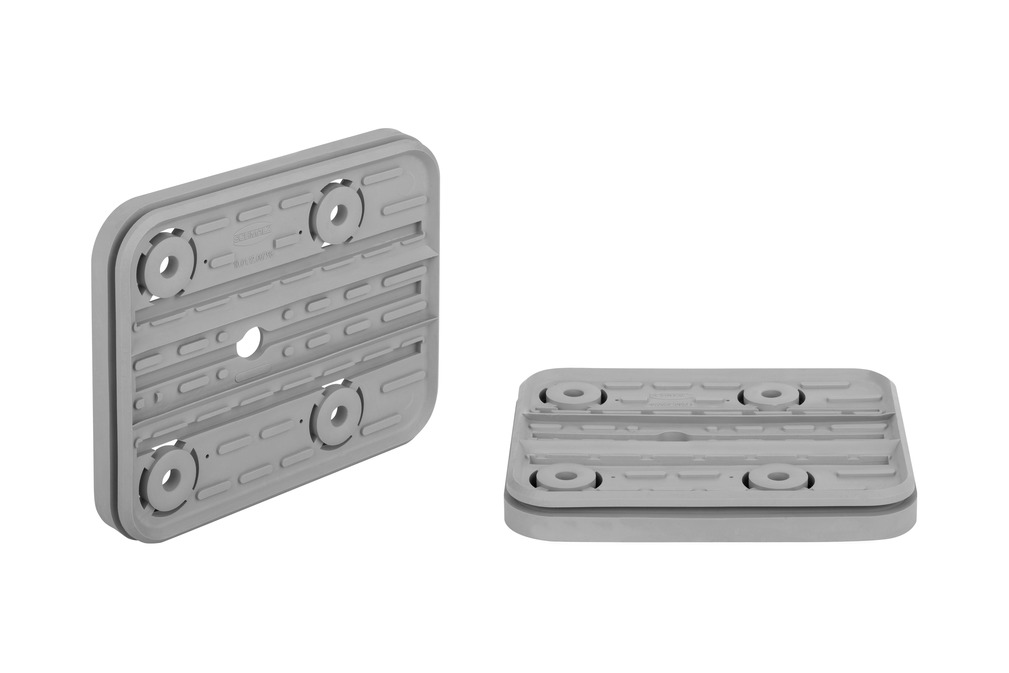

  • Top suction plate type VCSP-O - elastomer part, available in different dimensions and suction areas
  • Main body made of plastic

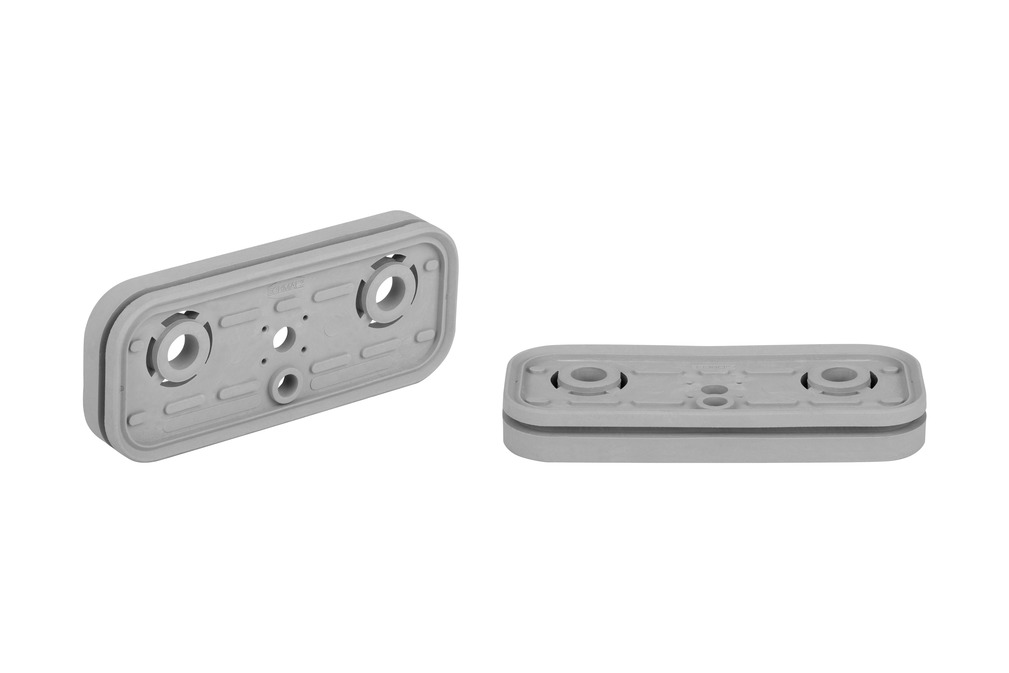

  • Bottom suction plate type VCSP-U - elastomer part

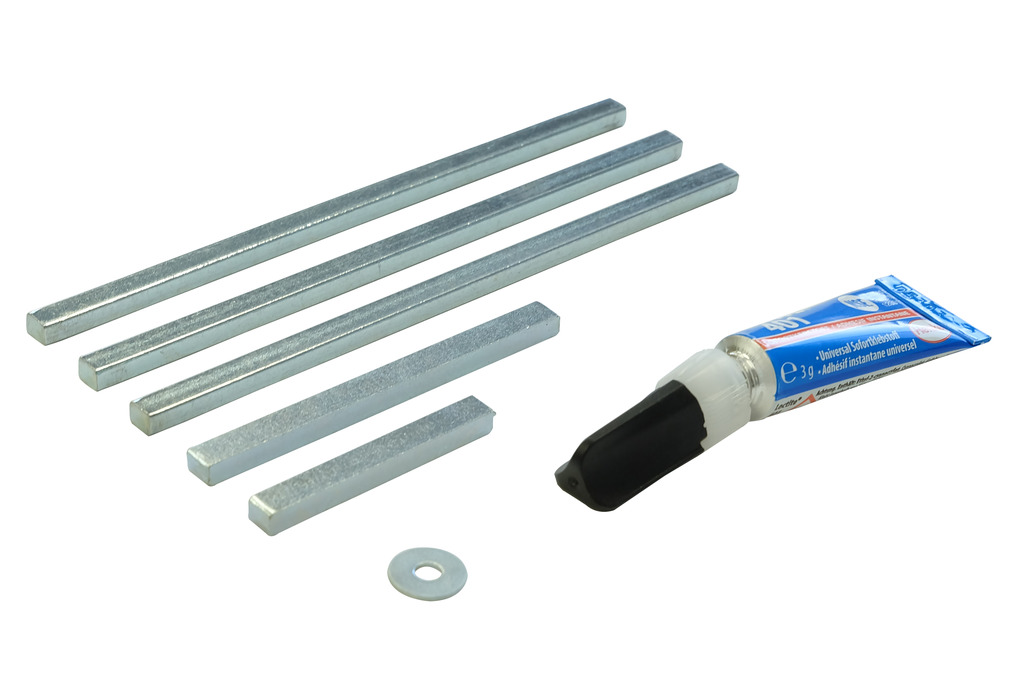

Available spare parts: suction plate (top), wear part set, suction plate (bottom), sealing frame, friction plate, spare part set with steel inserts
Available accessories: suction plate foam rubber
