Schmalz Quick-Change SQC

  • Vacuum clamping system for grinding glass workpieces using CNC machines from the manufacturer Bystronic
  • Used for grinding high-quality building, design and automotive glass
  • Tool-free changeover to reduce set-up times and downtimes as well as simple retrofitting of existing machine tables
  • Fully compatible with original equipment suction cups
  • Working heights of 80 mm and 120 mm
Note - Bystronic

Bystronic is a registered and protected trademark. The products listed here were developed by J. Schmalz GmbH to fit machines from this manufacturer.
Product Highlights
  • Quick change system consisting of only three parts for short set-up times for new machine layouts
  • Sealing frame made of low-marking material that can be exchanged without tools
  • Quick cleaning during layout changes, as base remains permanently on the machine table
  • Very high holding forces on dry, moist glass
  • Working heights and interference contour suitable for mixed operation with original equipment vacuum blocks
Schmalz Quick-Change SQC
  • Suction cup with sealing frame (1) made of HT1-material leaving few marks
  • Square and round suction areas available (2)
  • Aluminum housing with break joint (3)
  • Mono-Base with hollow bolt for long-term mounting on a machine table (5)
  • Cover (4) for bases that are not equipped with suction cups
  • Three-part quick-change system
  • Hose-free vacuum line
  • Fits machine tables with M12 vacuum feeds
The matching documentation for this product is available in this section.

Documents

Language

Product family overview
English
Product family overview
Deutsch
Product family overview
Español
Product family overview
Français
Product family overview
Italiano
Product family overview
Polski
Product family overview
Türkçe
Product family overview
Pусский
Product family overview
日本語
Product family overview
中國
Product family overview
한국어
Product family overview
Suomalainen
Product family overview
Nederlands
Product family overview
Česky
Product family overview
Hrvatski
Product family overview
Slovenščina
Product family overview
Srpski
Product family overview
Tiếng Việt

Filter by

Height H [mm]
-
Height H1 [mm]
-
Length L [mm]
-
Labeling

Results 1 to 10 of 10 items

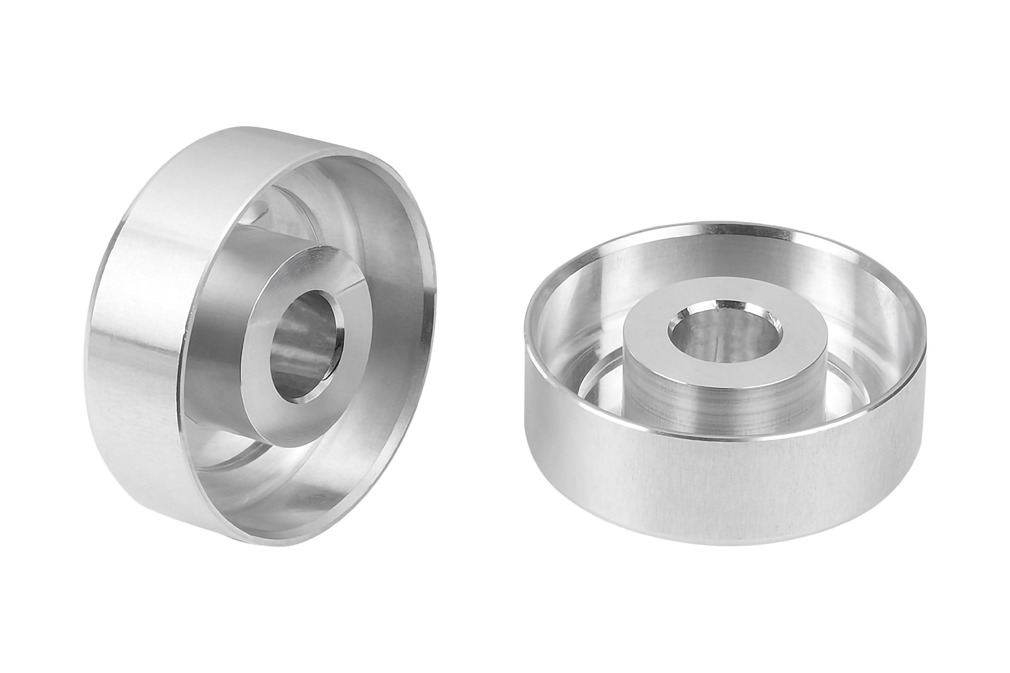

ABDK 68x12 SQC
Phase-out article

ABDK 68x12 SQC

Part no.: 10.01.18.01022
Cover
The item phases out and is still available until 01-01-2025
External diameter D68 mm
Height H12 mm
Construction useQuick-change system
External diameter D68 mm
Height H12 mm
Construction useQuick-change system

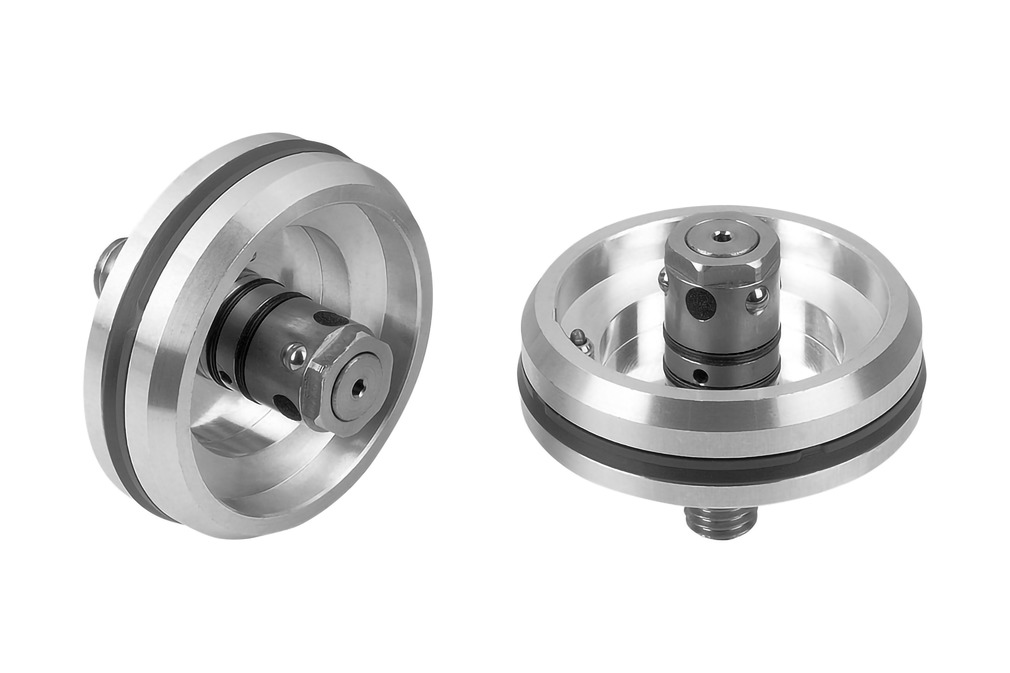

SQC-MB-62.9x18-M12-AG
Phase-out article

SQC-MB-62.9x18-M12-AG

Part no.: 10.01.18.01031
Quick change Mono Base for automated clamping
The item phases out and is still available until 01-01-2025
External diameter D62.9 mm
Height H18 mm
Thread G1M12-M
Construction useQuick-change system
External diameter D62.9 mm
Height H18 mm
Thread G1M12-M
Construction useQuick-change system

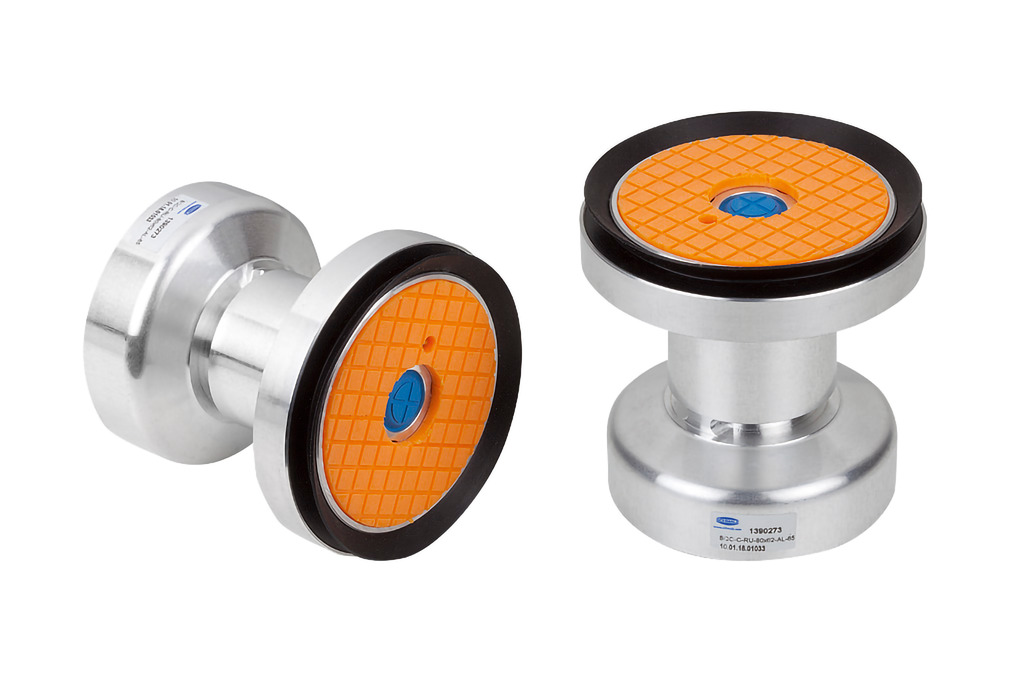

SQC-C-RU-80x62-NBR

SQC-C-RU-80x62-NBR

Part no.: 10.01.18.01033
Quick Change Suction Cup
External diameter D80 mm
Height H62 mm
Construction useQuick-change system
Dimensions (LxB)Diameter 80 mm
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan
External diameter D80 mm
Height H62 mm
Construction useQuick-change system
Dimensions (LxB)Diameter 80 mm
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan

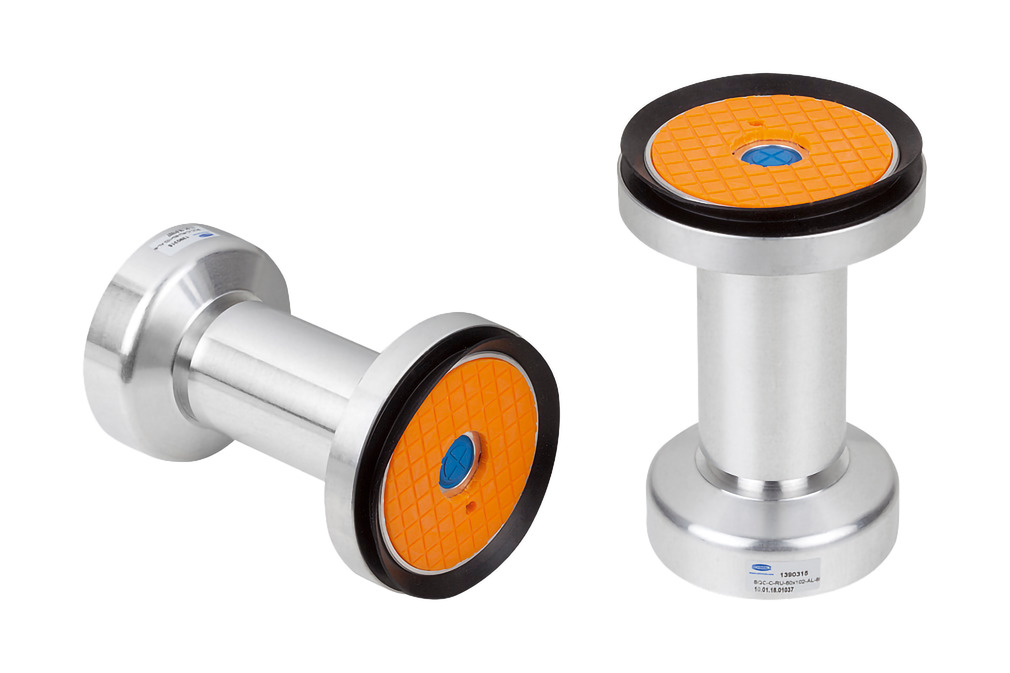

SQC-C-RU-80x102-NBR

SQC-C-RU-80x102-NBR

Part no.: 10.01.18.01037
Quick Change Suction Cup
External diameter D80 mm
Height H102 mm
Construction useQuick-change system
Dimensions (LxB)Diameter 80 mm
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan
External diameter D80 mm
Height H102 mm
Construction useQuick-change system
Dimensions (LxB)Diameter 80 mm
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan

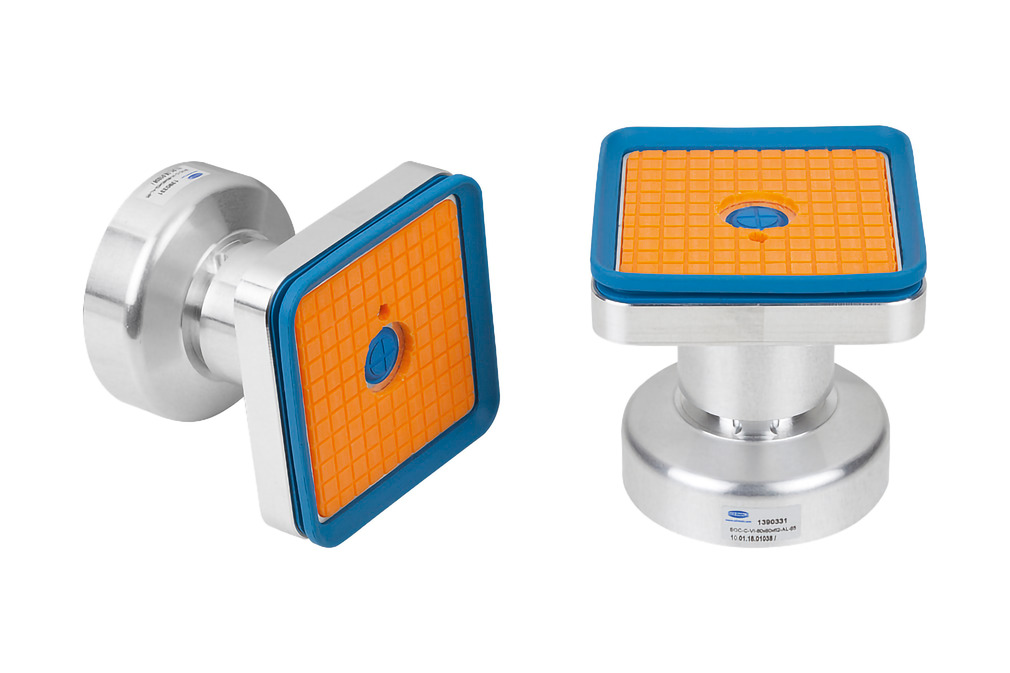

SQC-C-VI-80x80x62-HT1
Phase-out article

SQC-C-VI-80x80x62-HT1

Part no.: 10.01.18.01038
Quick Change Suction Cup
The item phases out and is still available until 01-01-2025
Height H62 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temperature material HT1
Height H62 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temperature material HT1
SQC-C-VI-80x80x102-HT1

SQC-C-VI-80x80x102-HT1

Part no.: 10.01.18.01039
Quick Change Suction Cup
Height H102 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temperature material HT1
Height H102 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temperature material HT1
SQC-C-RU-80x102-HT1
Phase-out article

SQC-C-RU-80x102-HT1

Part no.: 10.01.18.01090
Quick Change Suction Cup
The item phases out and is still available until 01-01-2025
External diameter D80 mm
Height H102 mm
Construction useQuick-change system
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temp material HT1
External diameter D80 mm
Height H102 mm
Construction useQuick-change system
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temp material HT1

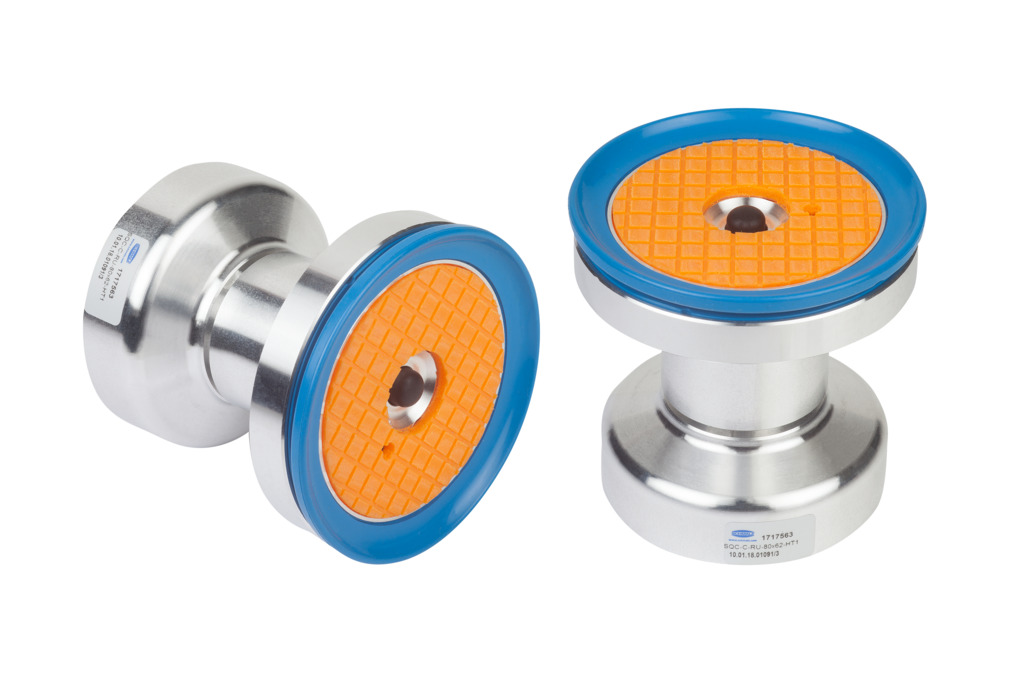

SQC-C-RU-80x62-HT1
Phase-out article

SQC-C-RU-80x62-HT1

Part no.: 10.01.18.01091
Quick Change Suction Cup
The item phases out and is still available until 01-01-2025
External diameter D80 mm
Height H62 mm
Construction useQuick-change system
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temp material HT1
External diameter D80 mm
Height H62 mm
Construction useQuick-change system
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialHigh temp material HT1

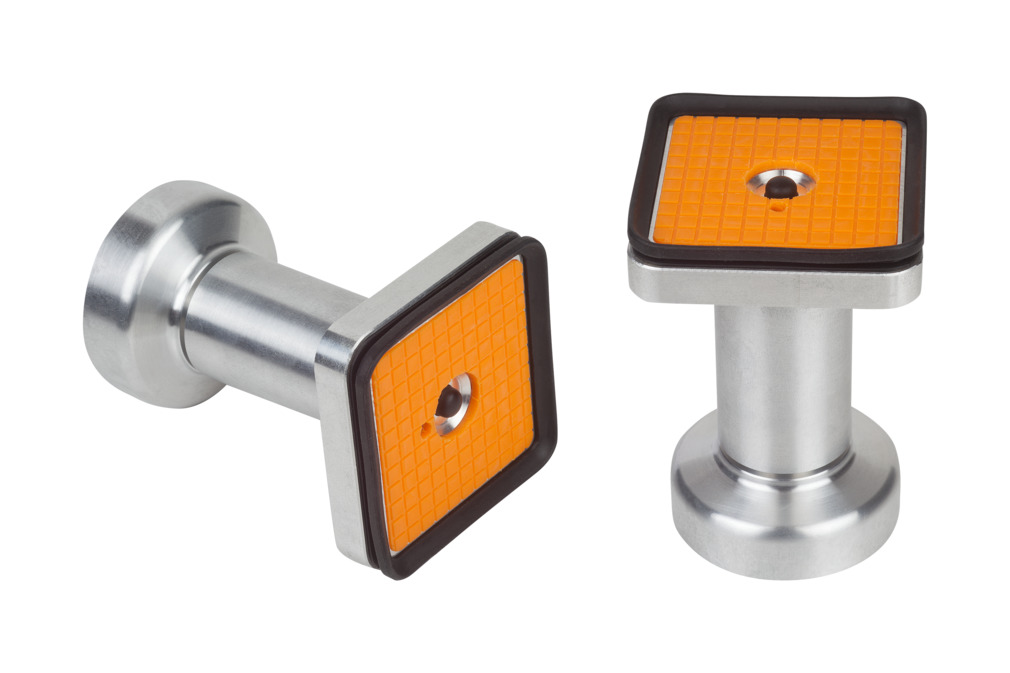

SQC-C-VI-80x80x102-NBR
Phase-out article

SQC-C-VI-80x80x102-NBR

Part no.: 10.01.18.01092
Quick Change Suction Cup
The item phases out and is still available until 01-01-2024
Height H102 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan
Height H102 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan

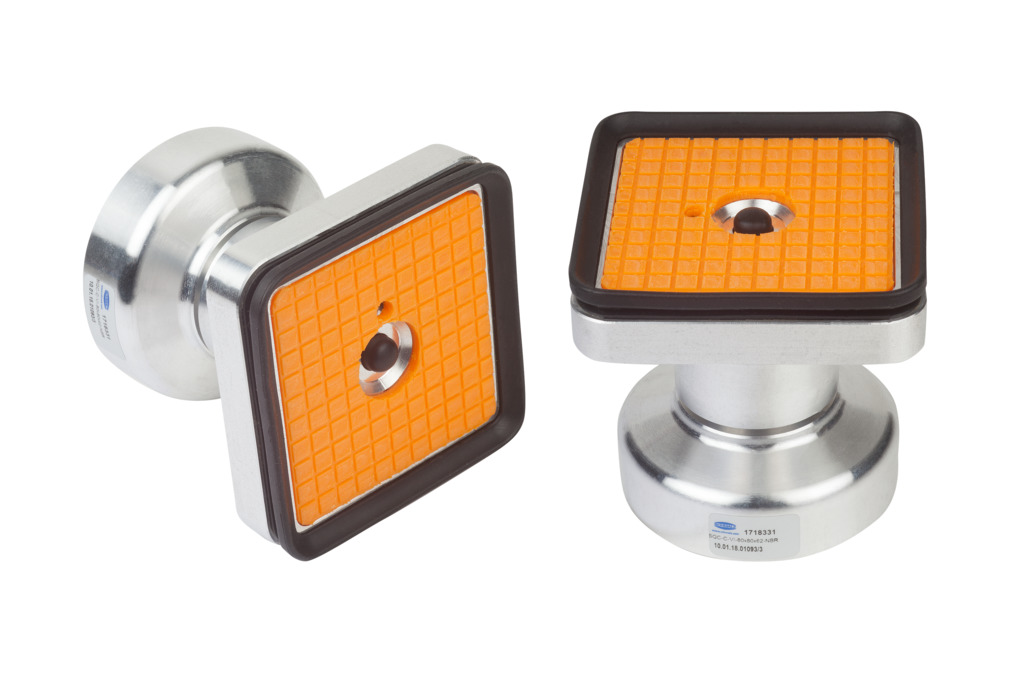

SQC-C-VI-80x80x62-NBR
Phase-out article

SQC-C-VI-80x80x62-NBR

Part no.: 10.01.18.01093
Quick Change Suction Cup
The item phases out and is still available until 01-01-2025
Height H62 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan
Height H62 mm
Construction useQuick-change system
Dimensions (LxB)80 x 80
MaterialAluminum
MaterialED
Material hardness [Shore A]85 Shore A
Sealing materialPerbunan
