Clamping Equipment for 3D Freeform Surfaces

Workpieces with uneven, rounded or curved contours present a new challenge for clamping technology. With the Schmalz Basic Holding Fixture, complex components for CNC machining and measurement processes can be clamped without a problem. With the Suction Cup Balance SSCB, Schmalz has developed both a clamping system with precise positioning for 3D free-form surfaces and a gripping system equipped for automatic setup and simultaneous gripping.

Industry sector
Labeling
Select / Connect

Results 1 to 10 of 13 items

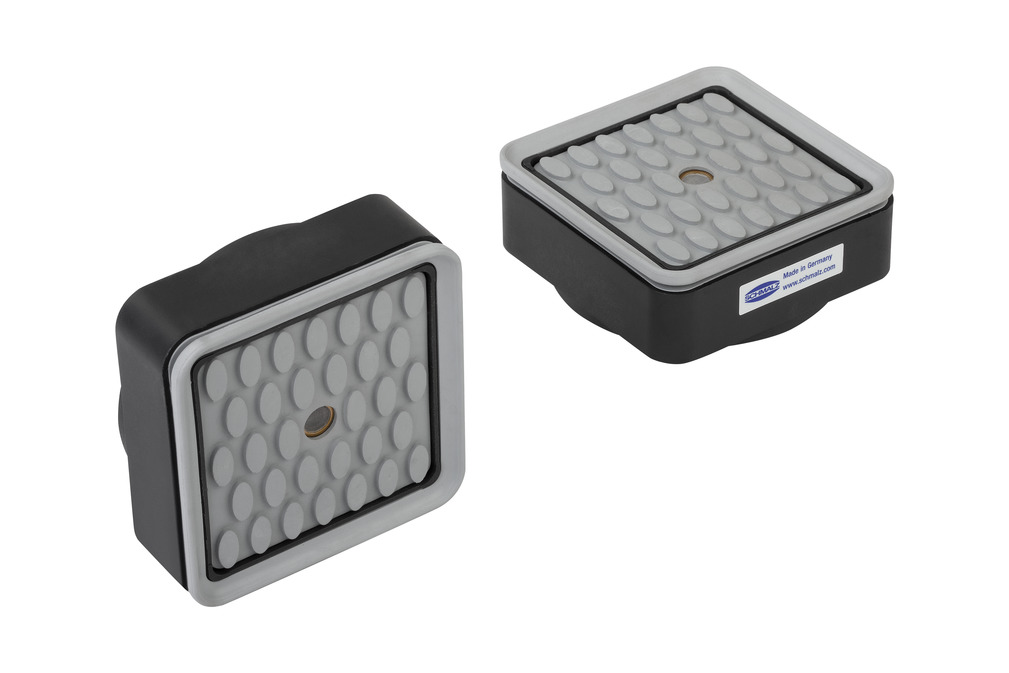

ISCUP Cup 1 80x80x30
Schmalz Select

ISCUP Cup 1 80x80x30

Part no.: 10.01.15.00003
Suction cup for Innospann
Schmalz Select
Dimensions (LxB)80 x 80
Length L80 mm
Width B80 mm
Height H30 mm
Dimensions (LxB)80 x 80
Length L80 mm
Width B80 mm
Height H30 mm

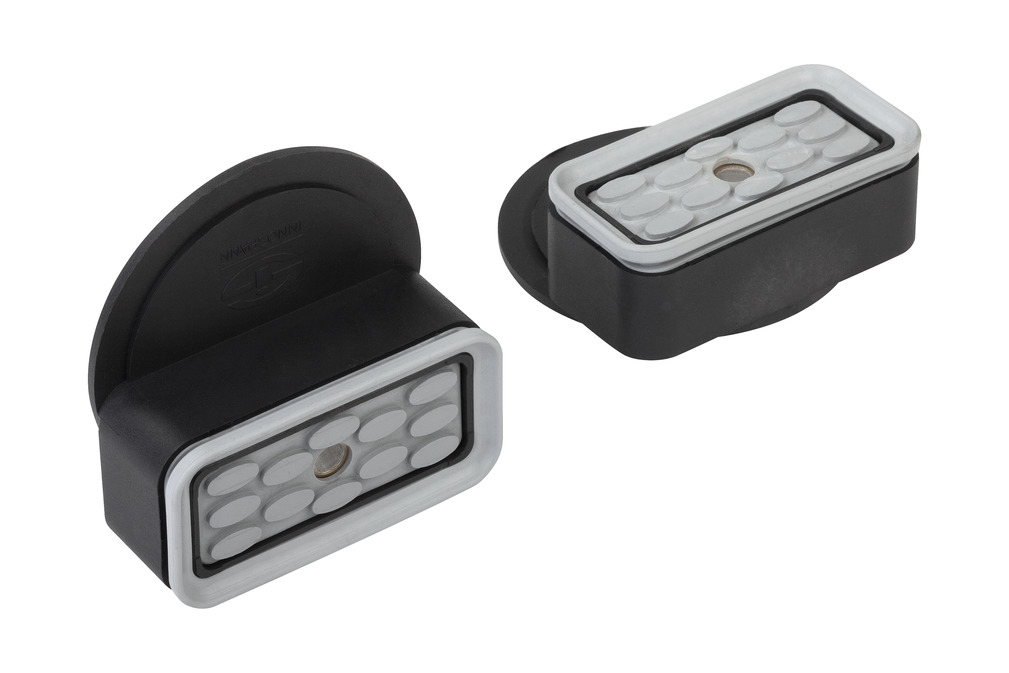

ISCUP Cup 2 80x40x30
Schmalz Select

ISCUP Cup 2 80x40x30

Part no.: 10.01.15.00004
Suction cup for Innospann
Schmalz Select
Dimensions (LxB)80 x 40
Length L80 mm
Width B40 mm
Height H30 mm
Dimensions (LxB)80 x 40
Length L80 mm
Width B40 mm
Height H30 mm

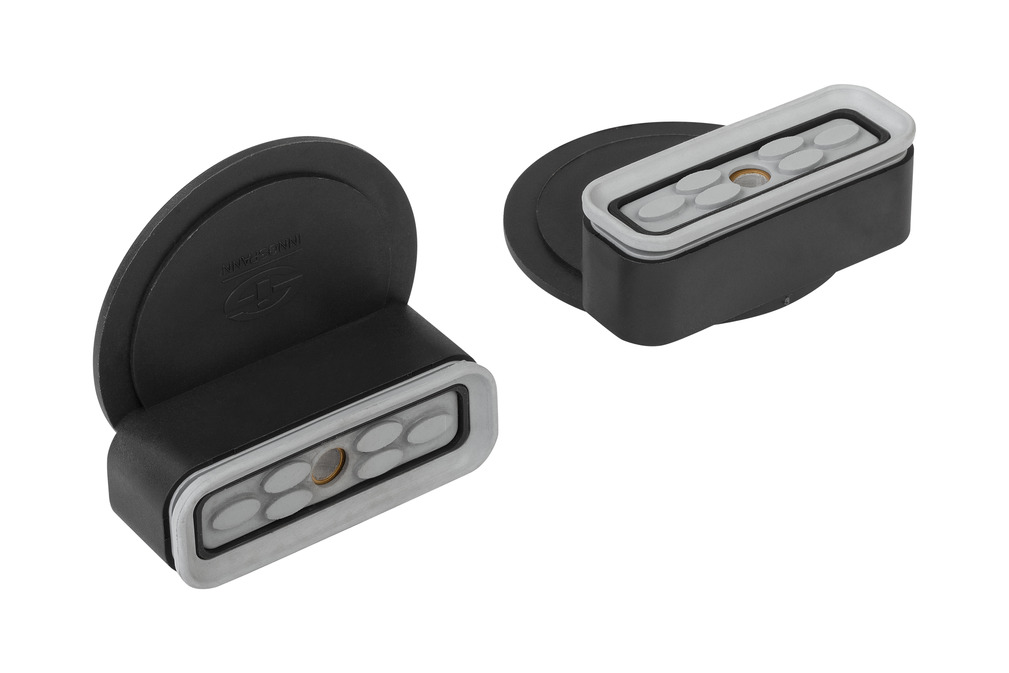

ISCUP Cup 3 80x28x30
Schmalz Select

ISCUP Cup 3 80x28x30

Part no.: 10.01.15.00005
Suction cup for Innospann
Schmalz Select
Dimensions (LxB)80 x 28
Length L80 mm
Width B28 mm
Height H30 mm
Dimensions (LxB)80 x 28
Length L80 mm
Width B28 mm
Height H30 mm

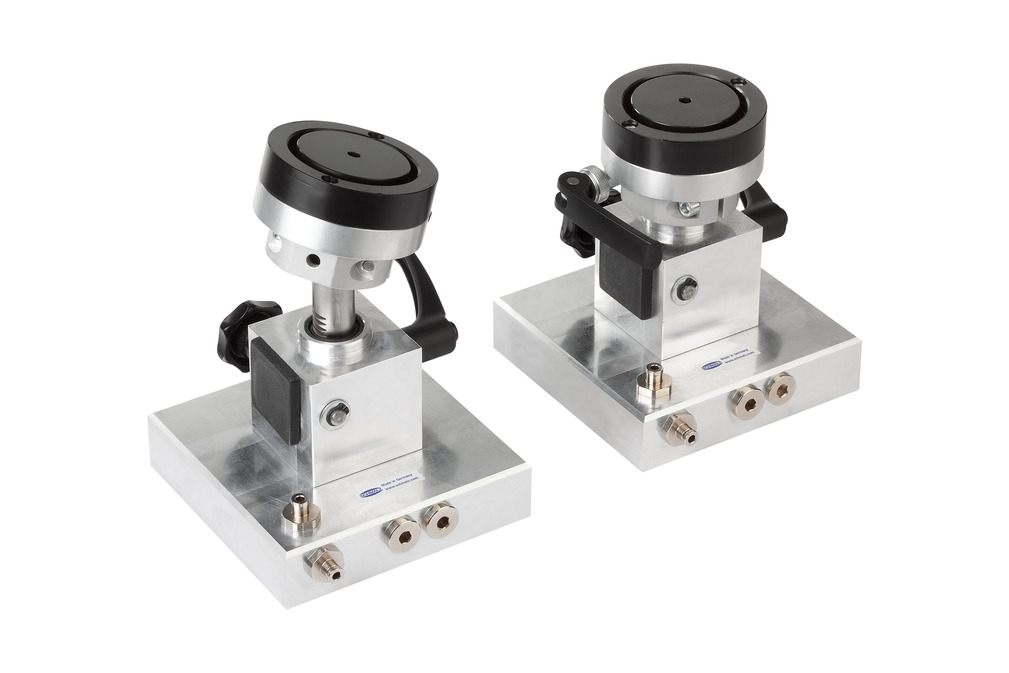

UB 135x135x156 29.5 15 ISST
Phase-out article

UB 135x135x156 29.5 15 ISST

Part no.: 10.01.15.00564
Uni-Base, flexibly adjustable
The item phases out and is still available until 01-01-2026
Length L135 mm
Width B135 mm
Height H156 mm
Stroke Z29.5 mm
Slewing angle W15 °
Construction useSteel-Plate
Length L135 mm
Width B135 mm
Height H156 mm
Stroke Z29.5 mm
Slewing angle W15 °
Construction useSteel-Plate

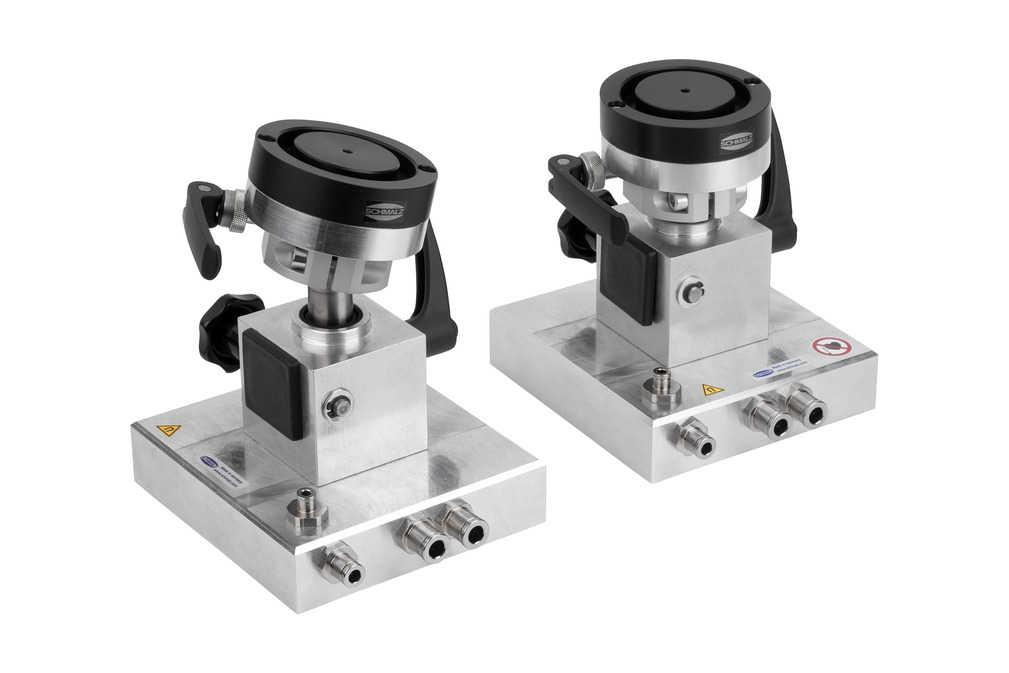

UB 135x135x156 29.5 15 G
Phase-out article

UB 135x135x156 29.5 15 G

Part no.: 10.01.15.00571
Uni-Base, flexibly adjustable
The item phases out and is still available until 01-01-2026
Length L135 mm
Width B135 mm
Height H156 mm
Stroke Z29.5 mm
Slewing angle W15 °
Construction useSmooth table
Length L135 mm
Width B135 mm
Height H156 mm
Stroke Z29.5 mm
Slewing angle W15 °
Construction useSmooth table

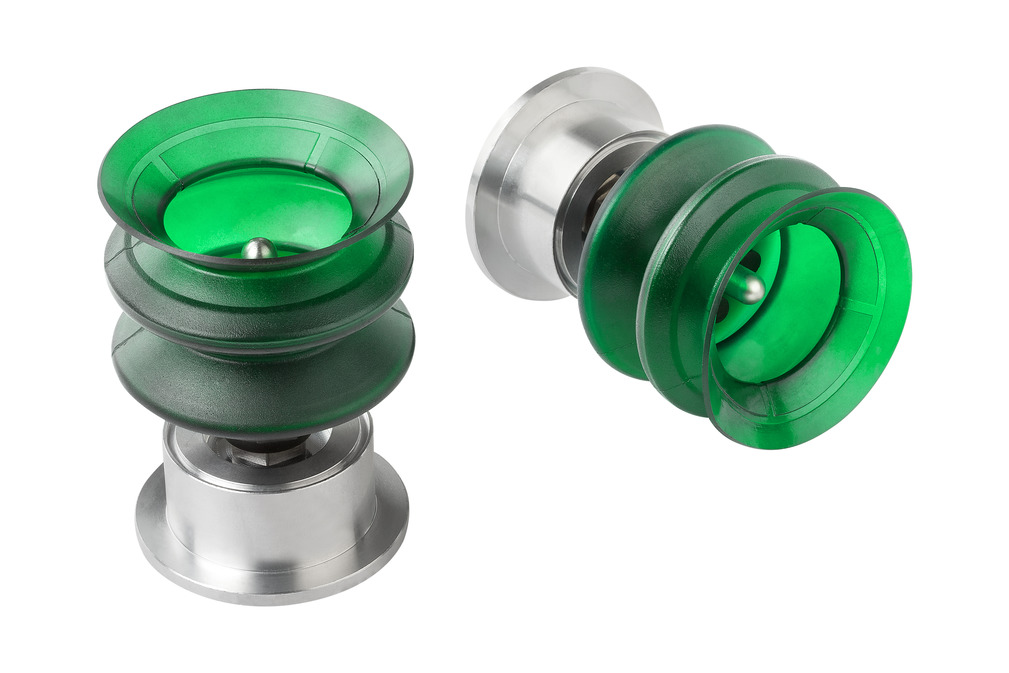

RSC 85x120-VU1-40-IS-BHF
Phase-out article

RSC 85x120-VU1-40-IS-BHF

Part no.: 10.01.15.00587
Reference Suction-Cup automazed 3D-fixation
The item phases out and is still available until 01-01-2026
Height H99 mm
Height H1120 mm
Stroke Z21 mm
Suction cup materialVulkollan VU1
Construction useBasic Holding Fixture
Height H99 mm
Height H1120 mm
Stroke Z21 mm
Suction cup materialVulkollan VU1
Construction useBasic Holding Fixture

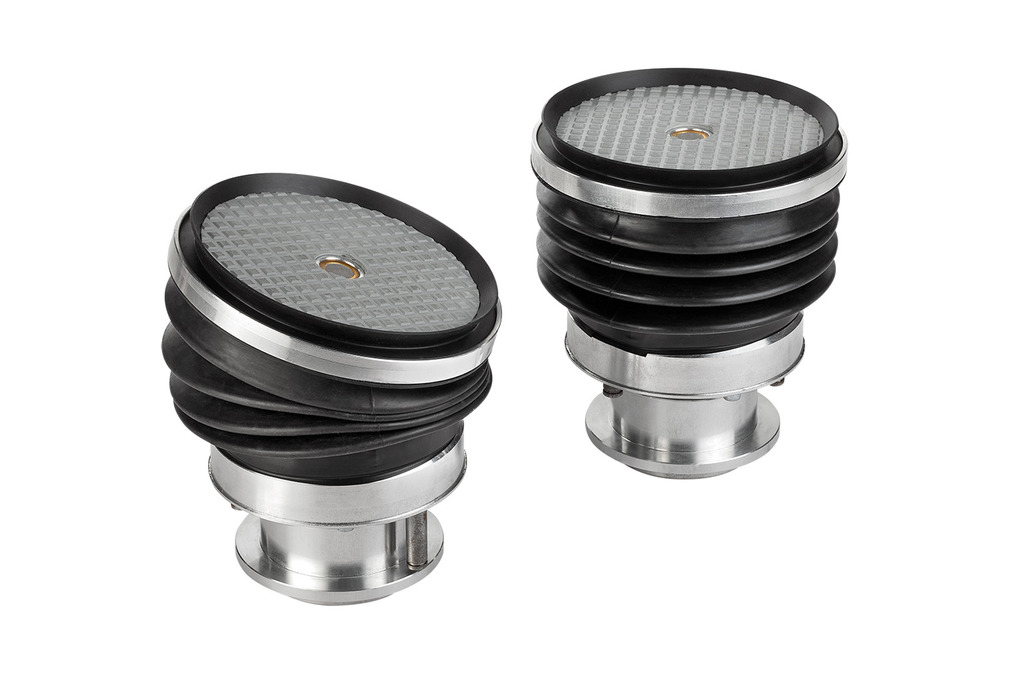

SSPB-117 117-125 NBR

SSPB-117 117-125 NBR

Part no.: 10.01.15.00719
Suction plate with ball support for flexible clamping and gripping systems
Diameter Ds117 mm
Height H1137 mm
Stroke Z8 mm
MaterialED
Sealing materialPerbunan
Diameter Ds117 mm
Height H1137 mm
Stroke Z8 mm
MaterialED
Sealing materialPerbunan

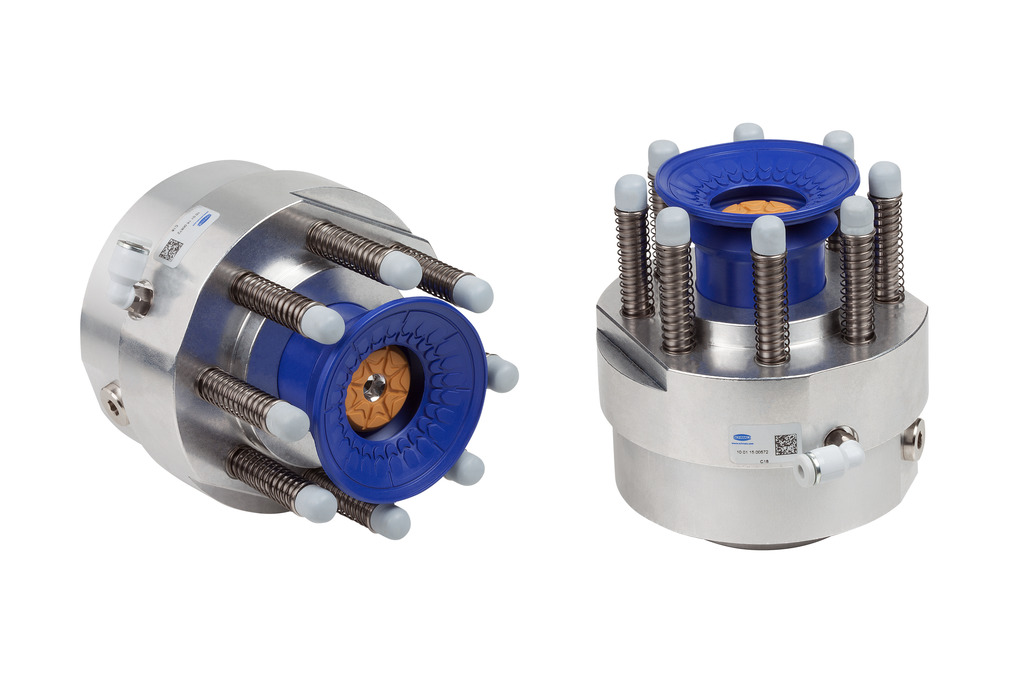

SSCB-78 93.5-107.5 ZP 60 SAB-NBR

SSCB-78 93.5-107.5 ZP 60 SAB-NBR

Part no.: 10.01.15.00572
Vacuum Clamping System for automated 3D-fixation
Pitch diameter D mk78 mm
Function Suction cupCentrally fixed pins
Suct. cupsBellows suction cups SAB
ConnectionØ60mm
MaterialNBR
Material hardness [Shore A]60 Shore A
MaterialNBR
Height H1117.3 mm
Pitch diameter D mk78 mm
Function Suction cupCentrally fixed pins
Suct. cupsBellows suction cups SAB
ConnectionØ60mm
MaterialNBR
Material hardness [Shore A]60 Shore A
MaterialNBR
Height H1117.3 mm

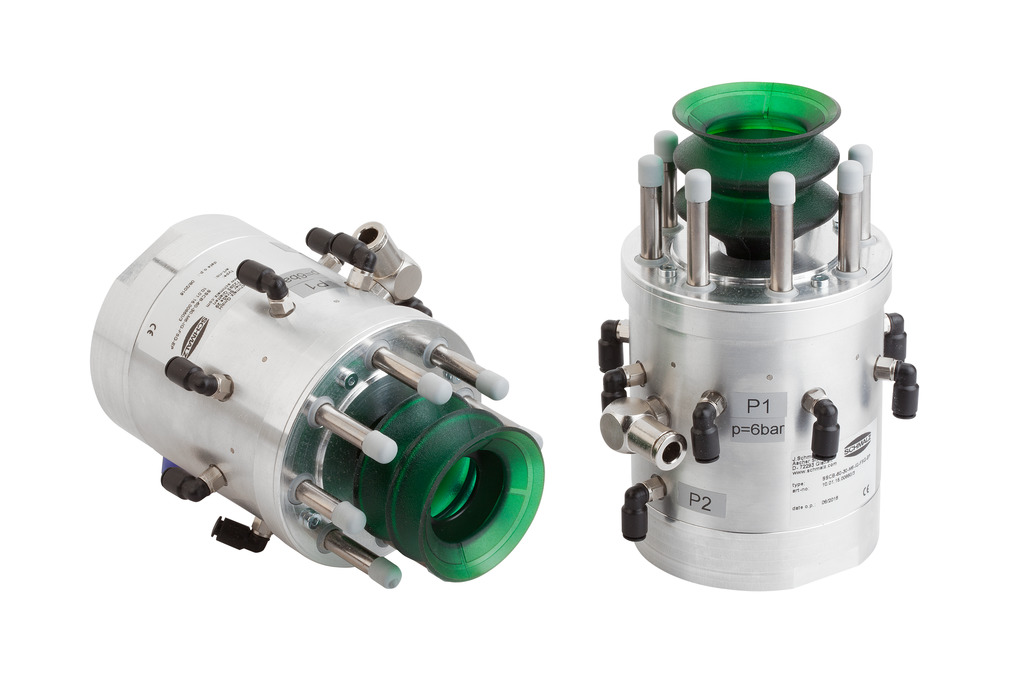

SSCB-78 141-171 EP M6-IG FSG-VU1

SSCB-78 141-171 EP M6-IG FSG-VU1

Part no.: 10.01.15.00850
Vacuum Clamping System for automated 3D-fixation
Pitch diameter D mk78 mm
Function Suction cupIndependenty controlled pins
Suct. cupsBellows suction cups FSG
ConnectionM6-F
MaterialVU1
Material hardness [Shore A]72 Shore A
MaterialNBR
Height H1179 mm
Pitch diameter D mk78 mm
Function Suction cupIndependenty controlled pins
Suct. cupsBellows suction cups FSG
ConnectionM6-F
MaterialVU1
Material hardness [Shore A]72 Shore A
MaterialNBR
Height H1179 mm

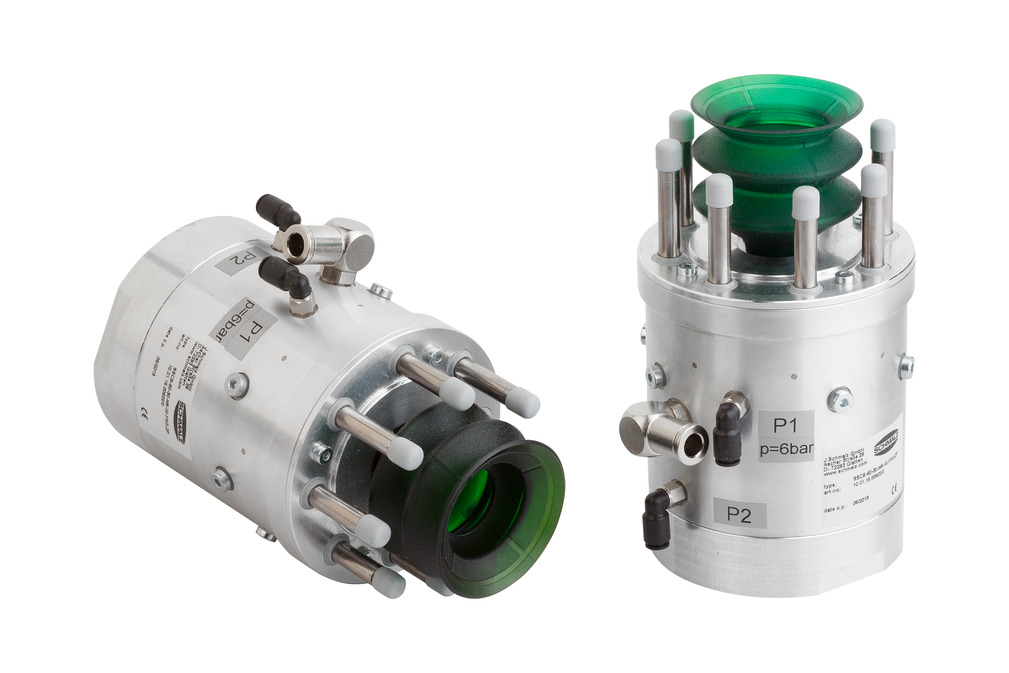

SSCB-78 141-171 ZP M6-IG FSG-VU1

SSCB-78 141-171 ZP M6-IG FSG-VU1

Part no.: 10.01.15.00922
Vacuum Clamping System for automated 3D-fixation
Pitch diameter D mk78 mm
Function Suction cupCentrally fixed pins
Suct. cupsBellows suction cups FSG
ConnectionM6-F
MaterialVU1
Material hardness [Shore A]72 Shore A
MaterialNBR
Height H1179 mm
Pitch diameter D mk78 mm
Function Suction cupCentrally fixed pins
Suct. cupsBellows suction cups FSG
ConnectionM6-F
MaterialVU1
Material hardness [Shore A]72 Shore A
MaterialNBR
Height H1179 mm
Clamping Equipment for Manual Processing
Clamping Equipment for Manual Processing
  • Flexible, manually adjustable clamping solution for free-form workpieces
  • Modular construction kit with various vacuum suction cups
  • Suitable for smooth table or steel plate
×

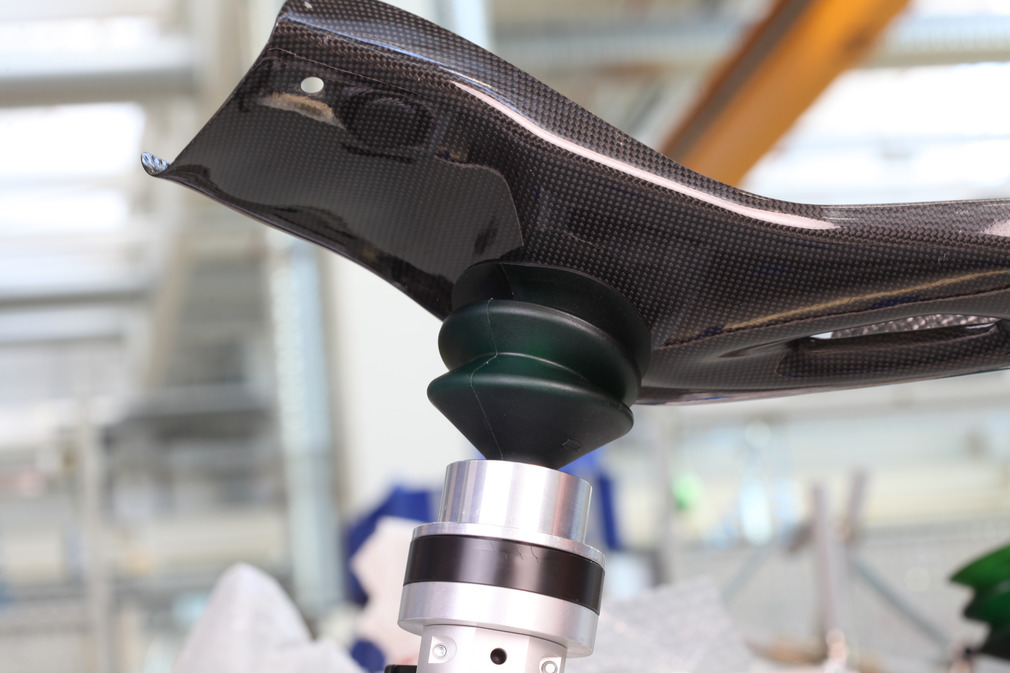

Clamping Equipment for Manual Processing
The Basic Holding Fixture is used where three-dimensionally shaped parts have to be fixed for measurements, manual assembly processes or light mechanical processing. Due to the simple positioning and the two vacuum circuits, the system can be used with hose connections on any smooth table or hose free on steel plates.
Clamping and Gripping Equipment for Automated Processing
Clamping and Gripping Equipment for Automated Processing
  • Clamping and gripping system for free-form 3D contours
  • Support of the workpiece contour by positioning pins
×

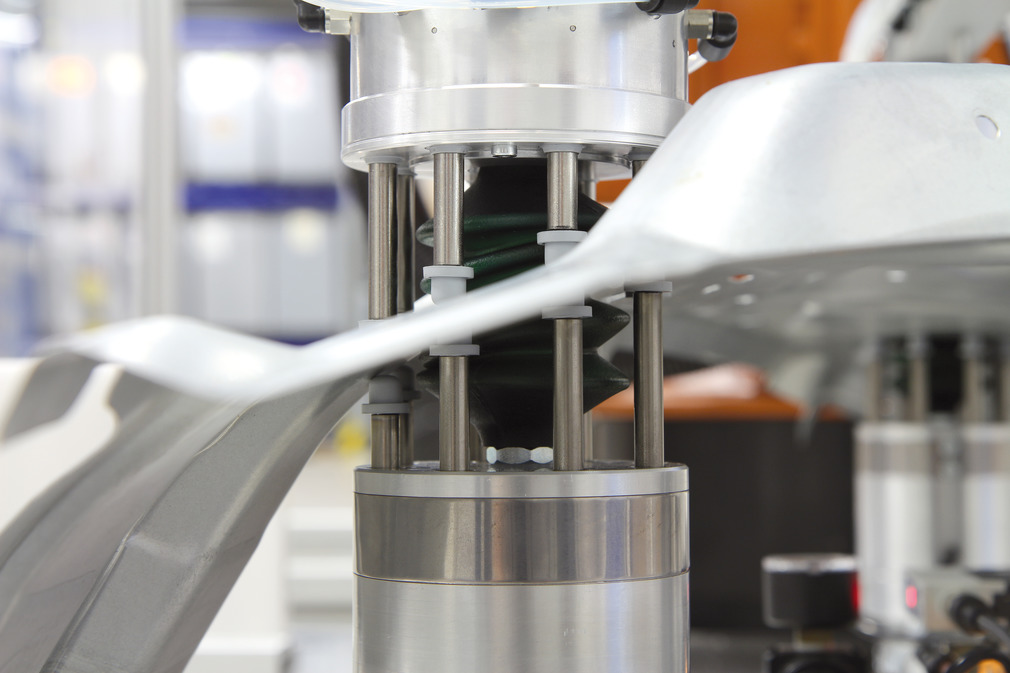

Clamping and Gripping Equipment for Automated Processing
Clamping and gripping devices can be used in automated processes for the handling and clamping of three-dimensionally shaped parts. The positioning pins automatically reproduce the exact contour of the workpiece and allow the same fixture to be used to fix differently shaped parts.
