Part no.: 10.01.06.03536
Bellows suction cup (round) for very uneven workpieces
| Size | 50 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G3/8"-F |
| Number of folds | 4.5 |
| Attribute | Value |
|---|---|

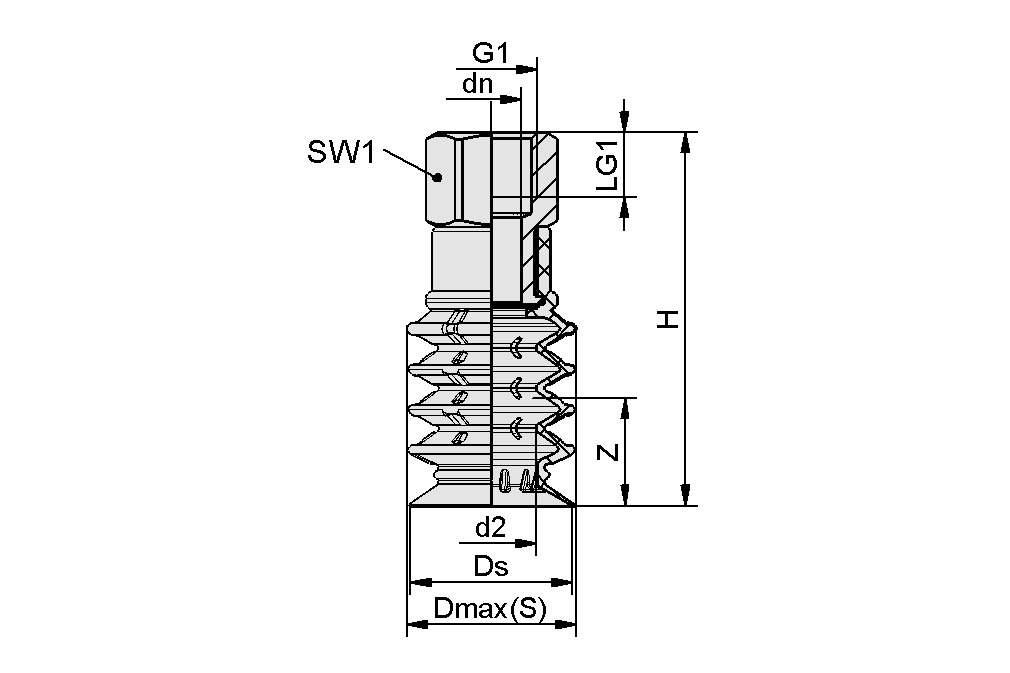

| d2 | 30 mm |
| dn | 15 mm |
| Dmax(S) | 51.5 mm |
| Ds | 50.3 mm |
| G1 | G3/8"-F |
| H | 97.5 mm |
| LG1 | 12 mm |
| SW1 | 27 mm |
| Z (Stroke) | 36.5 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 49.5 N |
| Pull-off force | 62 N |
| Volume | 64.55 cm³ |
| Hose inner diameter (recom.) d | 12 mm |
| Number of folds | 4.5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Size | 50 |
| Weight | 53 g |
| Product family | SPB4 |
| Connection type | 090 |
| Length L1 | 37.5 (mm) |
| Fitting length | 21.5 (mm) |
| Nominal diameter dn | 15 (mm) |
| Size | 50 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 4.5 |
| Outside diameter D | 19.5 (mm) |
| Length L | 1 (mm) |
| Material | Brass / stainless steel |
| Filter pore size | 103 (µm) |
| Clamping range [mm] | 20.0 ... 32.0 mm |
| Material | Steel |
| Surface | galvanised |
| Size | 42 |
| Material | Polyethylene |
| Utilization | SPB4-50 |
