Part no.: 10.01.06.03503
Bellows suction cup (round) for very uneven workpieces
| Size | 60 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/4"-F |
| Number of folds | 1.5 |
| Attribute | Value |
|---|---|

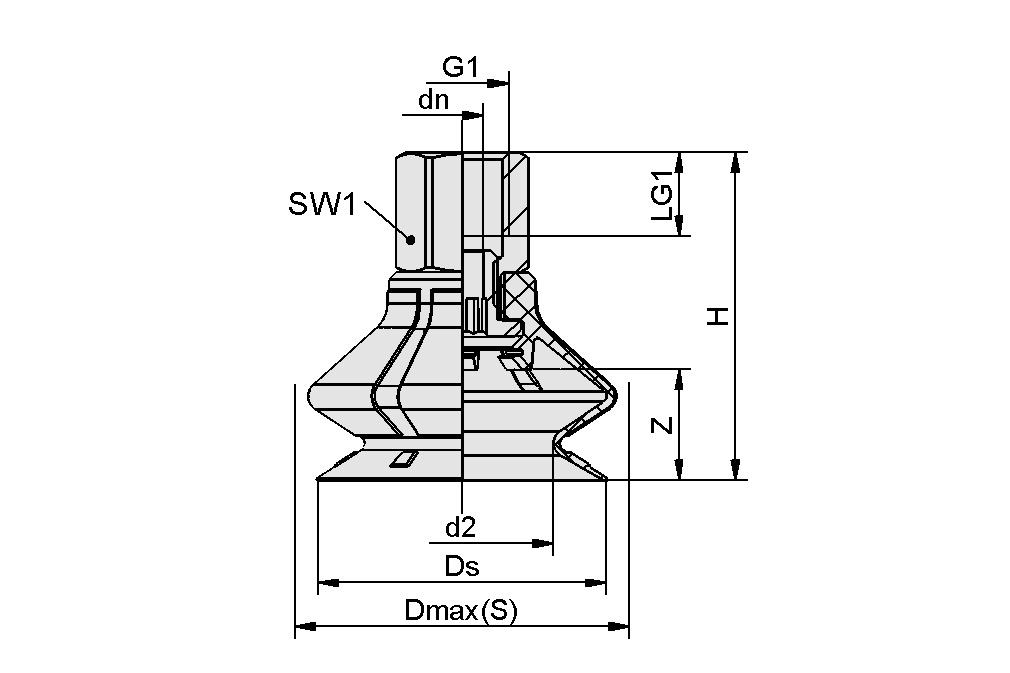

| d2 | 38.6 mm |
| dn | 6.1 mm |
| Dmax(S) | 69.6 mm |
| Ds | 61.4 mm |
| G1 | G1/4"-F |
| H | 53.2 mm |
| LG1 | 12 mm |
| SW1 | 17 mm |
| Z (Stroke) | 22 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 78 N |
| Pull-off force | 100.9 N |
| Lateral force | 49.4 N |
| Volume | 49.24 cm³ |
| Workpiece radius min. (convex) | 70 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Size | 60 |
| Number of folds | 1.5 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 Shore A |
| Weight | 33.9 g |
| Product family | SPB1 |
| Connection type | 050 |
| Connection | G1/4"-F |
| Length L1 | 26.5 (mm) |
| Fitting length | 17.2 (mm) |
| Nominal diameter dn | 6.1 (mm) |
| Size | 60 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Number of folds | 1.5 |
| Outside diameter D | 17.5 (mm) |
| Length L | 0.8 (mm) |
| Material | Brass / stainless steel |
| Filter pore size | 280 (µm) |
| Mesh size | 0.28 (mm) |
| Wire diameter | 0.16 (mm) |
