SPB4f 30 SI-HD-65 SC080
Part no.: 10.01.06.03563

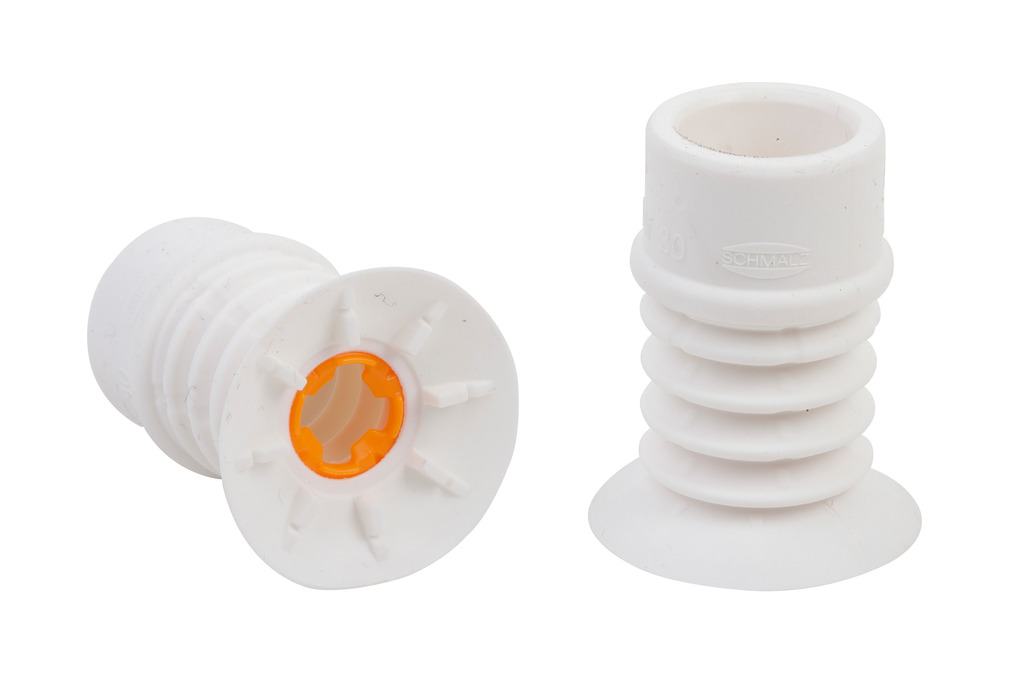

Bellows suction cup (round) for very uneven workpieces
| Size | 30 |
| Suction cup material | Silicone SI-HD |
| Material hardness [Shore A] | 65 (Shore A) |
| Number of folds | 4.5 |

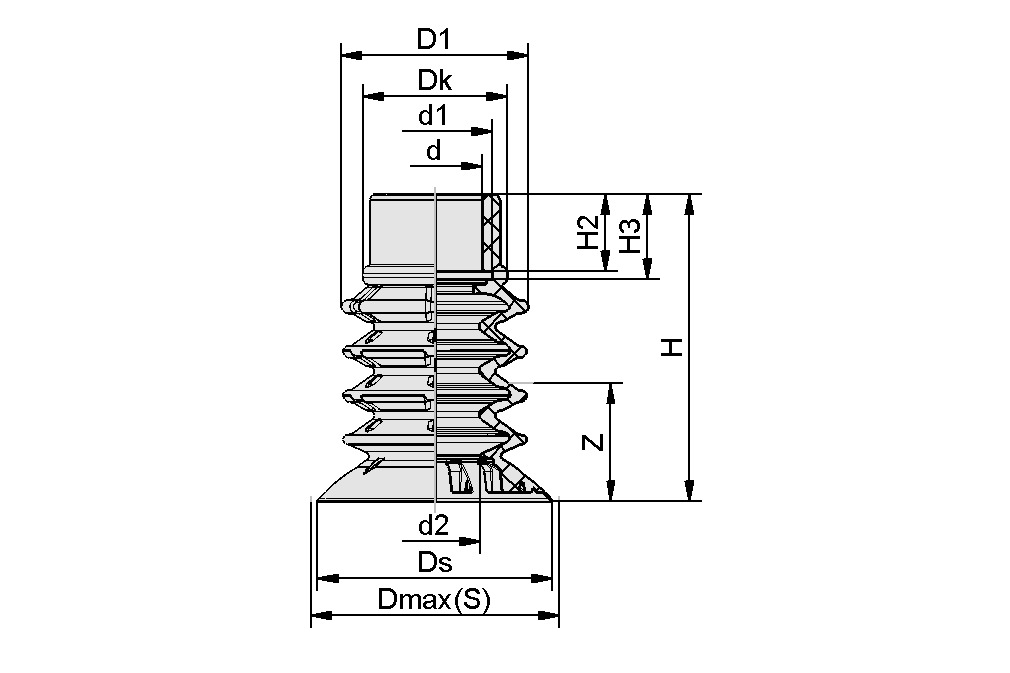

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 16 mm |
| d1 | 19.6 mm |
| d2 | 12.3 mm |
| D1 | 22.4 mm |
| Dk | 24.4 mm |
| Dmax(S) | 32 mm |
| Ds | 30.7 mm |
| H | 40 mm |
| H2 | 13 mm |
| H3 | 14.4 mm |
| Z (Stroke) | 11 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force at -200 mbar | 4.3 N |
| Suction force at -400 mbar | 8.5 N |
| Suction force (-600mbar) | 12.8 N |
| Volume | 5.99 cm³ |
| Size | 30 |
| Nipple family | SC 080 |
| Number of folds | 4.5 |
| Suction cup material | Silicone SI-HD |
| Material hardness [Shore A] | 65 Shore A |
| Weight | 6.2 g |
| Product family | SPB4f |
