SC 040 M5-AG10.01.06.04346Connection element for suction cup
"SchmalzConnector"
| Connection type | 040 |
| Fitting length | 5 (mm) |
| Nominal diameter dn | 1.8 (mm) |

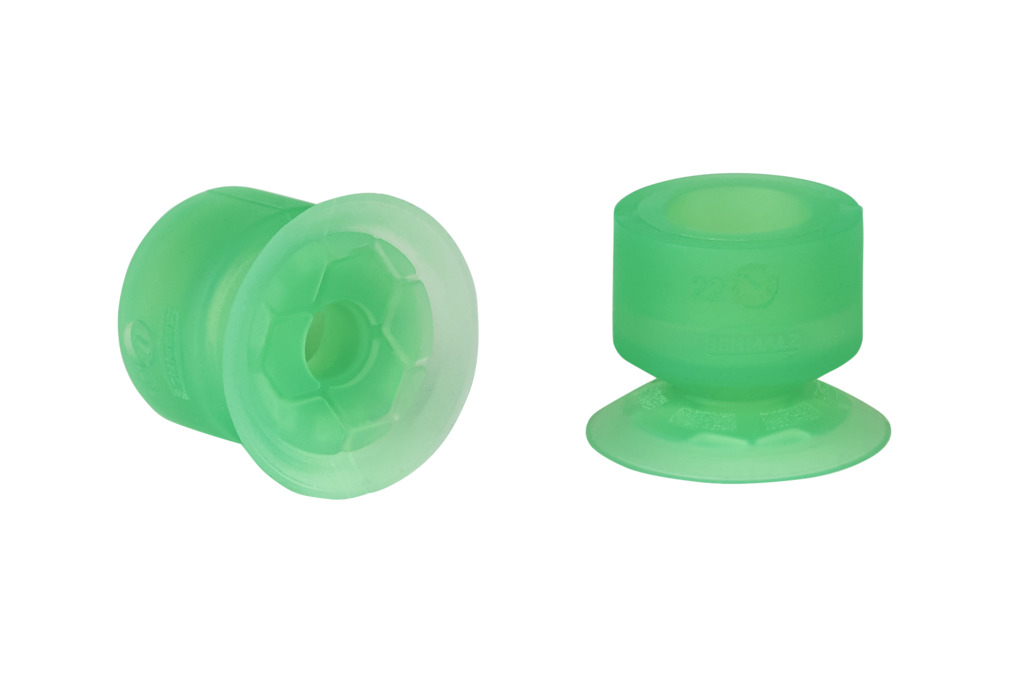

SFF 15 SI-55 SC040
Part no.: 10.01.01.13746
Flat suction cups (round) for the gentle handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
| Number of folds | 0 |

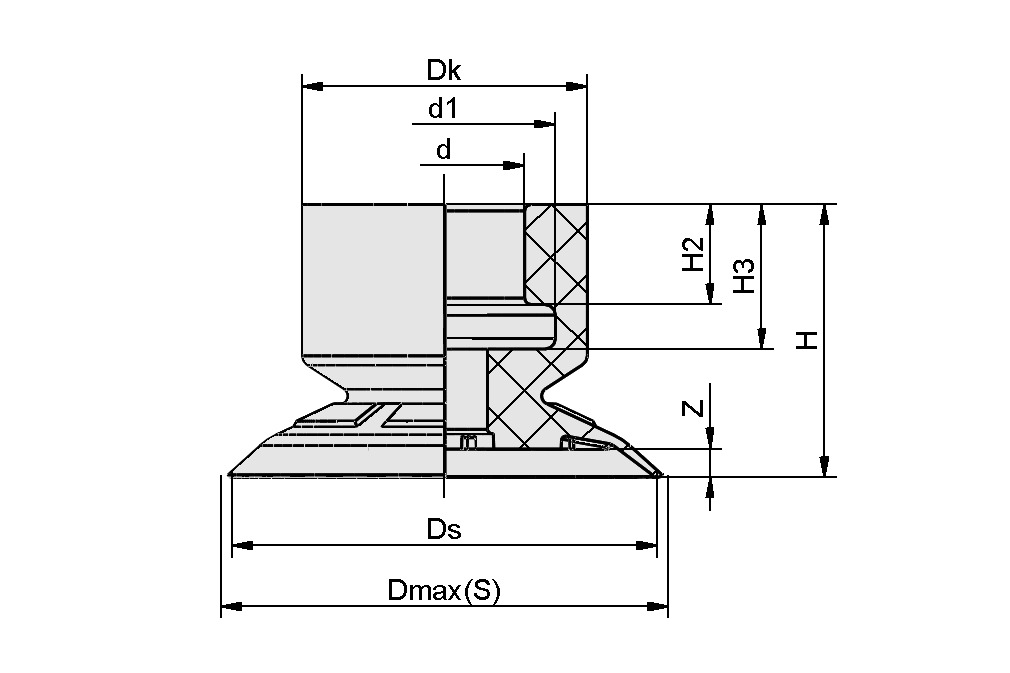

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dmax(S) | 16 mm |
| Dk | 13 mm |
| Ds | 15 mm |
| d | 7.5 mm |
| d1 | 10.4 mm |
| H | 12.5 mm |
| H2 | 4.7 mm |
| H3 | 6.8 mm |
| Z (Stroke) | 1 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Pull-off force | 5.8 N |
| Suction force (-600mbar) | 5.8 N |
| Volume | 0.6 cm³ |
| Size | 15 |
| Number of folds | 0 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Workpiece radius min. (convex) | 12.5 mm |
| Nipple family | SC 040 |
| Weight | 0.9 g |
| Product family | SFF |
Documentation
Documentation
Accessories
SC 040 G1/8-AG10.01.06.02490Connection element for suction cup
"SchmalzConnector"
| Connection type | 040 |
| Connection | G1/8"-M |
| Length L1 | 20.2 (mm) |
| Fitting length | 6 (mm) |
| Nominal diameter dn | 4.1 (mm) |
SC 040 G1/8-IG10.01.06.02482Connection element for suction cup
"SchmalzConnector"
| Connection type | 040 |
| Connection | G1/8"-F |
| Length L1 | 20.7 (mm) |
| Fitting length | 14 (mm) |
| Nominal diameter dn | 4.1 (mm) |
