Part no.: 10.01.01.14630

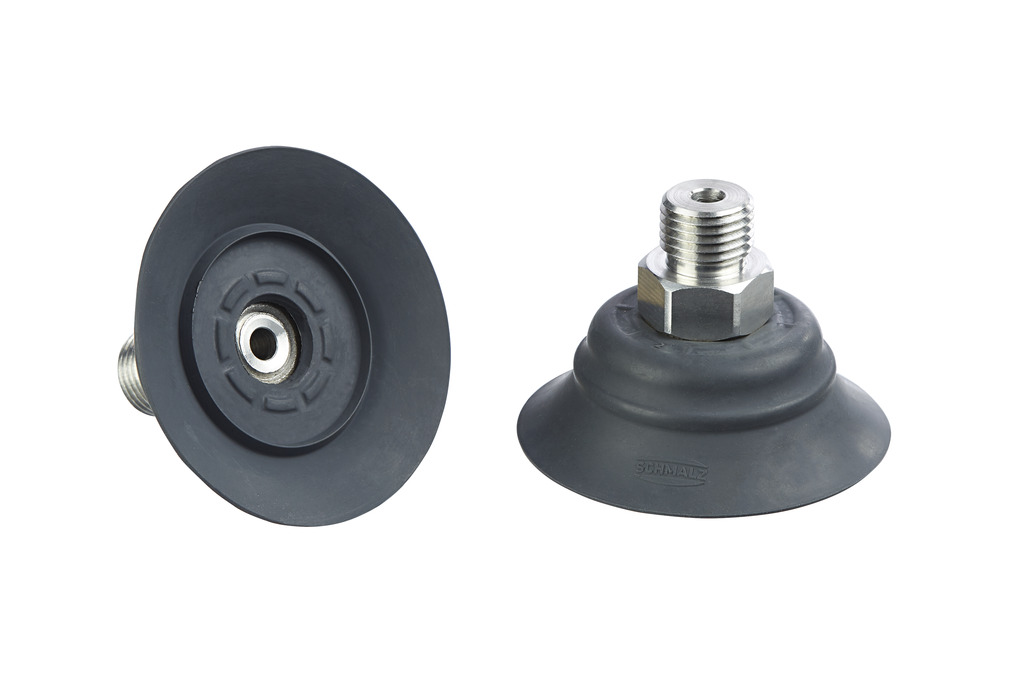

Flat suction cup (round) for highly dynamic handling of wood
| Size | 50 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Connection | G1/4-AG |
| Type | E |

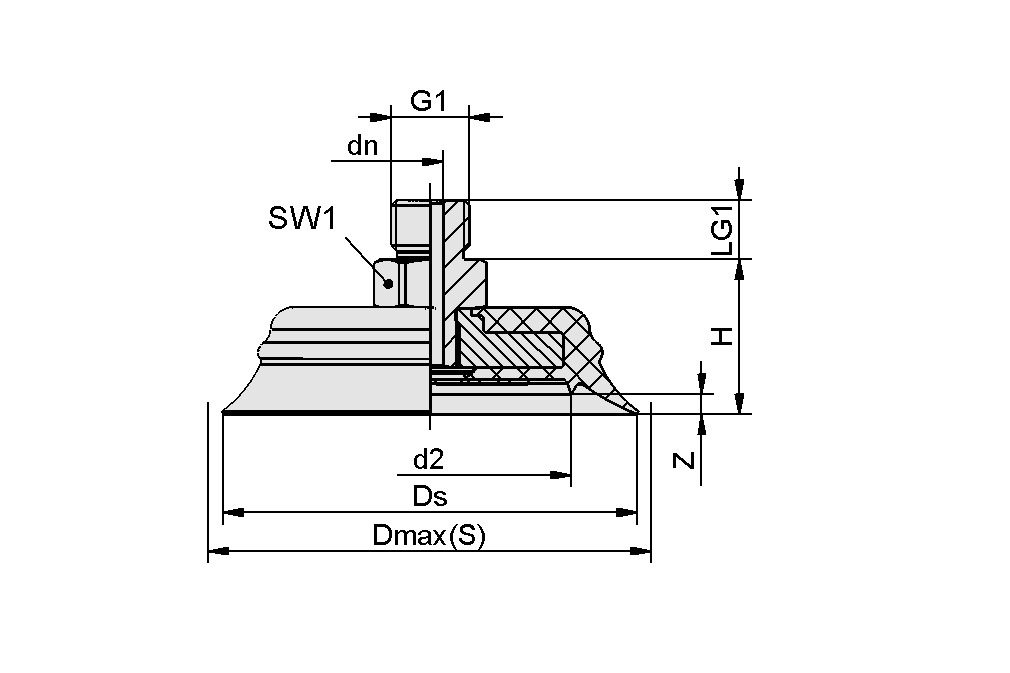

| Attribute | Value |
|---|---|
| d2 | 29.7 mm |
| dn | 4.4 mm |
| Dmax(S) | 54 mm |
| Ds | 52 mm |
| G1 | G1/4"-M |
| H | 26.2 mm |
| LG1 | 10 mm |
| SW1 | 17 mm |
| Z (Stroke) | 3.4 mm |
| Attribute | Value |
|---|---|
| Size | 50 |
| Suction cup material | Natural rubber NK |
| Suction force d2 | 40 N |
| Suction force (-600mbar) | 110 N |
| Lateral force | 90 N |
| Volume | 8 cm³ |
| Workpiece radius min. (convex) | 50 mm |
| Number of folds | 0 |
| Weight | 30.8 g |
| Product family | SHFN |
| Size | 50 |
| Thread G1 | M10x1.25-F |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Type | E |
| Thread G1 | G1/4"-M |
| Material | Aluminum |
| Outside diameter D | 14.5 (mm) |
| Length L | 1 (mm) |
| Material | Brass / stainless steel |
| Mesh size | 0.103 (mm) |
| Wire diameter | 0.15 (mm) |
