Part no.: 10.01.06.00241

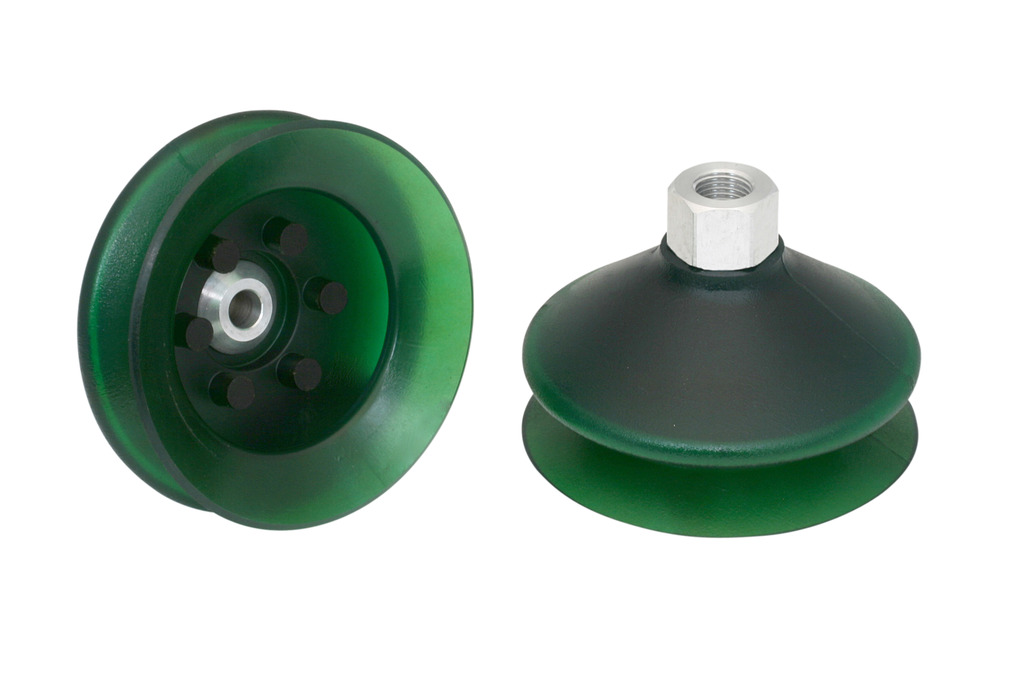

Bellows suction cup (round) with optimal adaptation to uneven surfaces
| Size | 85 |
| Suction cup material | Vulkollan VU1 |
| Material hardness [Shore A] | 72 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4"-F |
| Number of folds | 1.5 |

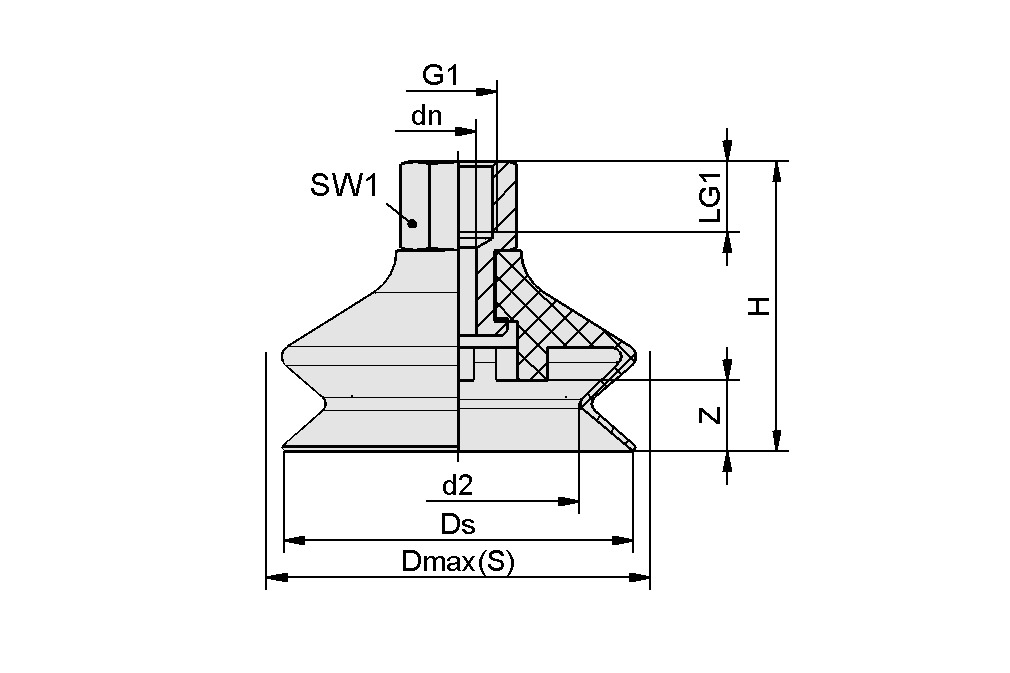

| Attribute | Value |
|---|---|
| d2 | 50.2 mm |
| dn | 6 mm |
| Dmax(S) | 86.5 mm |
| Ds | 82.5 mm |
| G1 | G1/4"-F |
| H | 62 mm |
| LG1 | 12 mm |
| SW1 | 22 mm |
| Z (Stroke) | 15 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 140 N |
| Pull-off force | 250 N |
| Volume | 80.21 cm³ |
| Workpiece radius min. (convex) | 80 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Size | 85 |
| Nipple family | N 015 |
| Suction cup material | Vulkollan VU1 |
| Material hardness [Shore A] | 72 Shore A |
| Weight | 113.8 g |
| Product family | FSGA |
| Number of folds | 1.5 |
| Thread G1 | G1/4"-F |
| Fitting length | 15 (mm) |
| Material | Aluminum |
| Outside diameter D | 18 (mm) |
| Nominal size | 600 |
| 6 (mm) |
| Size | 85 |
| Suction cup material | Vulkollan VU1 |
| Material hardness [Shore A] | 72 (Shore A) |
| Number of folds | 1.5 |
| Size | 85 |
| Suction cup material | Vulkollan VU1 |
| Material hardness [Shore A] | 72 (Shore A) |
| Number of folds | 1.5 |
