SC-A 045 G1/4-AG L10.01.06.02818Schmalz-Connector upper part
| Connection type | 045 |
| Thread G1 | G1/4"-M |
| Fitting length | 7.2 (mm) |
| Shape | Self Locking |
SAXM 40 ED-85 SC045
Part no.: 10.01.19.00005
High-Speed bell shaped suction cup (round) very dynamic handling of smooth and oily workpieces
| Size | 40 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |

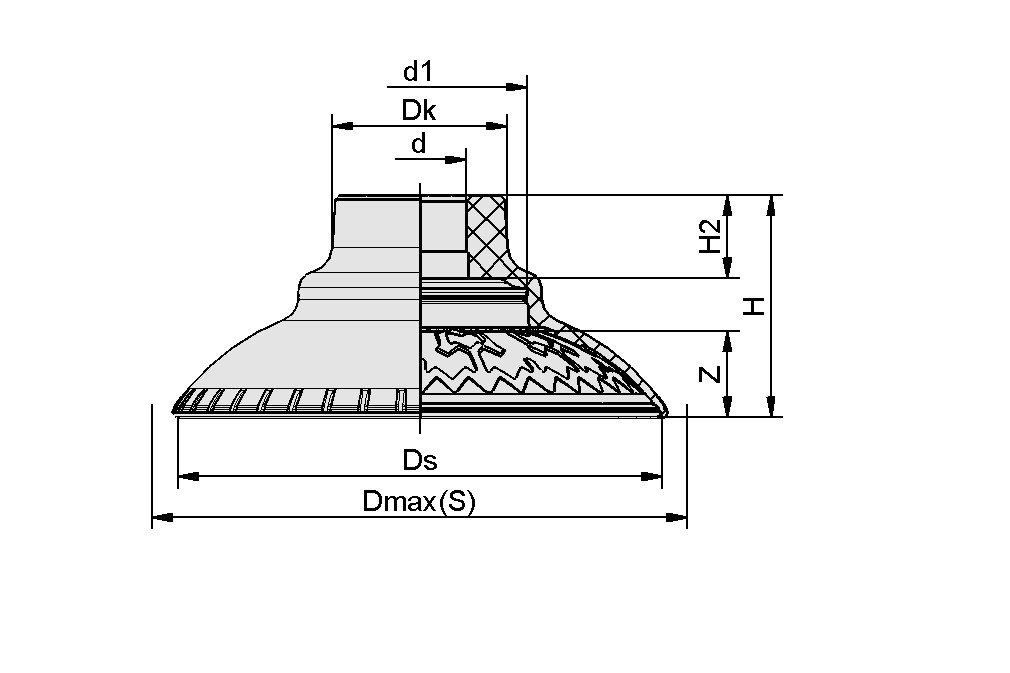

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 9.7 mm |
| d1 | 15.6 mm |
| Dk | 19.2 mm |
| Dmax(S) | 45.4 mm |
| Ds | 41.3 mm |
| H | 20.6 mm |
| H2 | 7 mm |
| Z (Stroke) | 6.9 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 69 N |
| Lateral force | 38 N |
| Lateral force oily surface | 71 N |
| Volume | 8.32 cm³ |
| Workpiece radius min. (convex) | 25 mm |
| Hose inner diameter (recom.) d | 5 mm |
| Size | 40 |
| Nipple family | SC 045 |
| Number of folds | 0 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 Shore A |
| Weight | 4.3 g |
| Product family | SAXM |
Documentation
Documentation
Accessories
SC-A 045 G1/4-IG L10.01.06.02736Schmalz-Connector upper part
| Connection type | 045 |
| Thread G1 | G1/4"-F |
| Fitting length | 17.2 (mm) |
| Shape | Self Locking |
SC-A 045 G3/8-AG L10.01.06.02807Schmalz-Connector upper part
| Connection type | 045 |
| Thread G1 | G3/8"-M |
| Fitting length | 7.7 (mm) |
| Shape | Self Locking |
SC-A 045 G3/8-IG L10.01.06.02737Schmalz-Connector upper part
| Connection type | 045 |
| Thread G1 | G3/8"-F |
| Fitting length | 17.2 (mm) |
| Shape | Self Locking |
SC-A 045 M10-AG L10.01.06.02819Schmalz-Connector upper part
| Connection type | 045 |
| Thread G1 | M10-M |
| Fitting length | 7.2 (mm) |
| Shape | Self Locking |
SC-A 045 M14x1.5-AG L10.01.06.02820Schmalz-Connector upper part
| Connection type | 045 |
| Thread G1 | M14x1.5-M |
| Fitting length | 7.2 (mm) |
| Shape | Self Locking |
SC-A 045 RA L10.01.06.02813Schmalz-Connector upper part
| Connection type | 045 |
| Fitting length | 9.5 (mm) |
| Shape | Self Locking |
