SAOXB 110x55 ED-85 SC043
Part no.: 10.01.06.05783
High-speed bellows suction cup for adaptation to strongly curved and oiled surfaces
| Dimension (LxW) | 110x55 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Number of folds | 1.5 |

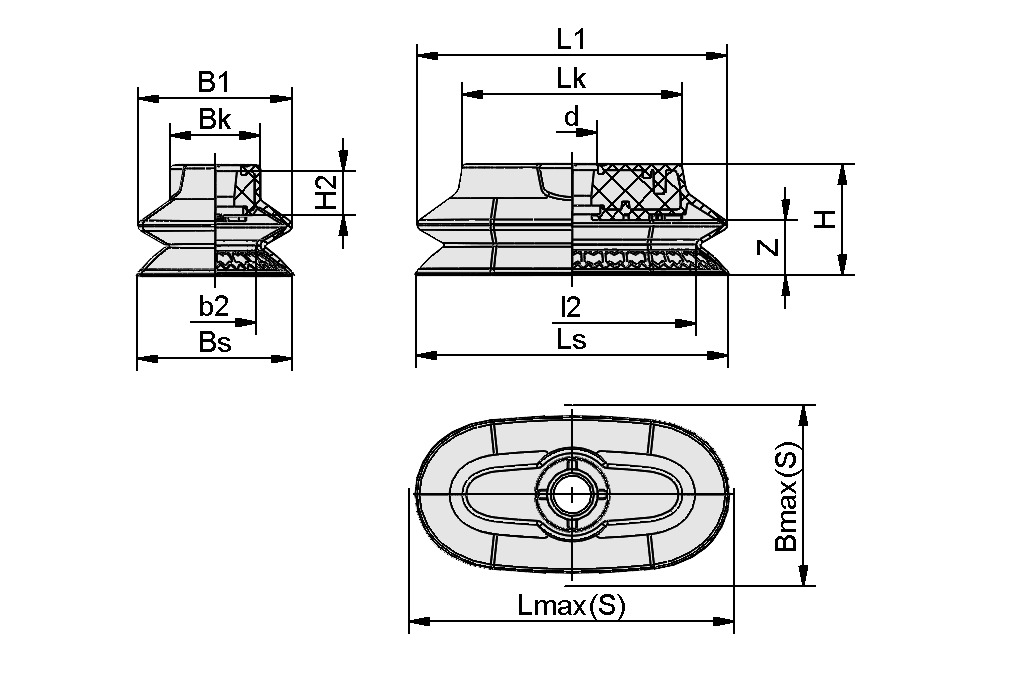

Design Data
Design Data
| Attribute | Value |
|---|---|
| H | 34.4 mm |
| Z (Stroke) | 17 mm |
| B1 | 53.3 mm |
| Bk | 34 mm |
| H2 | 1.5 mm |
| b2 | 33.5 mm |
| Bs | 54 mm |
| L1 | 108.5 mm |
| Lk | 79.3 mm |
| l2 | 89 mm |
| Ls | 110 mm |
| Bmax(S) | 60 mm |
| Lmax.(S) | 114 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction cup material | Elastodur ED |
| Product family | SAOXB |
