Part no.: 10.01.01.14163

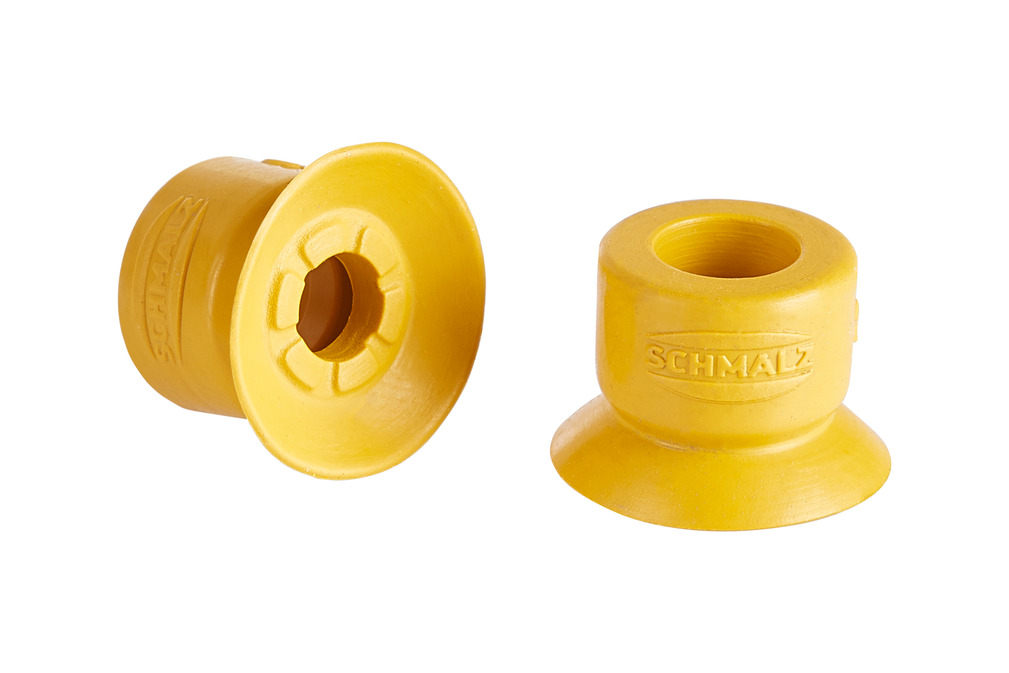

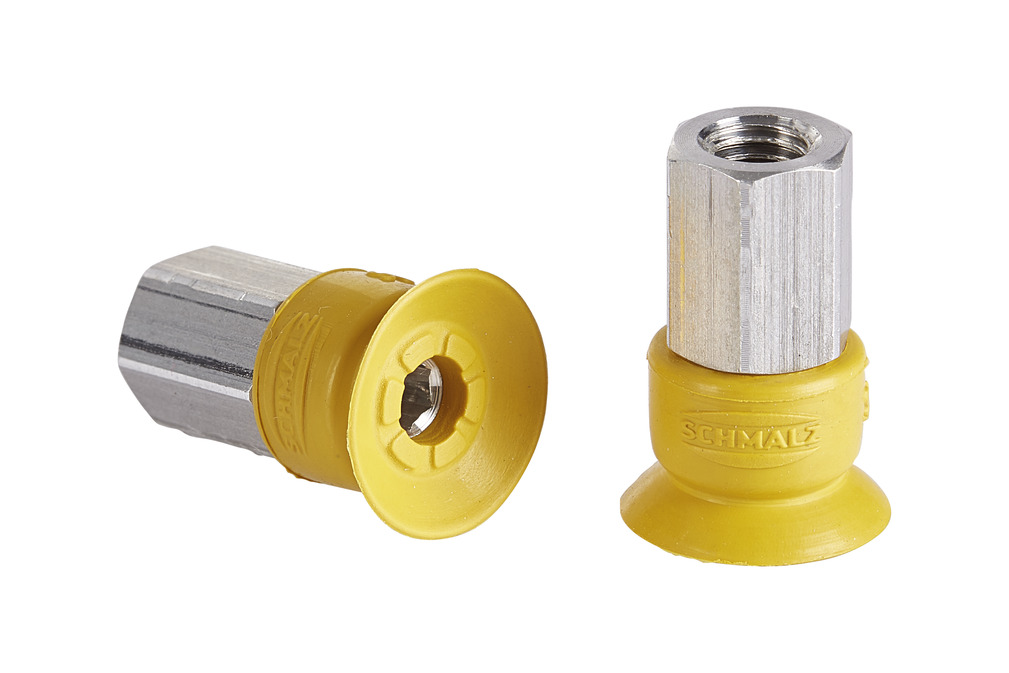

Flat suction cup (round) for process safe handling of smooth or slightly rough surfaces
| Size | 12 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SUF |
| Attribute | Value |
|---|---|

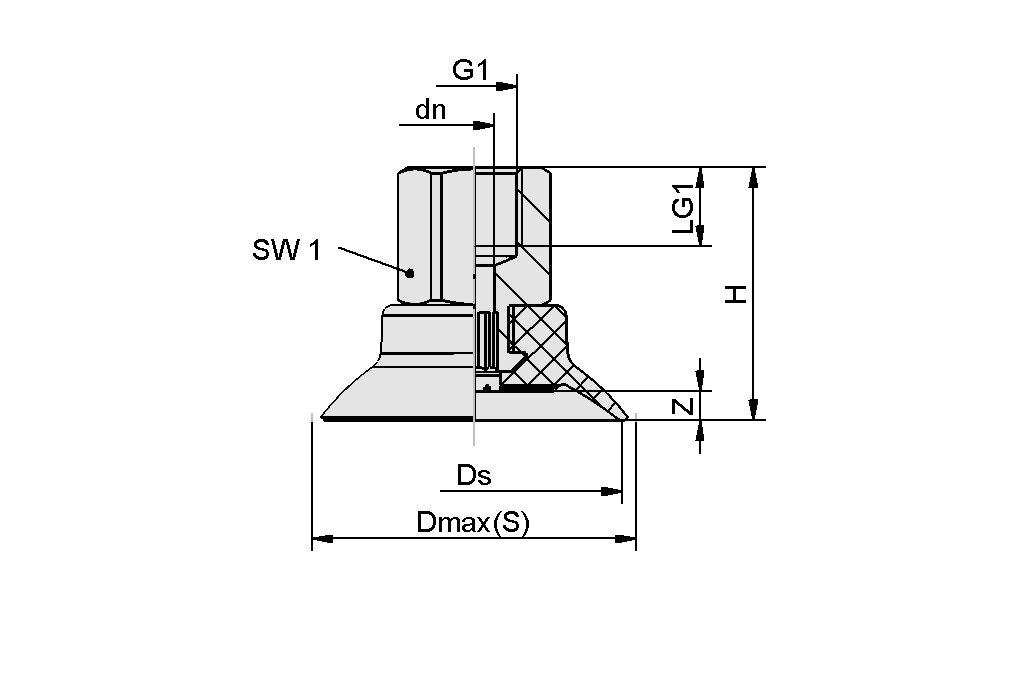

| Dmax(S) | 13.2 mm |
| Ds | 12 mm |
| dn | 3.1 mm |
| G1 | M5-F |
| H | 18.6 mm |
| LG1 | 5.5 mm |
| SW1 | 8 mm |
| Z (Stroke) | 1.2 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 5 N |
| Pull-off force | 5 N |
| Volume | 0.12 cm³ |
| Workpiece radius min. (convex) | 12.5 mm |
| Hose inner diameter (recom.) d | 2 mm |
| Size | 12 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 1.9 g |
| Product family | SUF |
| Number of folds | 0 |
| Connection type | 030 |
| Connection | M5-F |
| Length L1 | 15.8 (mm) |
| Fitting length | 10 (mm) |
| Nominal diameter dn | 3.1 (mm) |
| Size | 12 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
