SA-NIP N029 G1/8-IG DN35010.01.01.00815Suction cup connection nipple
| Thread G1 | G1/8"-F |
| Fitting length | 13 (mm) |
| Material | Aluminum |

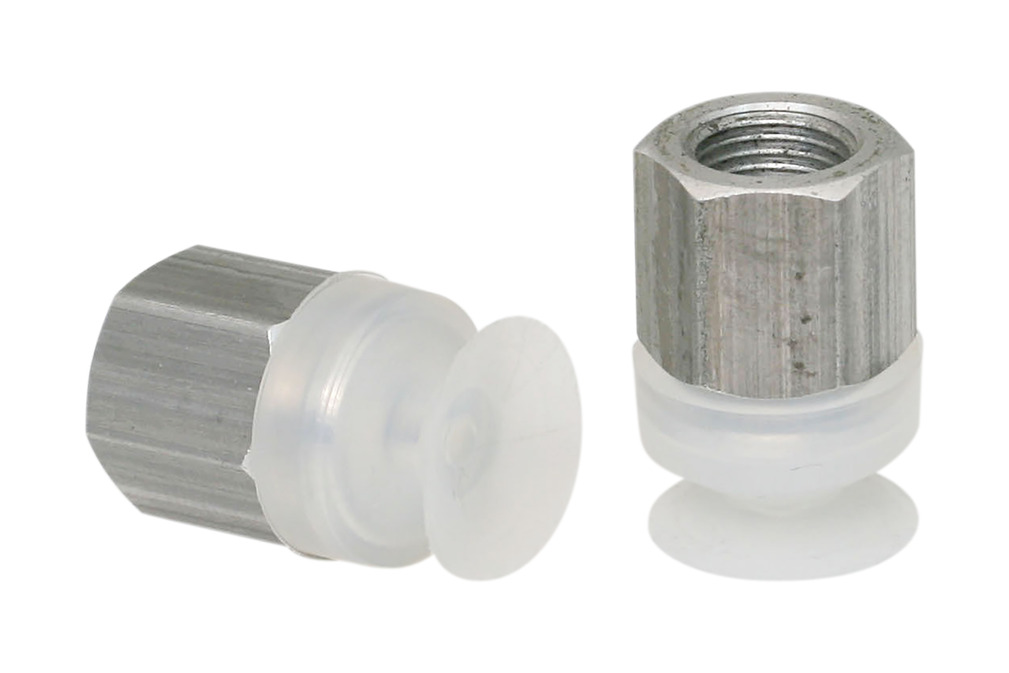

SGAN 16 SI-55 G1/8-IG
Part no.: 10.01.01.00809
Flat suction cup (round) for particularly sensitive workpieces
| Size | 16 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Connection | G1/8"-F |

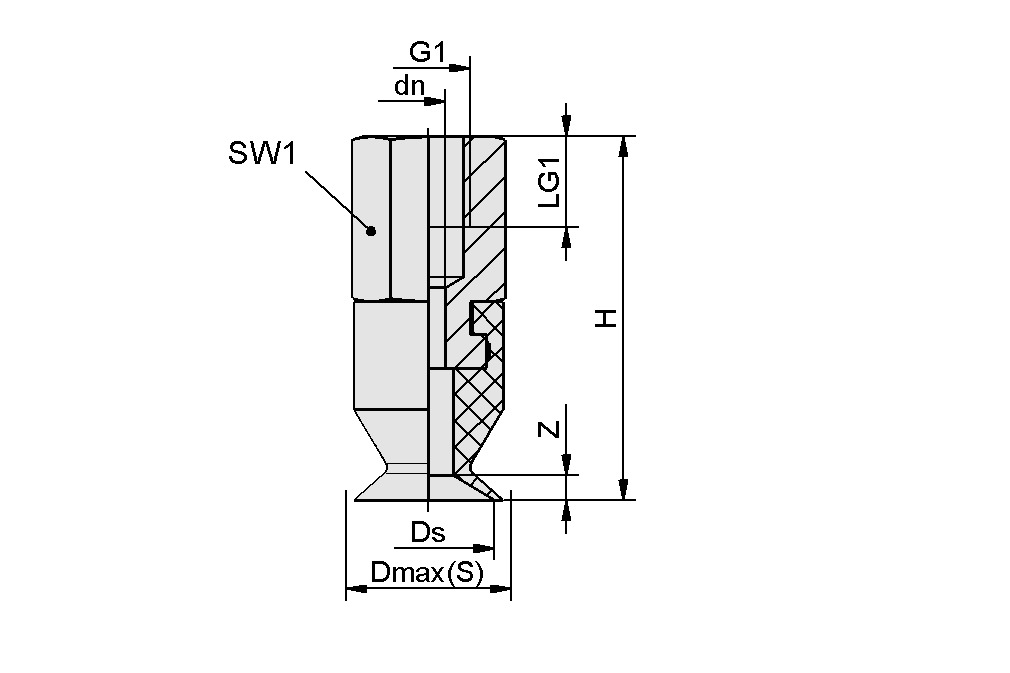

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 3 mm |
| Dmax(S) | 17.5 mm |
| Ds | 15 mm |
| G1 | G1/8"-F |
| H | 25 mm |
| LG1 | 8 mm |
| SW1 | 14 mm |
| Z (Stroke) | 2 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 6.9 N |
| Volume | 0.61 cm³ |
| Workpiece radius min. (convex) | 15 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 16 |
| Nipple family | N 029 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 6.5 g |
| Number of folds | 0 |
| Product family | SGAN |
Documentation
Documentation
Spare parts
SGA 16 SI-55 N02910.01.01.00452Flat suction cup (round)
| Size | 16 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
