SUF 18 SI-CO-55 SC030

Part no.: 10.01.01.14035

Flat suction cup (round) f. process- safe handling of smooth or slightly rough surfaces

Size	18
Suction cup material	Silicone SI conductive
Material hardness [Shore A]	55 (Shore A)

Product information

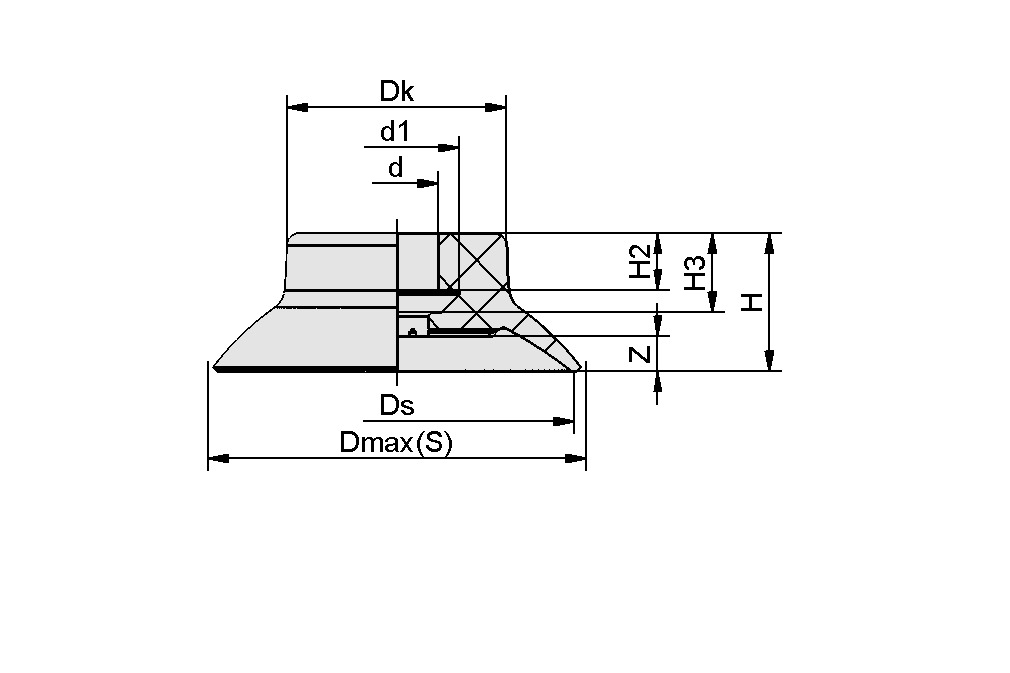

Design Data

Attribute	Value
d1	7.3 mm
d	5.3 mm
Dk	11.5 mm
Dmax(S)	20.6 mm
Ds	18 mm
H	9.3 mm
H2	4.3 mm
H3	5.8 mm
Z (Stroke)	1.8 mm

Technical Data

Attribute	Value
Suction force (-600mbar)	13 N
Pull-off force	13 N
Volume	0.37 cm³
Workpiece radius min. (convex)	20 mm
Size	18
Interface nipple family	SC030
Suction cup material	Silicone SI conductive
Material hardness [Shore A]	55 Shore A
Weight	1.1 g
Product family	SUF

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
