PFG 15 NBR-ESD-55 N005

Part no.: 10.01.01.13871

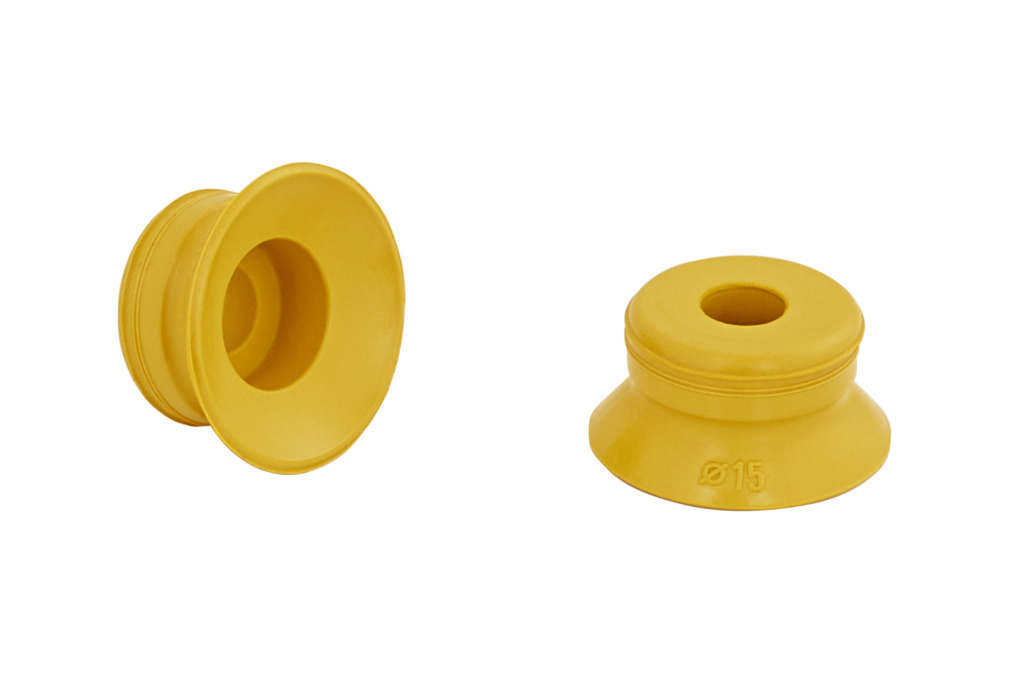

Flat suction cup (round) for smooth or slightly rough surfaces

Size	15
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)

Product information

Design Data

Attribute	Value
d	4.5 mm
d1	7.8 mm
Dk	12.2 mm
Dmax(S)	17.5 mm
Ds	15 mm
H	8 mm
H2	2.6 mm
Z (Stroke)	1.9 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	9 N
Volume	0.43 cm³
Workpiece radius min. (convex)	12.5 mm
Size	15
Nipple family	N 005
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 Shore A
Product family	PFG

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
