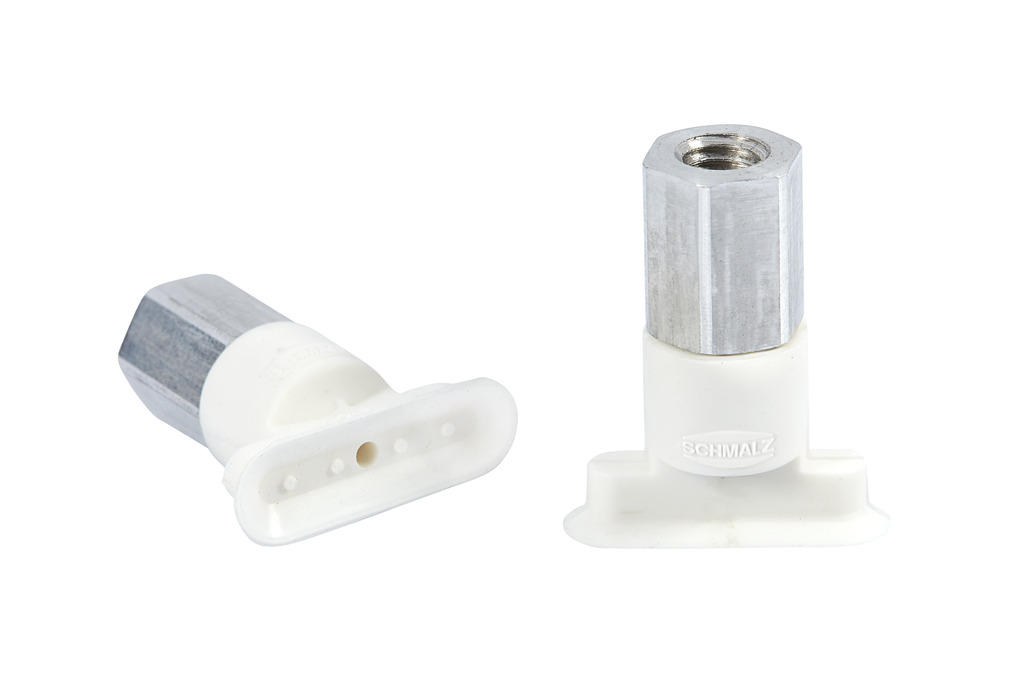

SGON 18x6 SI-HD-65 M5-IG

Part no.: 10.01.05.01049

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)	18x6
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)
Nipple material	Aluminum
Connection	M5-F

Product information

Design Data

Attribute	Value
Bmax(S)	7 mm
Bs	6 mm
dn	1.5 mm
G1	M5-F
H	22 mm
LG1	5.5 mm
Lmax.(S)	18.5 mm
Ls	18 mm
SW1	8 mm
Z (Stroke)	0.8 mm

Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3.

Technical Data

Attribute	Value
Dimension (LxW)	18x6
Suction force (-600mbar)	4.5 N
Volume	0.06 cm³
Workpiece radius min. (convex)	4 mm
Hose inner diameter (recom.) d	2 mm
Number of folds	0
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 Shore A
Weight	3.8 g
Product family	SGON

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
