Part no.: 10.01.05.00095

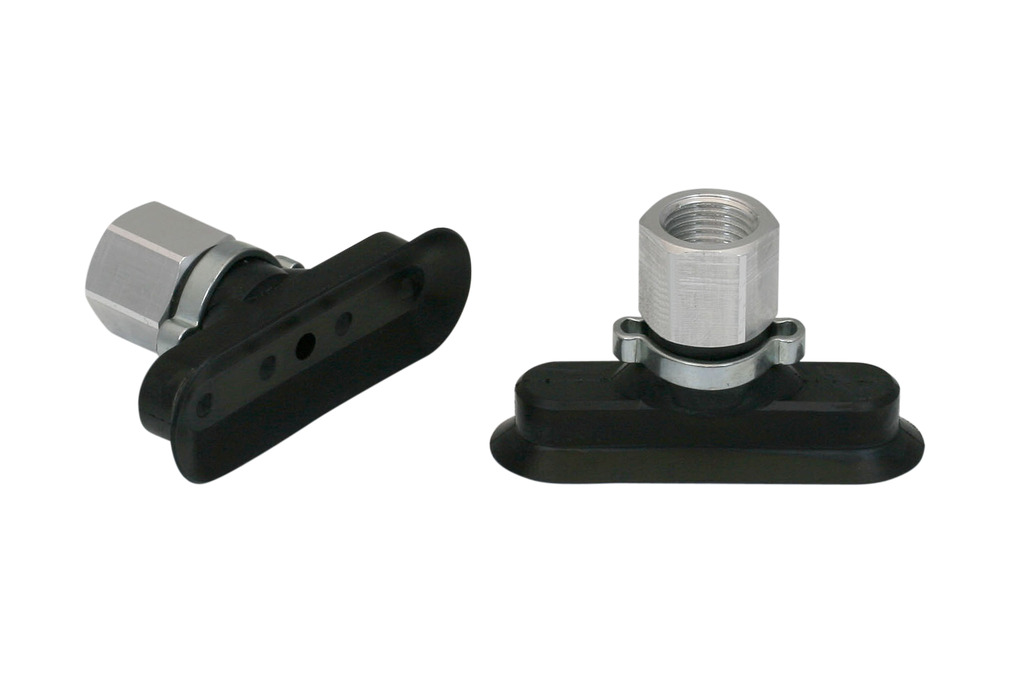

Flat suction cup (oval) for long and also curved workpieces
| Dimension (LxW) | 60x20 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4"-F |
| Attribute | Value |
|---|---|
| Bmax(S) | 22 mm |
| Bs | 20 mm |
| dn | 3.5 mm |
| G1 | G1/4"-F |
| H | 36 mm |
| LG1 | 12 mm |
| Lmax.(S) | 61 mm |
| Ls | 60 mm |
| SW1 | 17 mm |
| Z (Stroke) | 2.5 mm |
| Attribute | Value |
|---|---|
| Dimension (LxW) | 60x20 |
| Suction force (-600mbar) | 50.1 N |
| Volume | 3.61 cm³ |
| Workpiece radius min. (convex) | 20 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 18.5 g |
| Product family | SGON |
| Thread G1 | G1/4"-F |
| Length L1 | 25 (mm) |
| Fitting length | 15 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
| Dimension (LxW) | 60x20 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
