Part no.: 10.01.05.00092

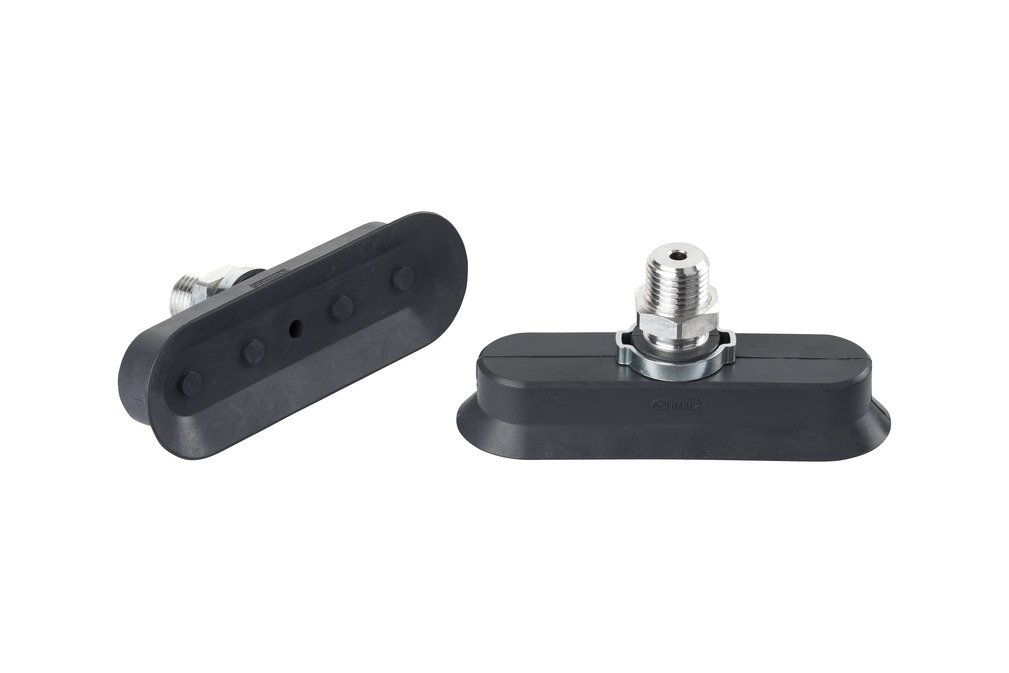

Flat suction cup (oval) for long and also curved workpieces
| Dimension (LxW) | 90x30 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 70 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4"-M |
| Attribute | Value |
|---|---|

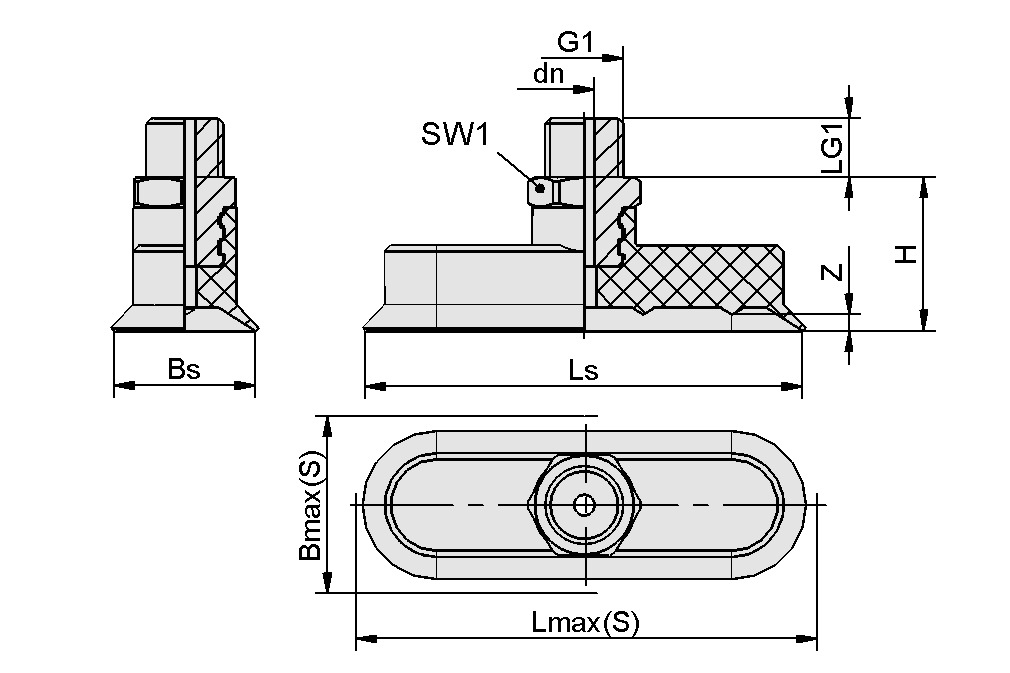

| Bmax(S) | 33 mm |
| Bs | 30 mm |
| dn | 3.5 mm |
| G1 | G1/4"-M |
| H | 26 mm |
| LG1 | 10 mm |
| Lmax.(S) | 92.5 mm |
| Ls | 90 mm |
| SW1 | 17 mm |
| Z (Stroke) | 3.5 mm |
| Attribute | Value |
|---|---|
| Dimension (LxW) | 90x30 |
| Suction force (-600mbar) | 112.6 N |
| Volume | 9.47 cm³ |
| Workpiece radius min. (convex) | 35 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 70 Shore A |
| Weight | 34.8 g |
| Product family | SGON |
| Thread G1 | G1/4"-M |
| Length L1 | 25 (mm) |
| Fitting length | 5 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
| Thread G1 | G1/4"-F |
| Length L1 | 25 (mm) |
| Fitting length | 15 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
| Dimension (LxW) | 90x30 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 70 (Shore A) |
