SAB 80 HT2-65 G1/4-IG
Part no.: 10.01.06.03356

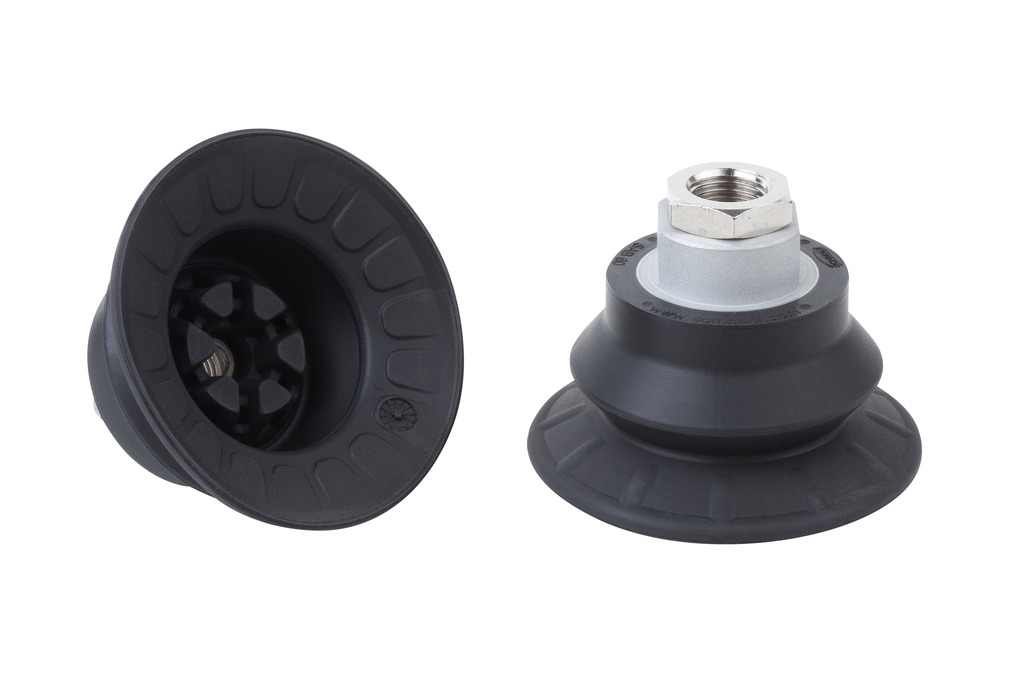

Bellows suction cup (round) for handling hot workpieces
| Size | 80 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Temperature resistance | 200 (°C) |
| Nipple material | Aluminum |
| Connection | G1/4-IG |
| Number of folds | 1.5 |

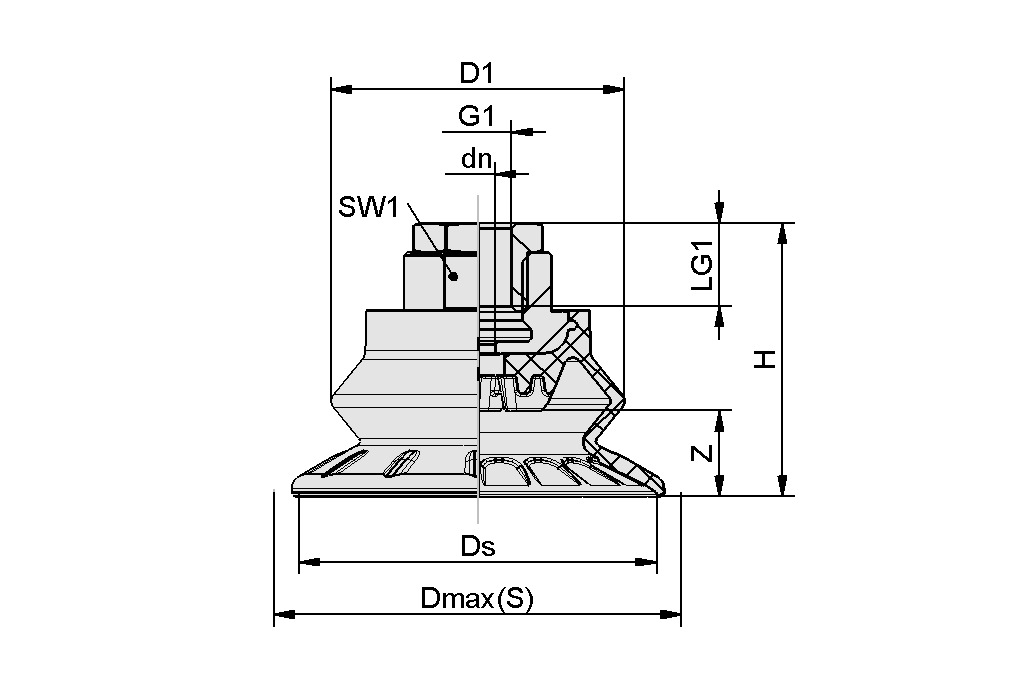

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 6 mm |
| D1 | 65 mm |
| Dmax(S) | 88 mm |
| Ds | 81.2 mm |
| G1 | G1/4"-F |
| H | 54.8 mm |
| LG1 | 15 mm |
| SW1 | 22 mm |
| Z (Stroke) | 22 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 135 N |
| Pull-off force | 238 N |
| Lateral force | 217 N |
| Volume | 67.6 cm³ |
| Workpiece radius min. (convex) | 40 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Size | 80 |
| Connection | G1/4"-F |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 Shore A |
| Weight | 99.1 g |
| Number of folds | 1.5 |
| Product family | SAB |
