SAB 80 NBR-60 M16-AG

Part no.: 10.01.06.03631

Bellows suction cup (round) for very dynamic handling of smooth and oily workpieces

Size	80
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 (Shore A)
Nipple material	Aluminum
Connection	M16-AG
Number of folds	1.5

Product information

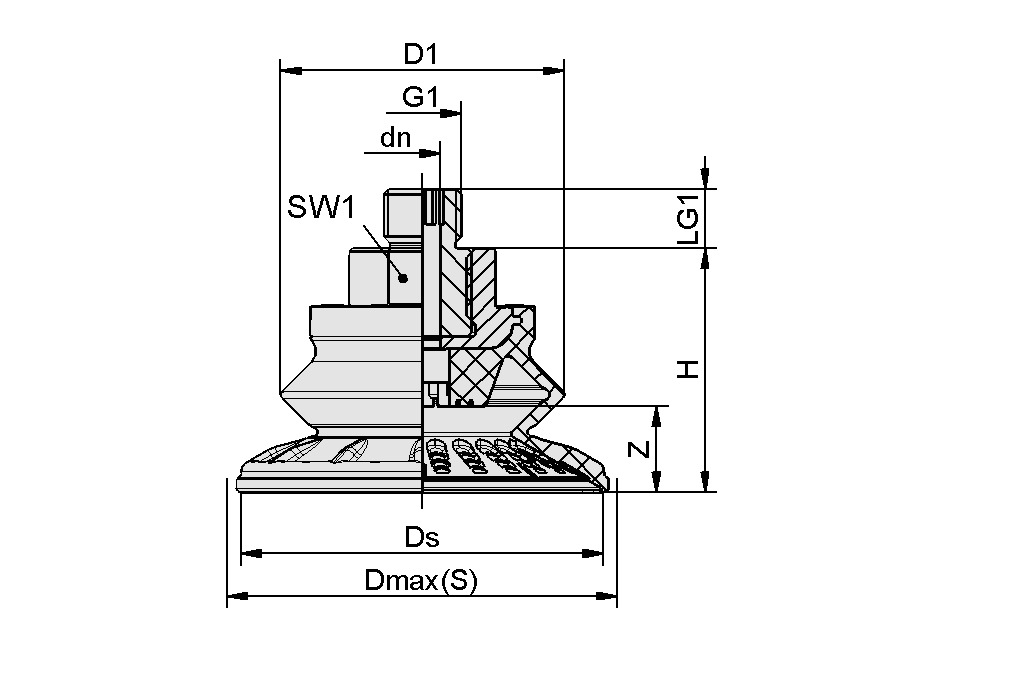

Design Data

Attribute	Value
dn	6 mm
D1	63.6 mm
Dmax(S)	89 mm
Ds	81.1 mm
G1	M16-M
H	49.9 mm
LG1	10 mm
SW1	22 mm
Z (Stroke)	22.1 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	135 N
Pull-off force	221 N
Lateral force	205 N
Lateral force oily surface	140 N
Volume	67.6 cm³
Workpiece radius min. (convex)	75 mm
Hose inner diameter (recom.) d	6 mm
Size	80
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 Shore A
Weight	73.1 g
Product family	SAB
Number of folds	1.5

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
