Part no.: 10.01.06.01246

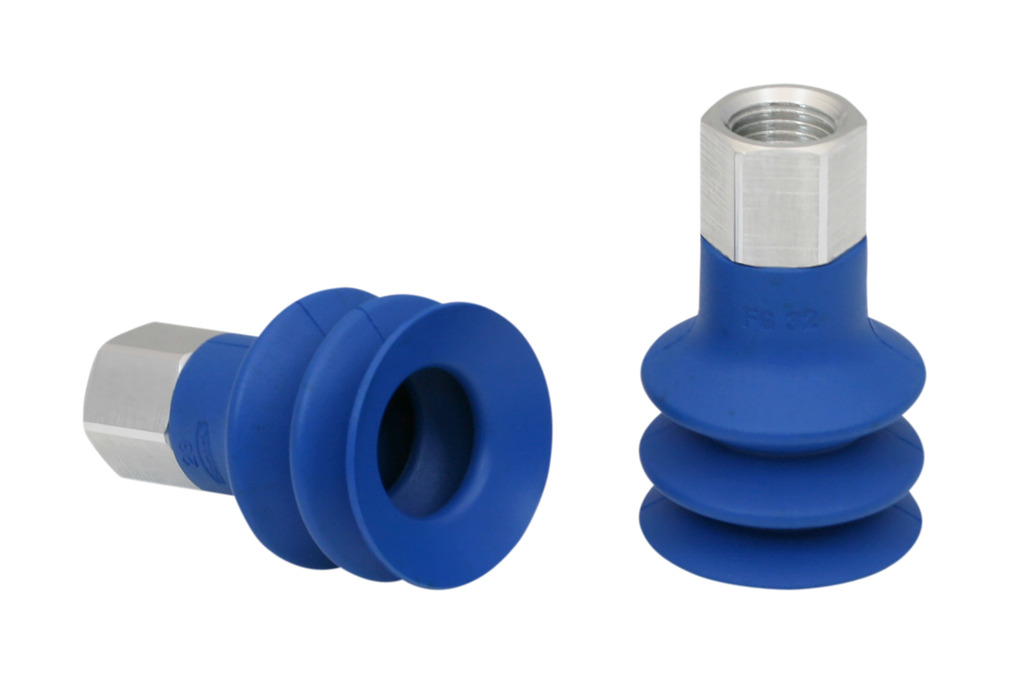

Bellows suction cup (round) for very uneven workpieces
| Size | 32 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4"-F |
| Number of folds | 2.5 |
| Product family | FSG |

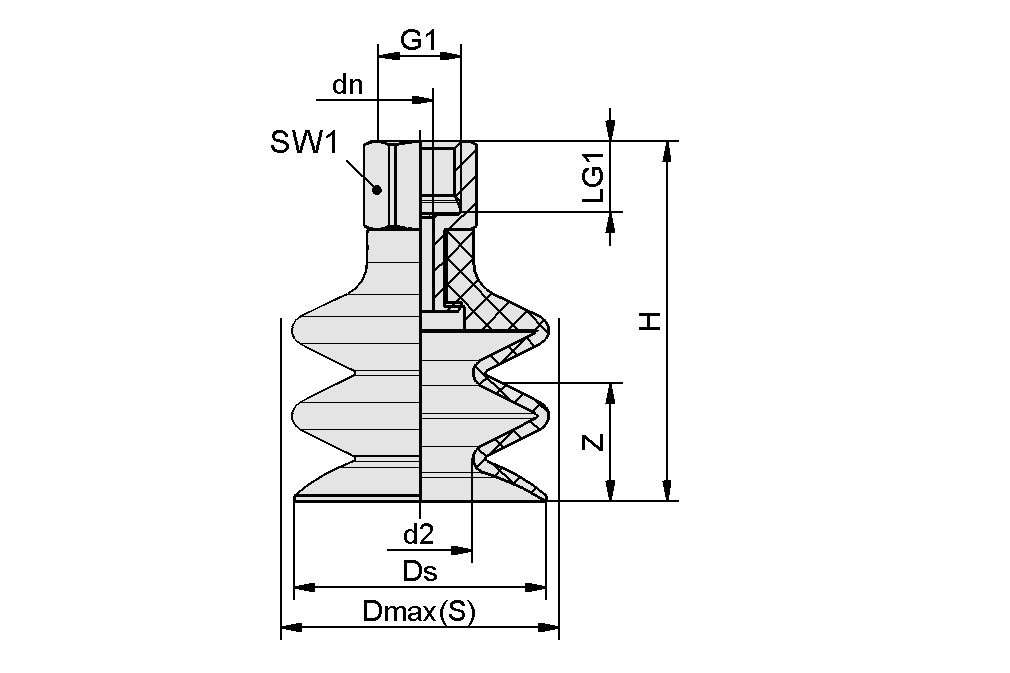

| Attribute | Value |
|---|---|
| d2 | 16 mm |
| dn | 4.4 mm |
| Dmax(S) | 33.5 mm |
| Ds | 32 mm |
| G1 | G1/4"-F |
| H | 52.5 mm |
| LG1 | 12 mm |
| SW1 | 17 mm |
| Z (Stroke) | 15 mm |
| Attribute | Value |
|---|---|
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Size | 32 |
| Number of folds | 2.5 |
| Connection | G1/4-IG |
| Workpiece radius min. (convex) | 35 mm |
| Volume | 9.77 cm³ |
| Suction force (-600mbar) | 12.06 N |
| Pull-off force | 36.9 N |
| Hose inner diameter (recom.) d | 6 mm |
| Weight | 18 g |
| Product family | FSG |
| Nipple family | N 018 |
| Thread G1 | G1/4"-F |
| Length L1 | 28.8 (mm) |
| Fitting length | 15 (mm) |
| Nominal diameter dn | 4.4 (mm) |
| 5 (mm) | |
| Material | Aluminum |
| Size | 32 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Number of folds | 2.5 |
| Outside diameter D | 32 (mm) |
| Internal diameter d | 19 (mm) |
| Height H | 2 (mm) |
| Sealing material | Silicone SI |
| Material hardness [Shore A] | 15 (Shore A) |
| Outside diameter D | 27 (mm) |
| Filter pore size | 120 (µm) |
| Utilization design | Bellows suction cup |
| Size | FG 32 |
| Size | 32 |
| Material | Polyetheretherketon |
| Size | 30 |
| Clamping range [mm] | 27.0 ... 35.0 mm |
| Temperature resistance | 80 (°C) |
