FGA 33 SI-MD-55 N018
Part no.: 10.01.06.04096

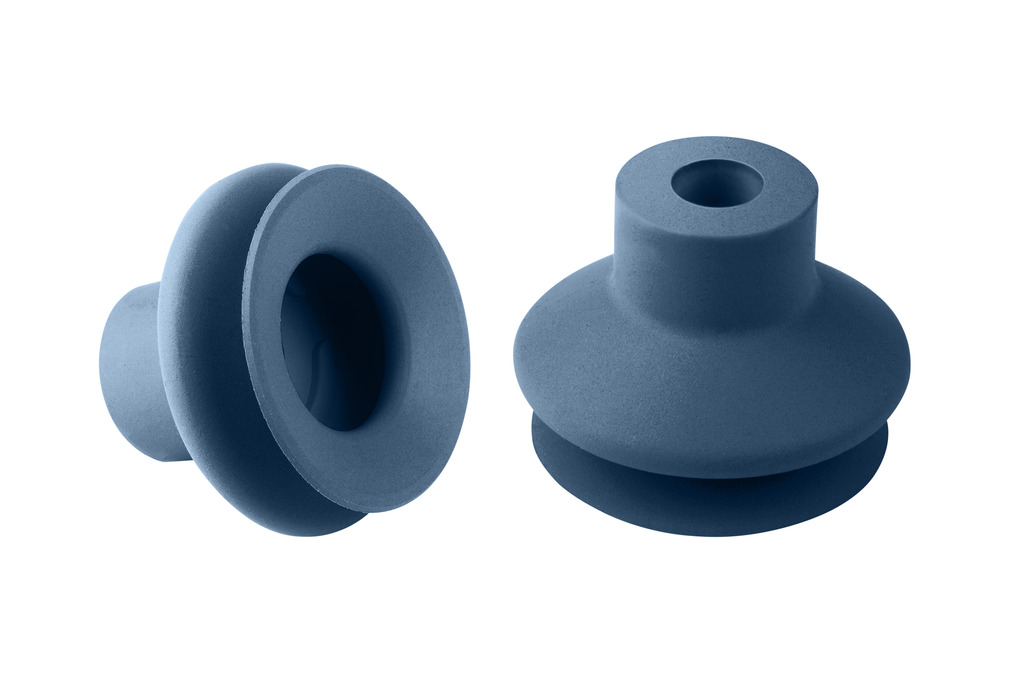

Bellows suction cup (round) with optimal adaptation to uneven surfaces
| Size | 33 |
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Number of folds | 1.5 |

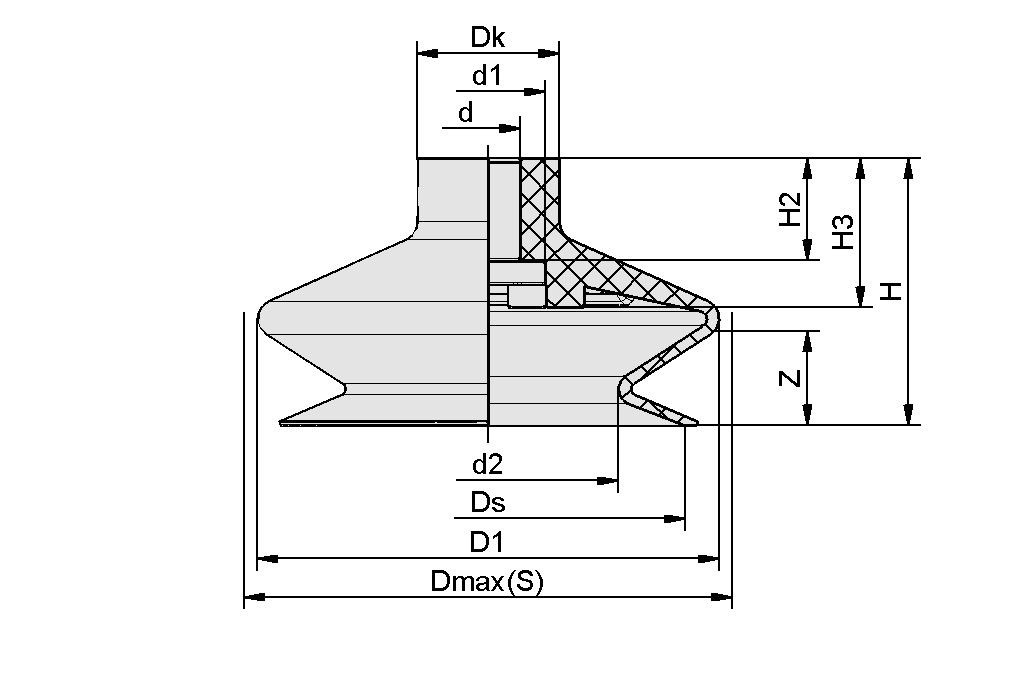

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 8 mm |
| d1 | 16 mm |
| d2 | 17 mm |
| D1 | 36 mm |
| Dk | 18 mm |
| Dmax(S) | 38 mm |
| Ds | 30 mm |
| H | 27 mm |
| H2 | 13 mm |
| H3 | 14 mm |
| Z (Stroke) | 9 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 1.5 |
| Suction force (-600mbar) | 13.6 N |
| Size | 33 |
| Suction cup material | Silicone SI metal detectable |
| Weight | 6.8 g |
| Workpiece radius min. (convex) | 40 mm |
| Product family | FGA |
