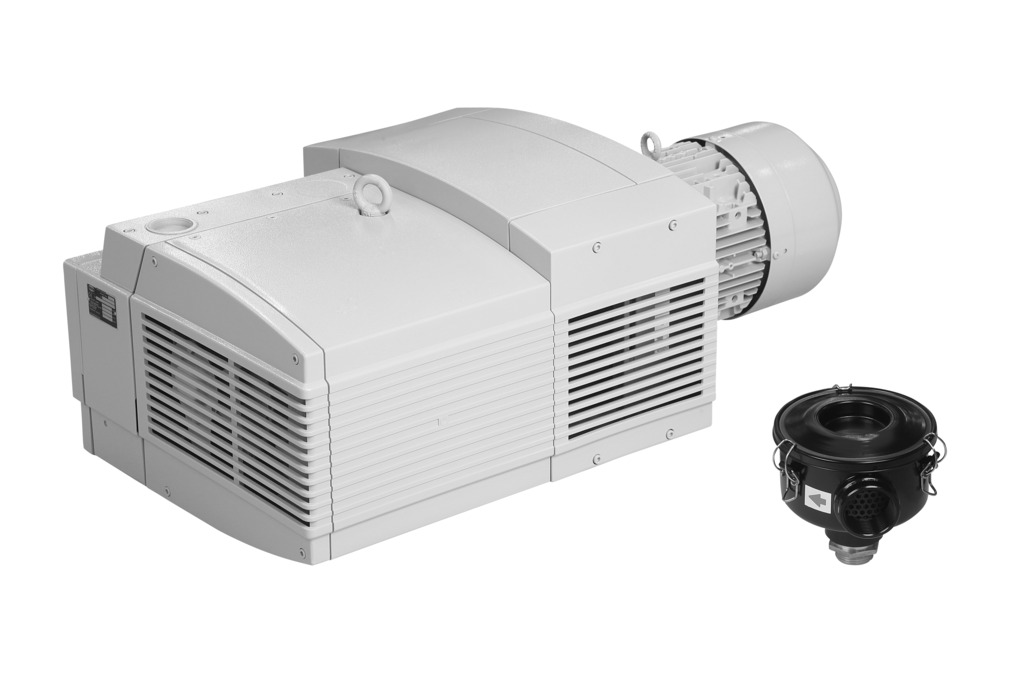

EVE-TR-X 140 AC3 IE3-TYP3 F-VB
Part no.: 10.03.01.00423
Oil-free pump with const. suct. rate robust, requ. little maintenance long service life, cont. operation
| Current type | Three phase A.C. |
| Voltage at 50 Hz | D200 V / Y350 V ±10 % |
| Voltage at 60 Hz | D220 V / Y380 - 400 V ±10 % |
| Voltage 60 Hz | S069 |
| Voltage at 60 Hz optimal | D200 / Y350 V ±10 % (without IE3) |
| Suction rate (50 Hz) | 129 (m³/h) |
| Suction rate (60 Hz) | 154 (m³/h) |
| Sound pressure level at 50 Hz | 76 (dB(A)) |
| Vacuum (50 Hz) | -900 (mbar) |
| Vacuum (60 Hz) | -800 (mbar) |
| Version | IE3:JPN/KOR/BRA |
| with | F-VB |
| Rated power at 50 Hz | 4 (kW) |
| Rated power at 60 Hz | 4.5 (kW) |
| Approval | UL/CSA |
| Weight | 119.5 (kg) |
| Approval | UL/CSA |

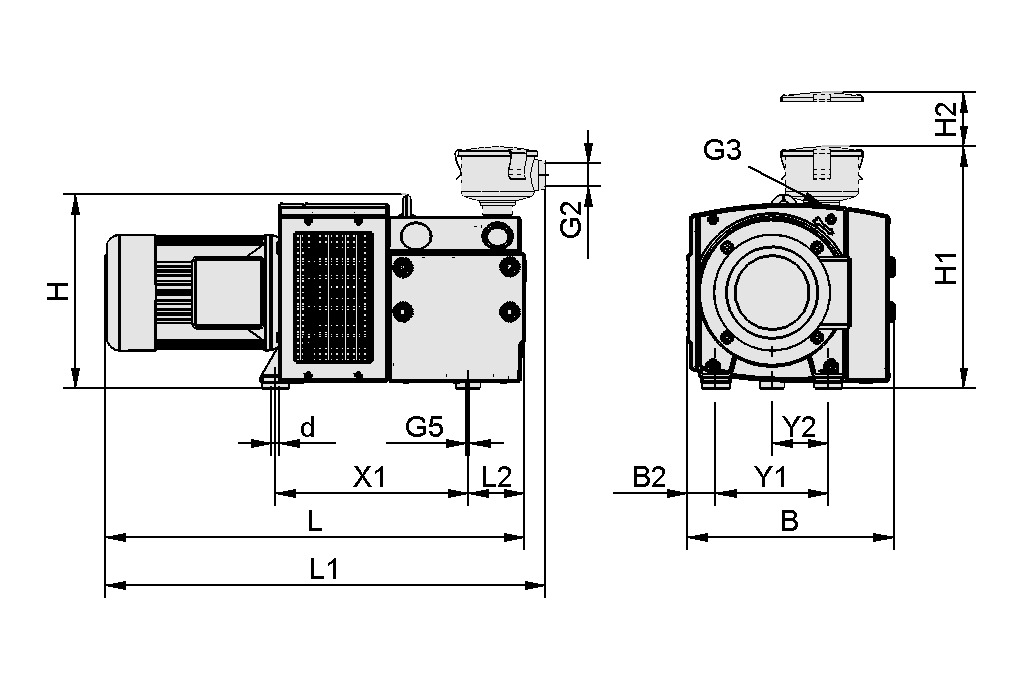

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 470 mm |
| B2 | 107.5 mm |
| d | 12 mm |
| G2 | G1-1/4"-F |
| G3 | G1-1/2"-F |
| G5 | M8-F |
| H | 336 mm |
| H1 | 425.7 mm |
| H2 | 75 mm |
| L | 862 mm |
| L1 | 869.7 mm |
| L2 | 140 mm |
| X1 | 398 mm |
| Y1 | 245 mm |
| Y2 | 122.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 129 m³/h |
| Suction rate (60 Hz) | 154 m³/h |
| Voltage at 50 Hz | D200 V / Y350 V ±10 % |
| Voltage at 60 Hz | D220 V / Y380 - 400 V ±10 % |
| Rated power at 50 Hz | 4 kW |
| Rated power at 60 Hz | 4.5 kW |
| Sound pressure level at 50 Hz | 76 dB(A) |
| Weight | 119.5 kg |
| Protection type IP | IP 55 |
| Supply voltage | AC3 |
| Product family | EVE-TR-X |
