Product information

VZ-OG 165 AC3 200

Part no.: 10.03.04.00166

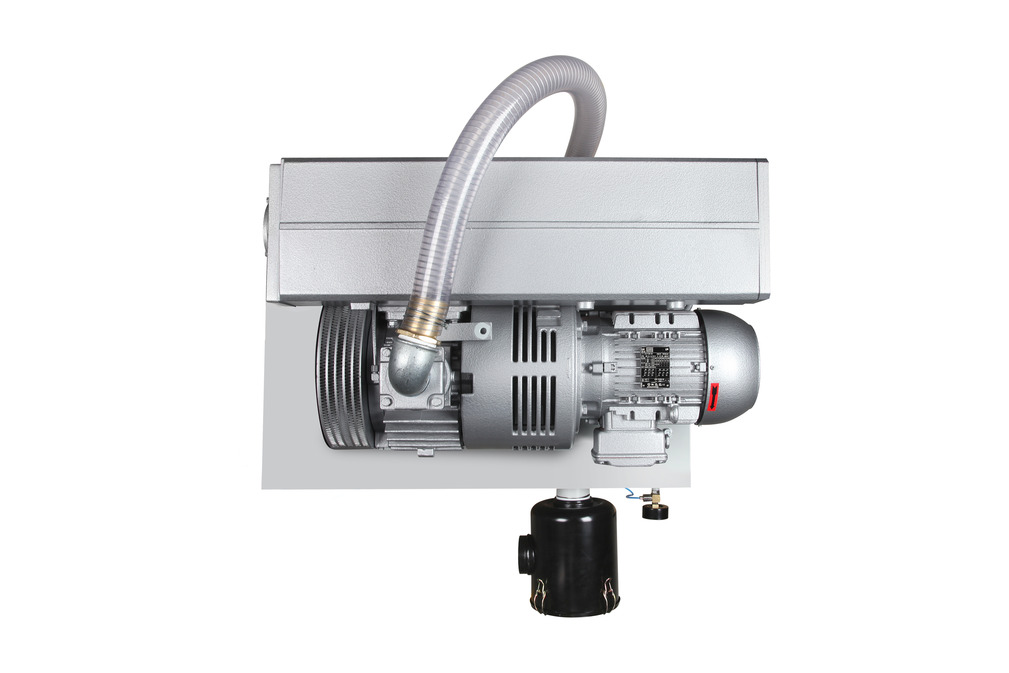

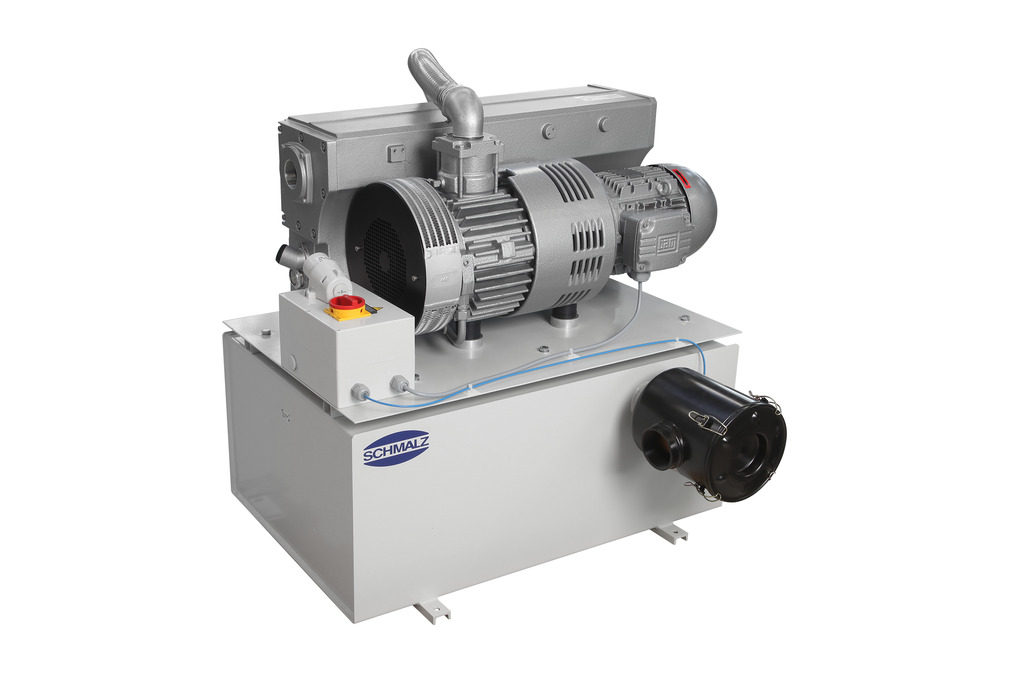

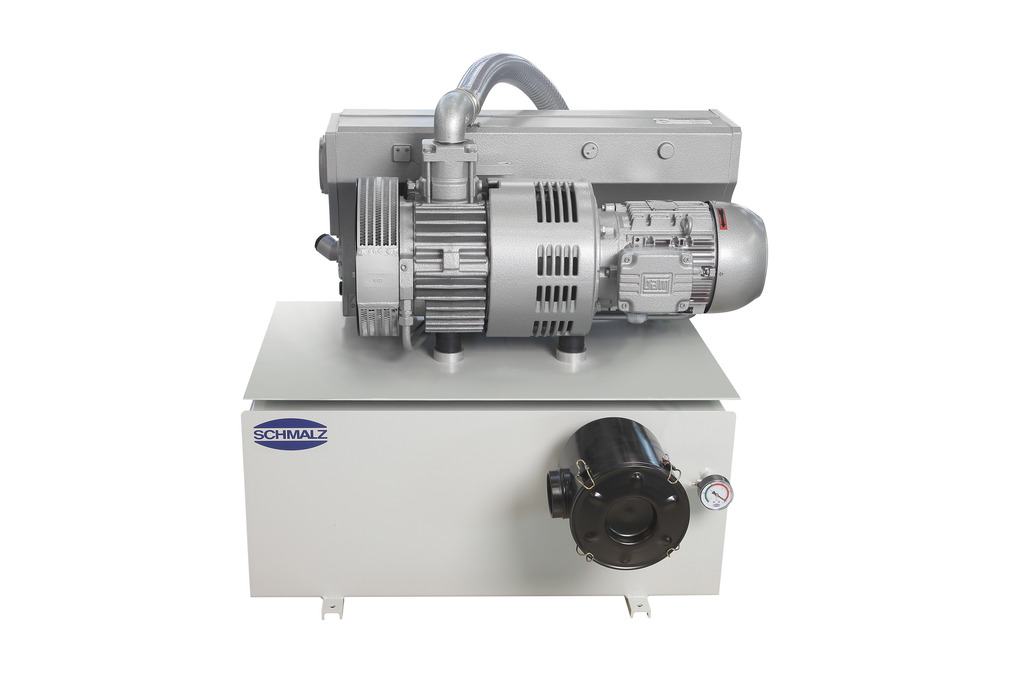

Vacuum centre with oil-lubricated pump and vacuum reservoir

Suction rate -800	165 (m³/h)
Voltage	230/400 V, 50 Hz
Reservoir volume	200 (l)

Product information

Design Data

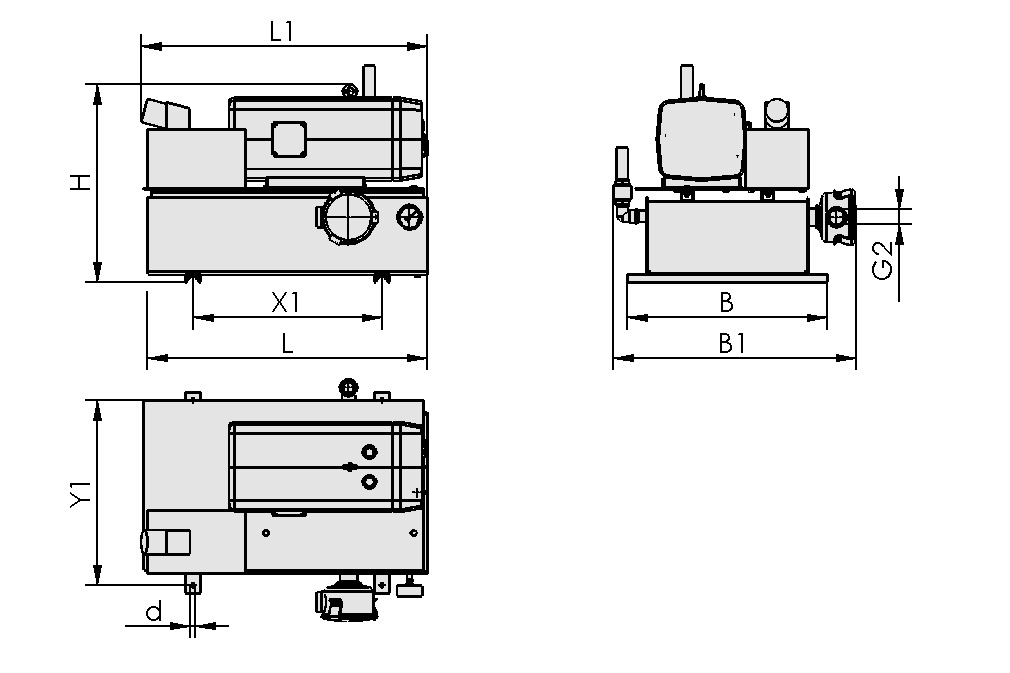

Design image

Attribute	Value
B	710 mm
B1	1,040 mm
d	11 mm
G2	G2-1/2-F
H	950 mm
L	910 mm
L1	1,040 mm
X1	592 mm
Y1	670 mm

Technical Data

Attribute	Value
Max. vacuum	-980 mbar
Voltage	230/400 V, 50 Hz
Motor power	4 kW
Reservoir volume	200 l
Suction rate -800	165 m³/h
Protection type IP	IP 54
Weight	271 kg
Product family	VZ

Documentation

Spare parts

FILT-EINS 3 150x222 PAP STF-2-1/2-IG

FILT-EINS 3 150x222 PAP STF-2-1/2-IG 10.07.01.00020 Filter insert (round)

Filter pore size	3 (µm)
Outside diameter D	150 (mm)
Length L	222 (mm)
Filter material	Paper
Utilization design	Dust filter STF
Size	2-1/2-IG

OEL-FILT EVE-OG-250

OEL-FILT EVE-OG-250 10.03.02.00011 Oil filter

Size	250
Utilization design	Pump EVE-OG

VST EVE-OG-165-255

VST EVE-OG-165-255 10.03.02.00057 Set of parts subject to wear pump

Utilization design	Pump EVE-OG
Size	165-255

Accessories

OEL EVE-OG 1L ANDEROL 555

OEL EVE-OG 1L ANDEROL 555 27.02.01.00055 Oil

Utilization design

Pump EVE-OG

OEL EVE-OG 5L ANDEROL 555

OEL EVE-OG 5L ANDEROL 555 27.02.01.00056 Oil

Utilization design

Pump EVE-OG
