- PHASE-OUT ITEM
VZ-OG 63 AC3 100
Part no.: 10.03.04.00138

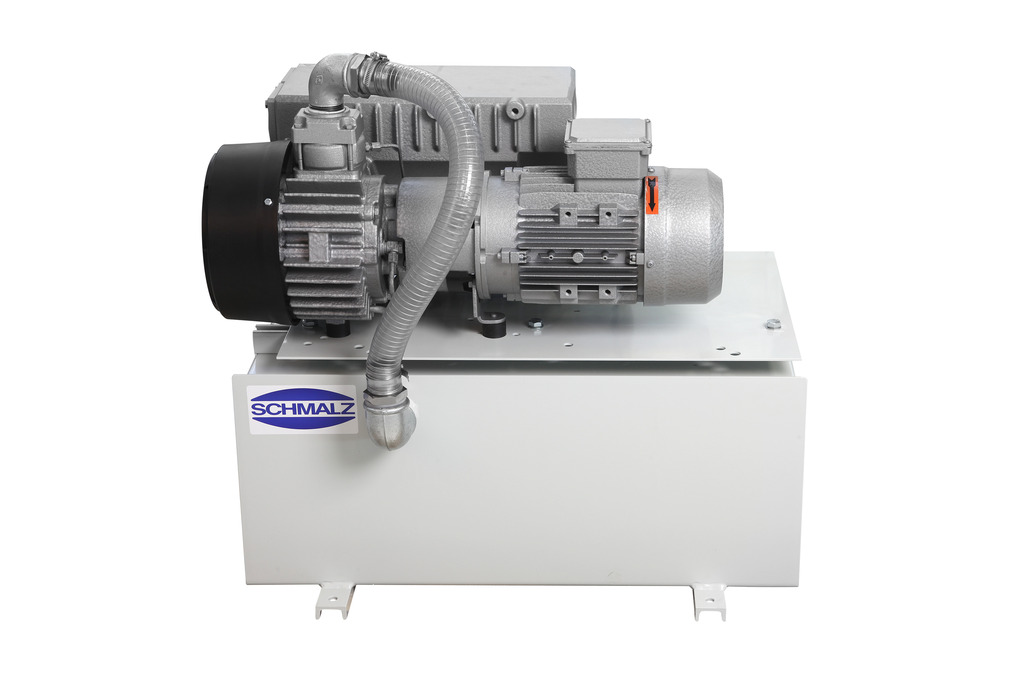

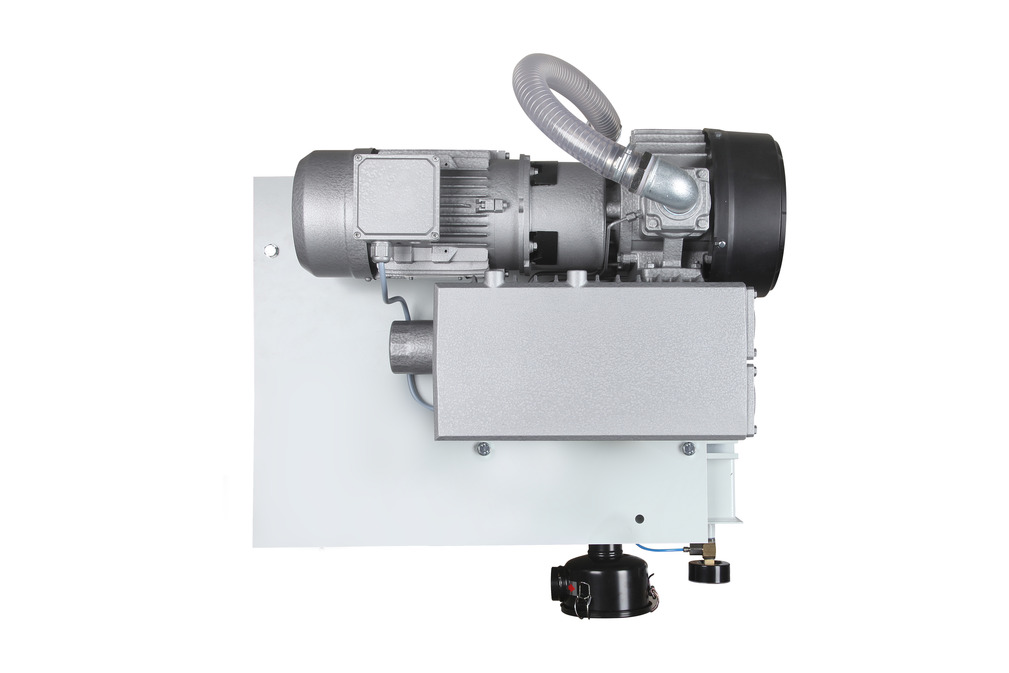

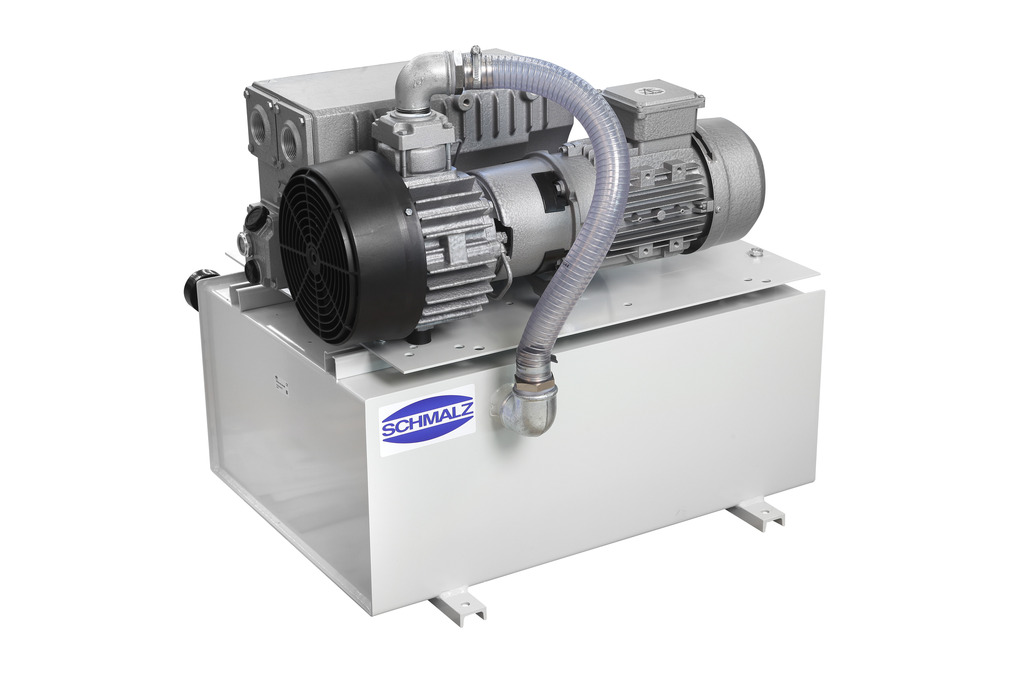

Vacuum centre with oil-lubricated pump and vacuum reservoir
| Suction rate -800 | 63 (m³/h) |
| Voltage | 230/400 V, 50 Hz |
| Reservoir volume | 100 (l) |

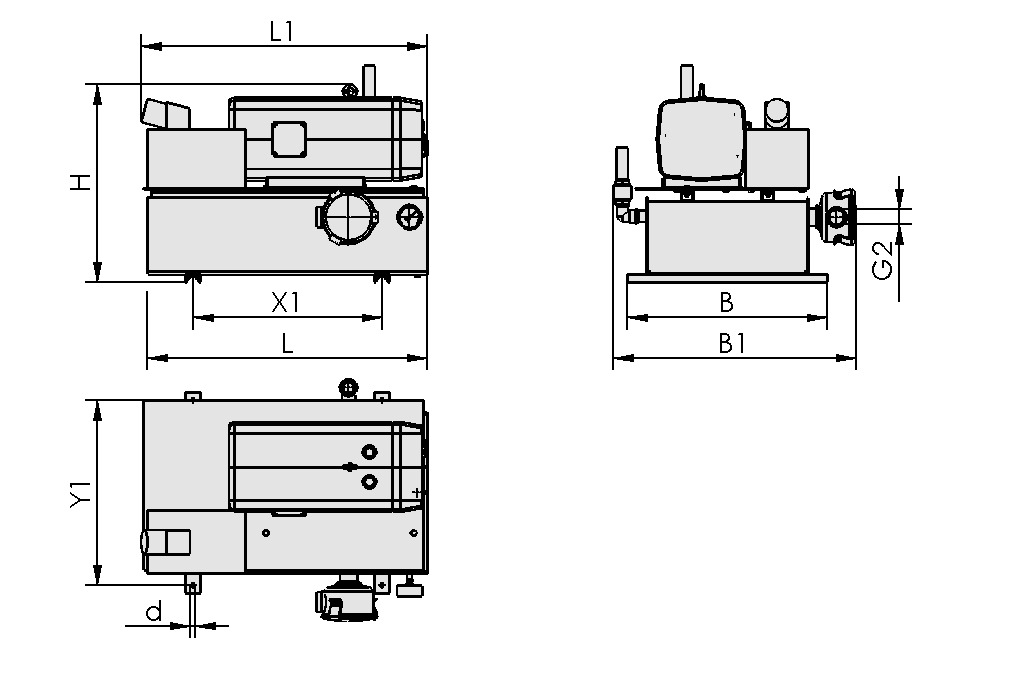

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 610 mm |
| B1 | 750 mm |
| d | 11 mm |
| G2 | G1-1/4-F |
| H | 700 mm |
| L | 710 mm |
| L1 | 720 mm |
| X1 | 480 mm |
| Y1 | 570 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Max. vacuum | -980 mbar |
| Voltage | 230/400 V, 50 Hz |
| Motor power | 1.5 kW |
| Reservoir volume | 100 l |
| Suction rate -800 | 63 m³/h |
| Protection type IP | IP 54 |
| Weight | 111.5 kg |
| Product family | VZ |
Documentation
Documentation
Spare parts
FILT-EINS 3 98x70 PAP STF-1-1/4-IGN10.07.01.00018Filter insert (round)
| Filter pore size | 3 (µm) |
| Outside diameter D | 98 (mm) |
| Length L | 70 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | 1-1/4-IGN |
