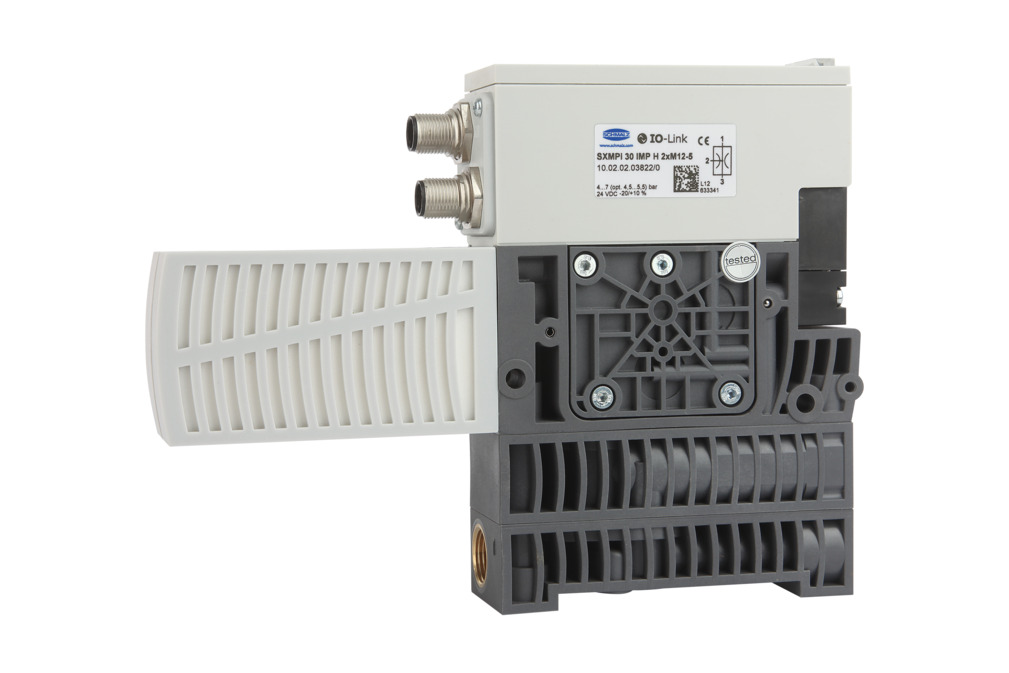

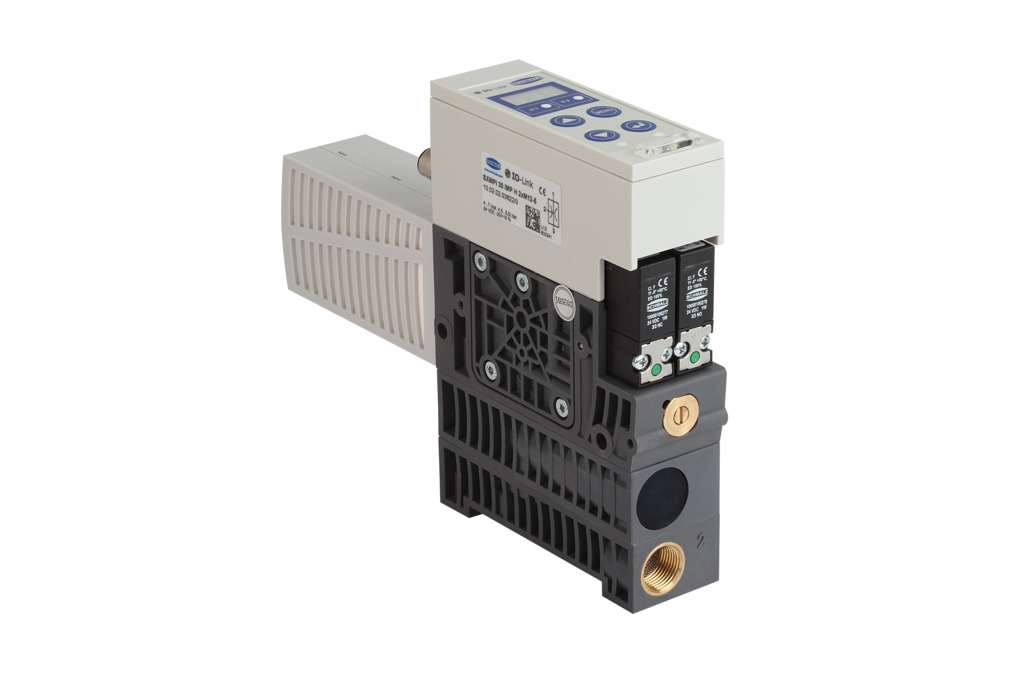

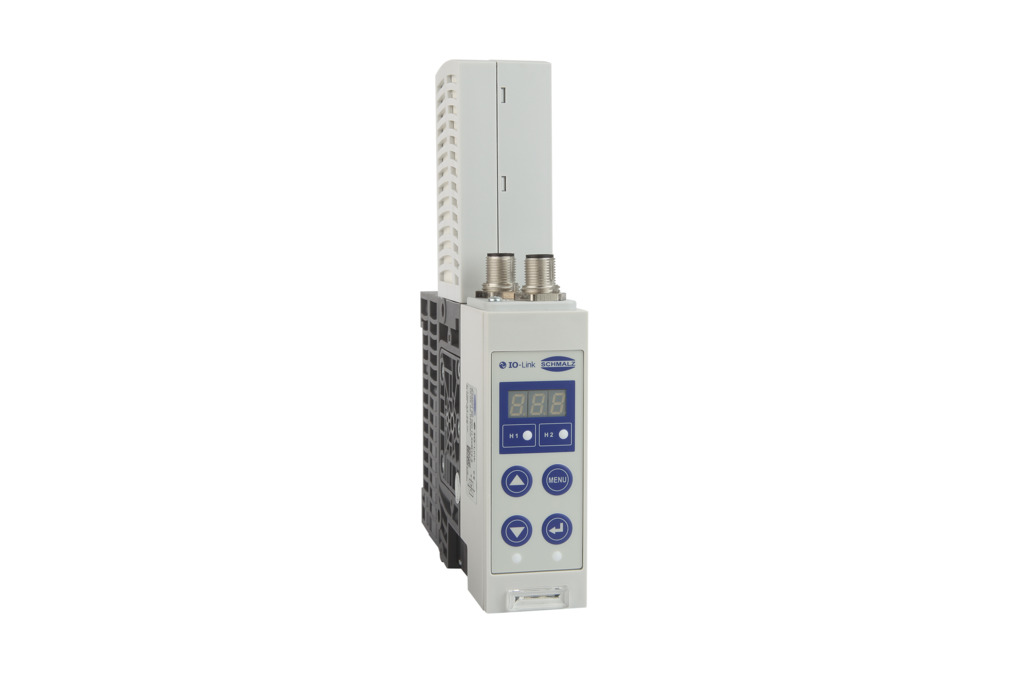

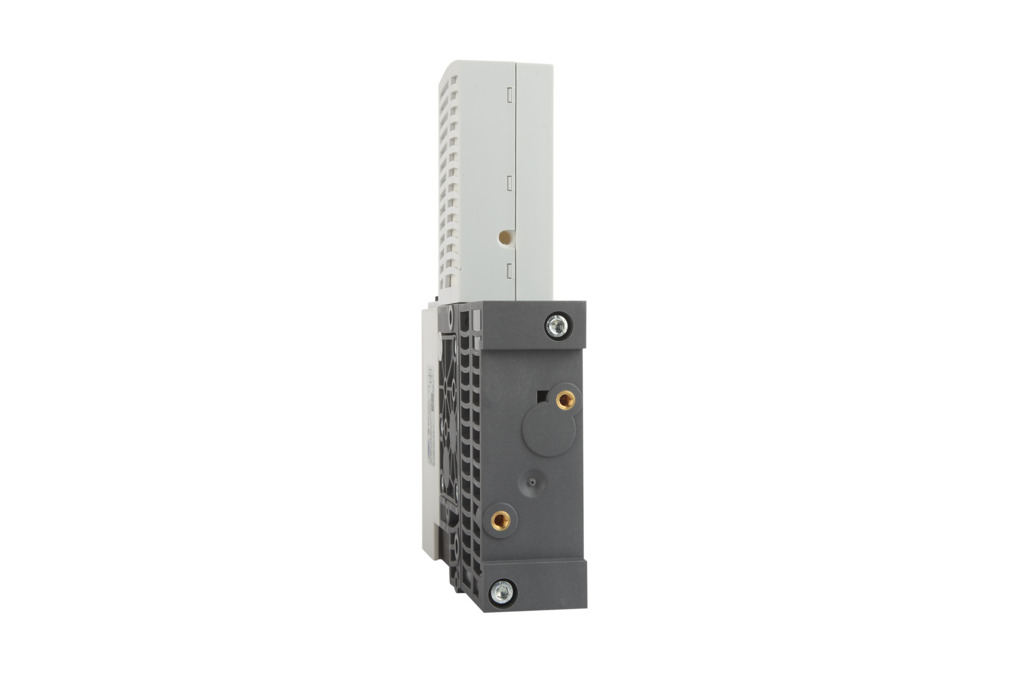

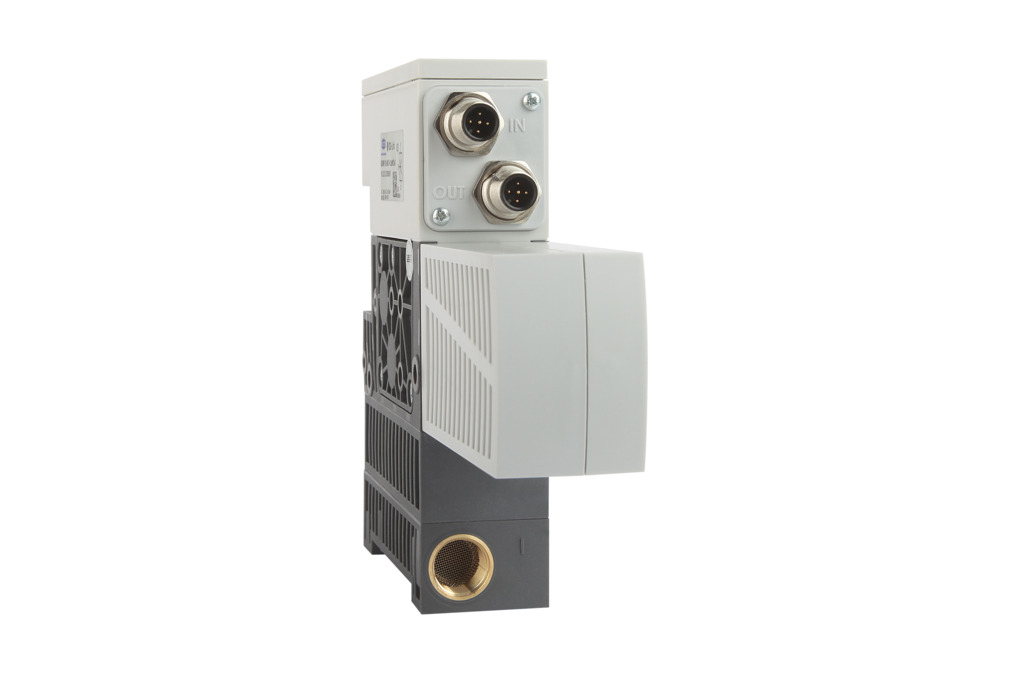

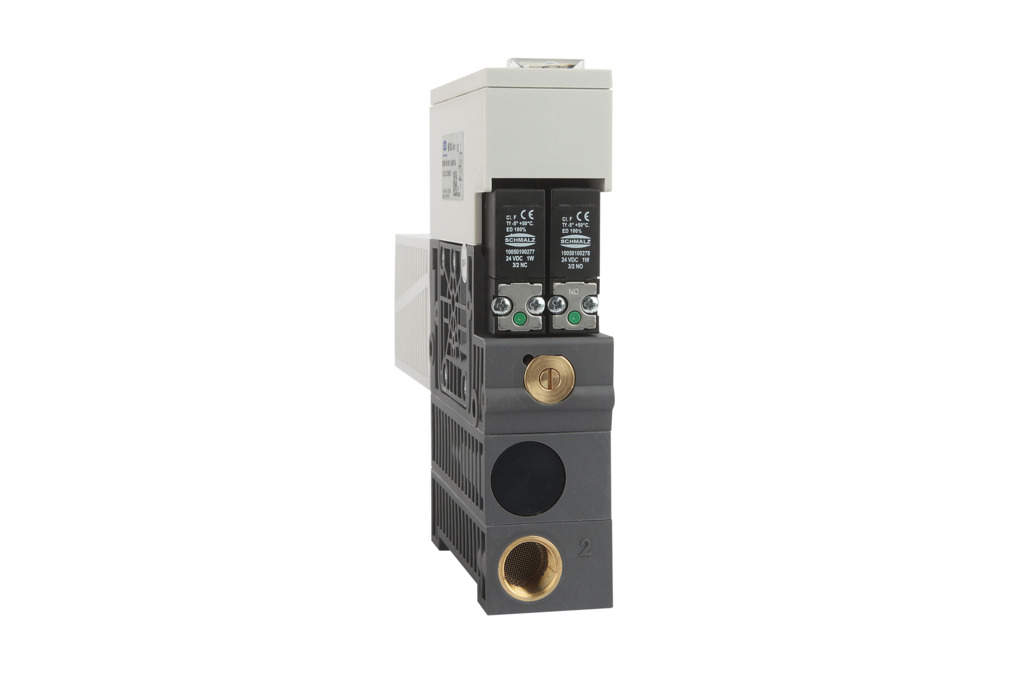

SXMPi 30 IMP H 2xM12-5

Part no.: 10.02.02.03822

Compact ejector with Condition Monitoring, power blow-off function and pneu. air-saving function

Nozzle diameter	3 (mm)
Control valve	Impulse valve
Pneumatic connection	Horizontal
Electrical connection	2xConnect M12, 5+5 pol
Communication	IO-Link (Class A)
Suction rate (max.)	220 (l/min)
Air consumption suction	380 (l/min)
Pressure range (operating pressure) [bar]	3.0 ... 6.0 bar
Max. vacuum	-850 (mbar)
Sound pressure level free	72 (dB(A))
Protection type IP	IP 65

Product information

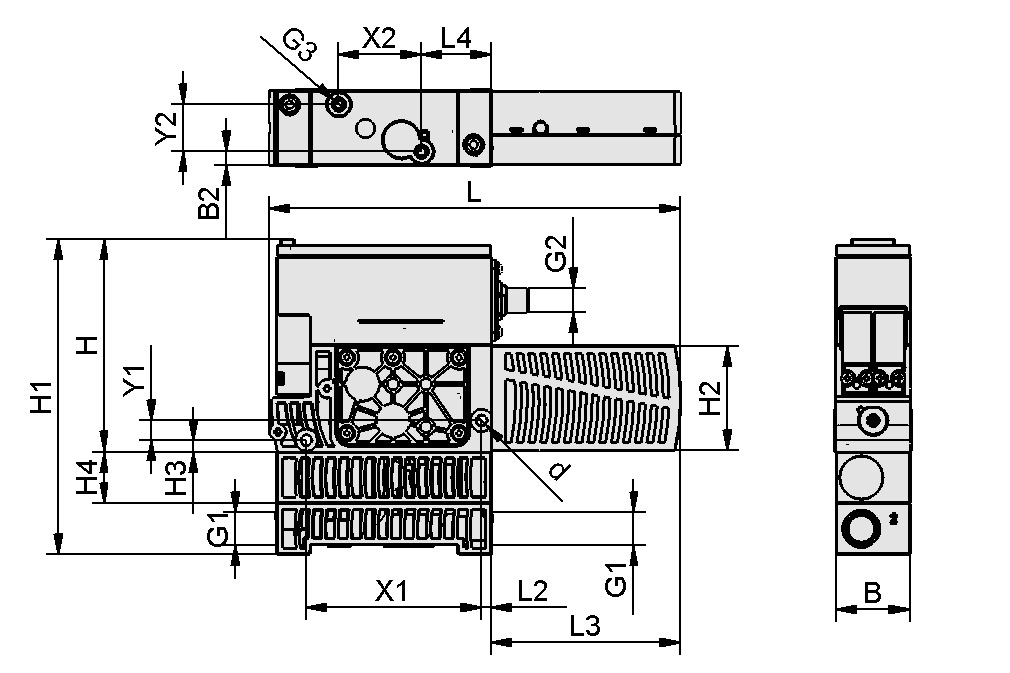

Design Data

Attribute	Value
B	39 mm
B2	6.8 mm
d	5.5 mm
G1	G3/8"-F
G2	M12x1-M
G3	M5-F
H	108 mm
H1	160 mm
H2	54 mm
H3	6 mm
H4	26 mm
L	210 mm
L2	5 mm
L3	97 mm
L4	35.5 mm
X1	89 mm
X2	42 mm
Y1	10 mm
Y2	24 mm

Technical Data

Attribute	Value
Nozzle diameter	3 mm
Degree of evacuation	85 %
Suction rate (max.)	220 l/min
Suction rate (max.)	13.2 m³/h
Suction rate (max.)	7.77 cfm
Air consumption suction	380 l/min
Air consumption suction	22.8 m³/h
Air consumption suction	13.42 cfm
Sound pressure level free	72 dB(A)
Pressure range (operating pressure) [bar]	43.5 ... 87.0
Pressure range (operating pressure) [bar]	3.0 ... 6.0 bar
Max. air consumption blow-off	320 l/min
Recommended hose internal diameter compressed air	8 mm
Recommended hose internal diameter vacuum	9 mm
Control valve	Impulse valve
Weight	0.91 kg
Operating temperature	0 ... 50 °C
Product family	SXMPi

Note: The supply voltage for vacuum switches and solenoid valves is 24V DC Air consumption: At optimal operating pressure Hose diameter: For max. length 2 m
