SD 16.5x51 SCPS10.02.02.05094Silencer for vacuum generators
| Outside diameter D | 16.5 (mm) |
| Length L | 51 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
SCPS-UHV-HD 11 G02 NC NPN
Part no.: 10.02.02.06287

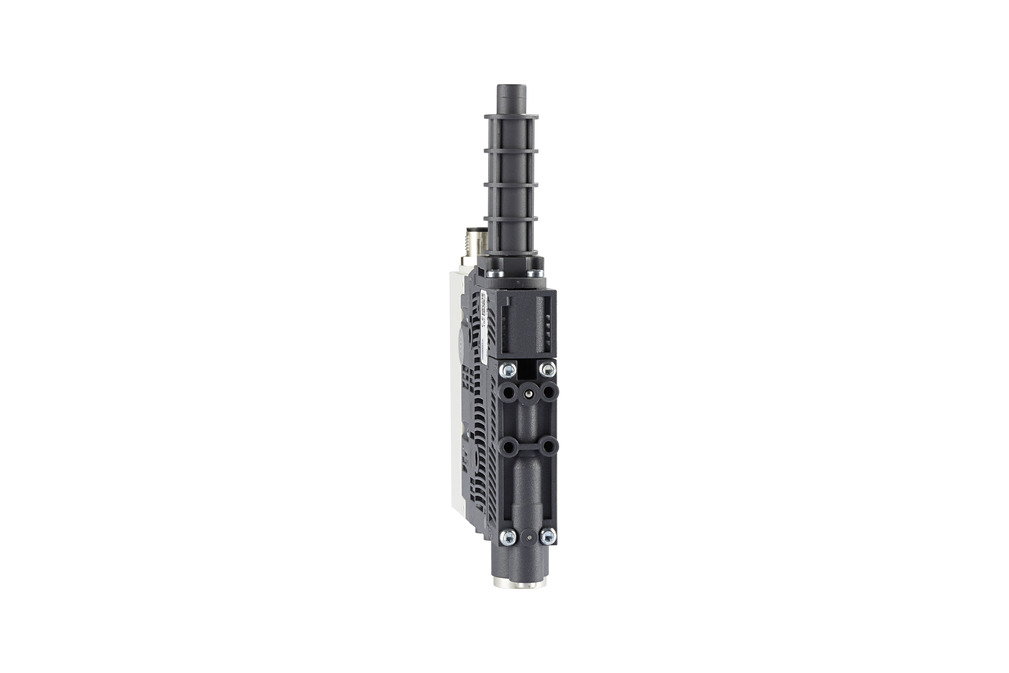

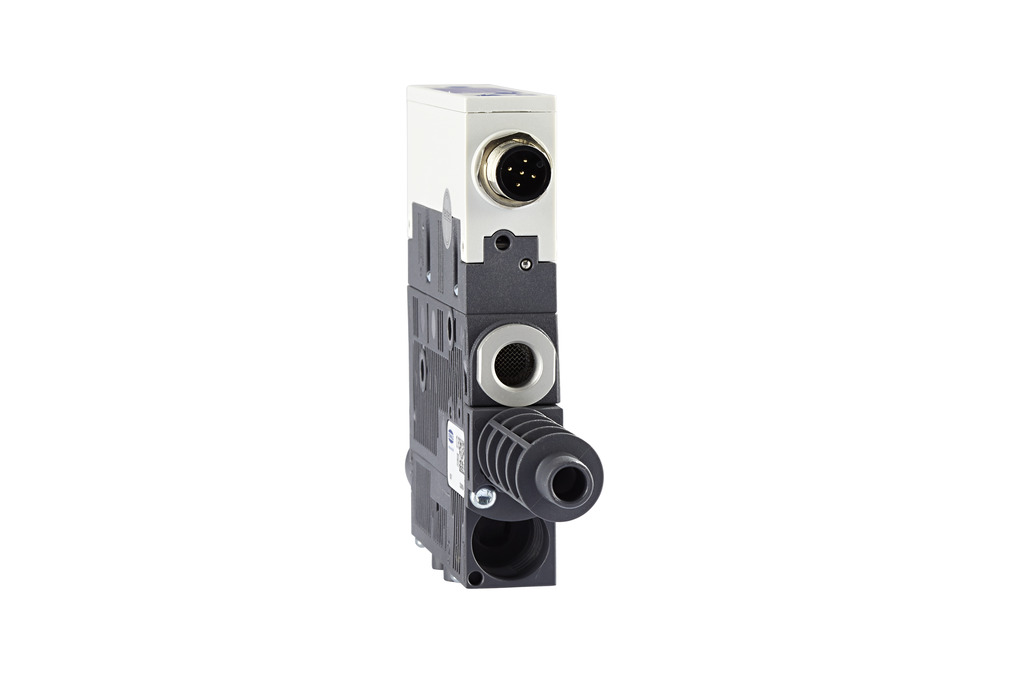

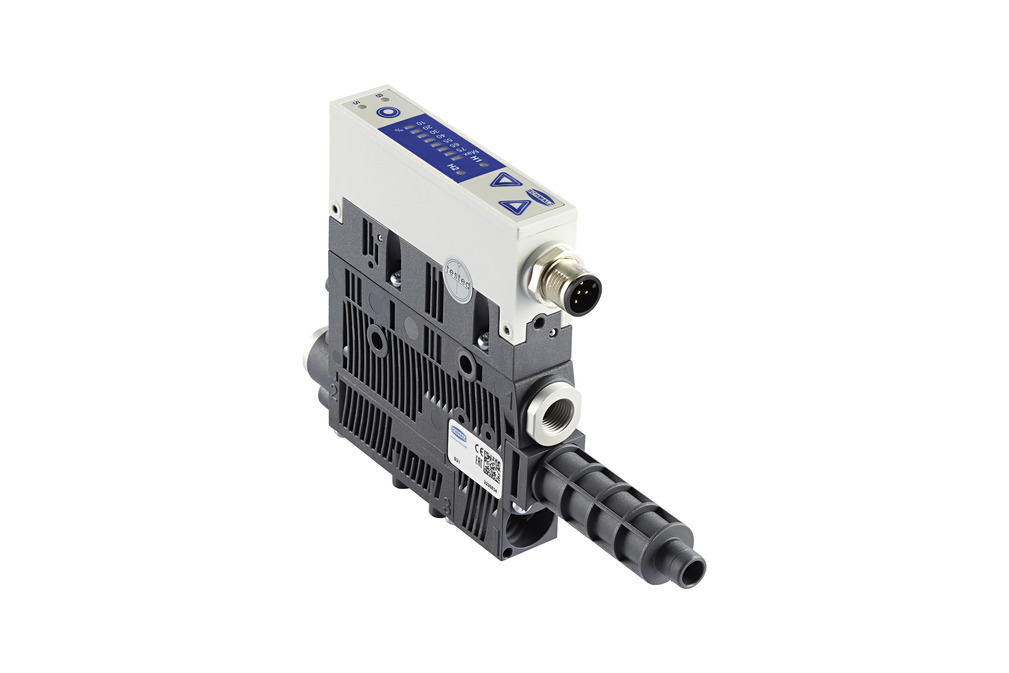

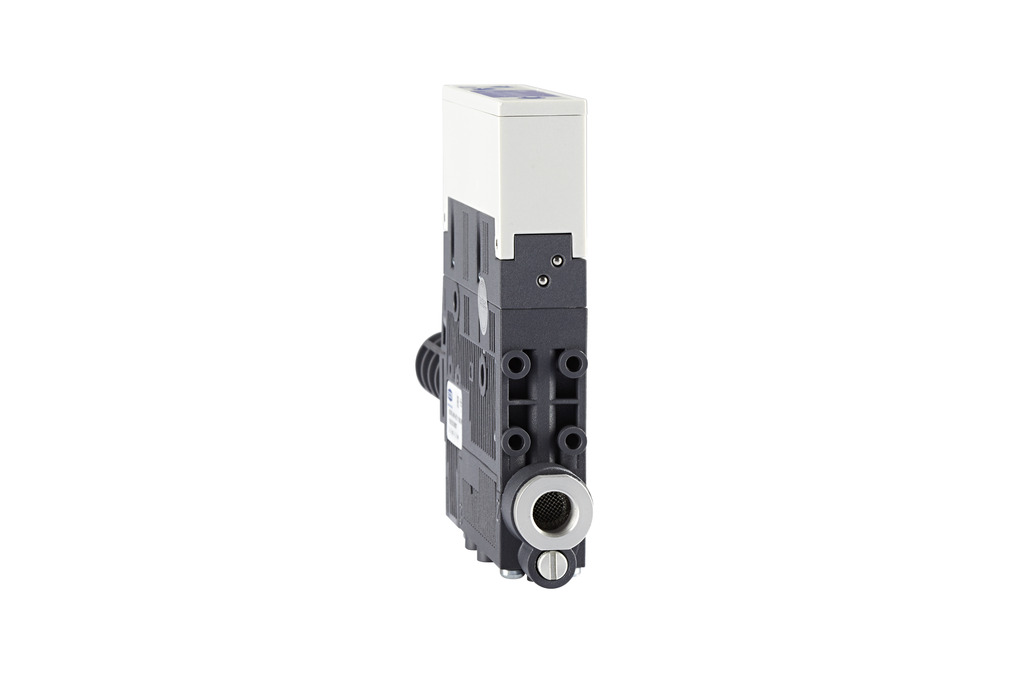

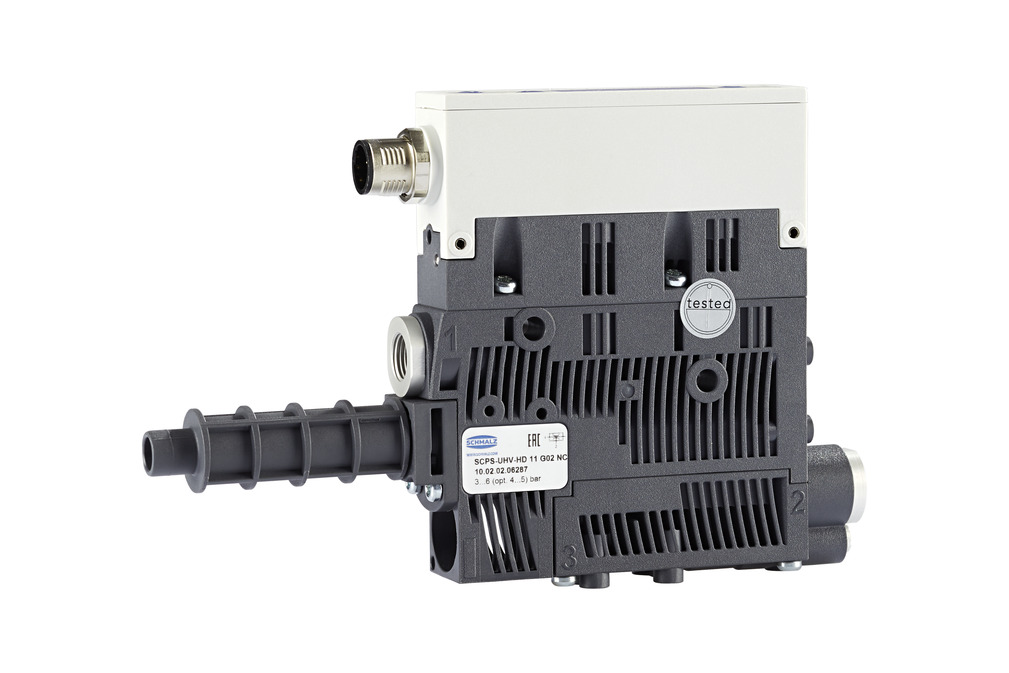

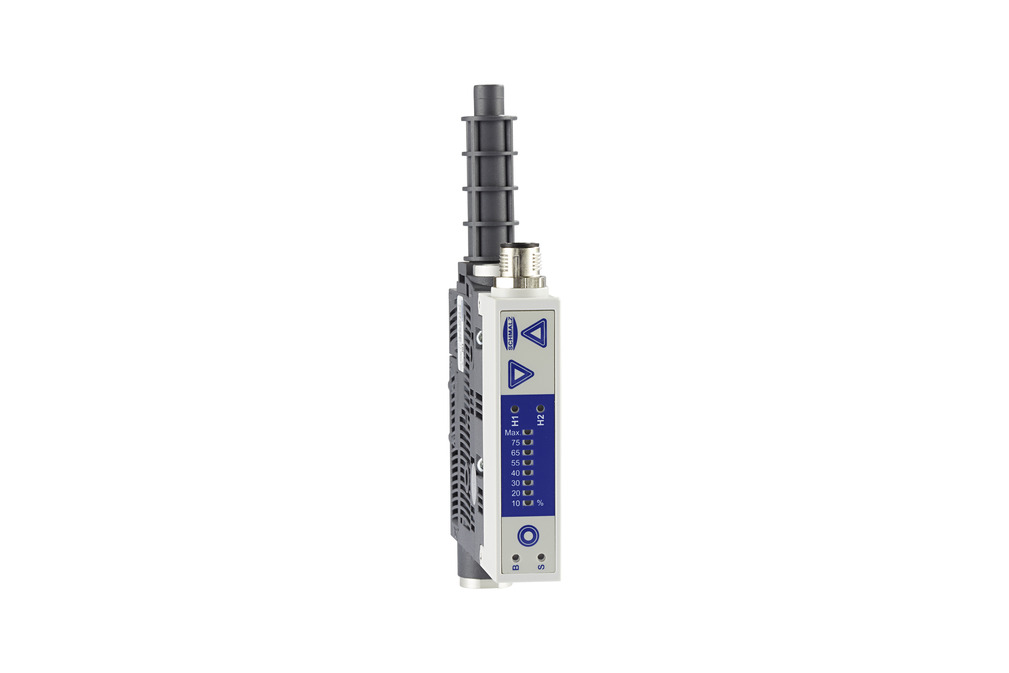

Compact ejector with special nozzle technology for increased vacuum level
| Shape compact ejectors | HD |
| Nozzle diameter | 1.1 (mm) |
| Connection | G1/8"(1)-G1/8"(2) |
| Suction rate (max.) | 27.8 (l/min) |
| Air consumption suction | 37.5 (l/min) |
| Sound pressure level free | 68 (dB(A)) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Max. vacuum | -910 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
| Protection type IP | IP 65 (with plug) |

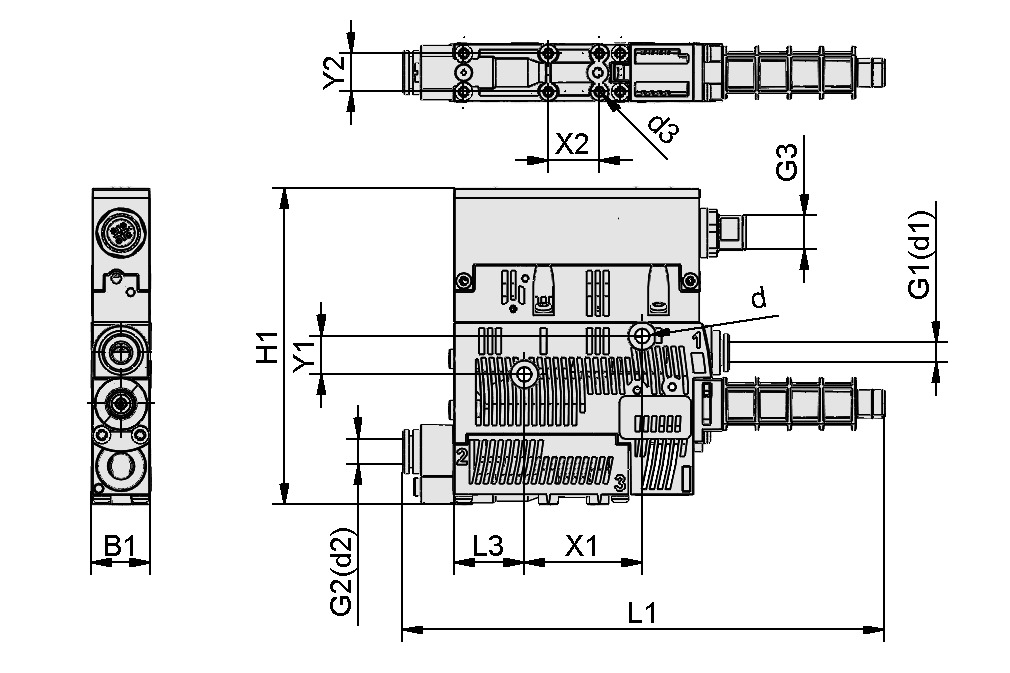

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 18 mm |
| B1 | 18.6 mm |
| D | 16.5 mm |
| d | 4.4 mm |
| D2 | 9 mm |
| d3 | 2.6 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G3 | M12x1-M |
| H2 | 40.8 mm |
| H3 | 47.5 mm |
| H4 | 16.5 mm |
| H5 | 5.5 mm |
| H6 | 31.5 mm |
| L | 135 mm |
| L1 | 148.4 mm |
| L2 | 91.5 mm |
| L3 | 22 mm |
| L4 | 29.5 mm |
| L5 | 83.8 mm |
| X1 | 36.9 mm |
| X2 | 16 mm |
| Y1 | 12 mm |
| Y2 | 12 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nozzle size | 11 |
| Degree of evacuation | 91 % |
| Suction rate (max.) | 27.8 l/min |
| Suction rate (max.) | 1.6 m³/h |
| Air consumption suction | 37.5 l/min |
| Air consumption suction | 2.2 m³/h |
| Air consumption blow-off | 7.2 m³/h |
| Sound pressure level free | 68 dB(A) |
| Sound pressure level suction | 75 dB(A) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Connection | G02 |
| Control valve | Normally closed |
| Weight | 0.21 kg |
| Max. air consumption blow-off | 120 l/min |
| Operating temperature | 0 ... 50 °C |
| Pressure range (operating pressure) [bar] | 43.5 ... 87.0 |
| Air consumption blow-off | 4.24 cfm |
| Air consumption suction | 1.32 cfm |
| Suction rate (max.) | 0.98 cfm |
| Max. vacuum | -26.87 inHg |
| Product family | SCPS-UHV-HD |
Performance Data
Performance Data
Documentation
Documentation
Good things made even better.
The SCPS ejectors are now also available with a 7-segment display!
The new SCPSc series makes operation even easier:
All system statuses and setting values can be read at a glance and the product is even easier to configure.
Spare parts
VACU-SET 11 12.80x76.60 SCPS10.02.02.06279Vacuum unit with ejector
fully assembled
| Outside diameter D | 12.8 (mm) |
| Length L | 76.6 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
WART SCPS/SCPSi-HD10.02.02.06343Maintenance set ejector
| Utilization design | Compact ejectors SCPS / SCPSi |
| Size | HD |
Accessories
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
ASK B-M12-5 1000 S-M12-521.04.05.00158Connection cable
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 1000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
ASK B-M12-5 2000 S-M12-521.04.05.00211Connection cable
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 2000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
ASV SM/CPi B-M12-5 2xS-M12-410.02.02.03490Connection distributor
| Pressure range (operating pressure) [bar] | bar |
| Length L | 1050 (mm) |
HUT-SN-KL 75x18x9 SCPS10.02.02.04149Top-hat rail clamp comp.
| Length L | 75 (mm) |
| Width B | 18 (mm) |
| Height H | 9 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
| Profil type | EN 50022 |
VFI CN6/4 5010.07.01.00241Vacuum filter with replaceable
filter cartridge
| Connection | Hose 6/4 with Cap nut |
| Filter pore size | 50 (µm) |
VFI 6/4 5010.07.01.00328Vacuum filter with replaceable
filter cartridge
| Connection | Hose 6/4 |
| Filter pore size | 50 (µm) |
