Part no.: 10.01.30.00719

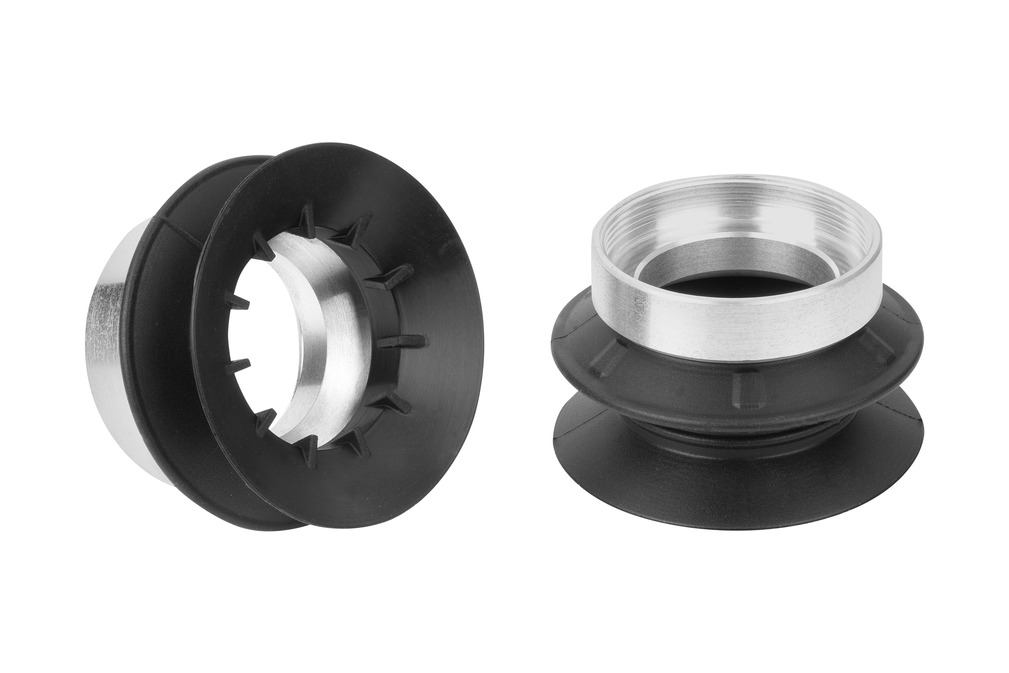

Suction cup (round)
| Size | 50 |
| Height H | 31.5 (mm) |
| Suction cup material | Nitrile rubber NBR-conductive |
| Material hardness [Shore A] | 55 (Shore A) |
| Suction cup type | FLSA |

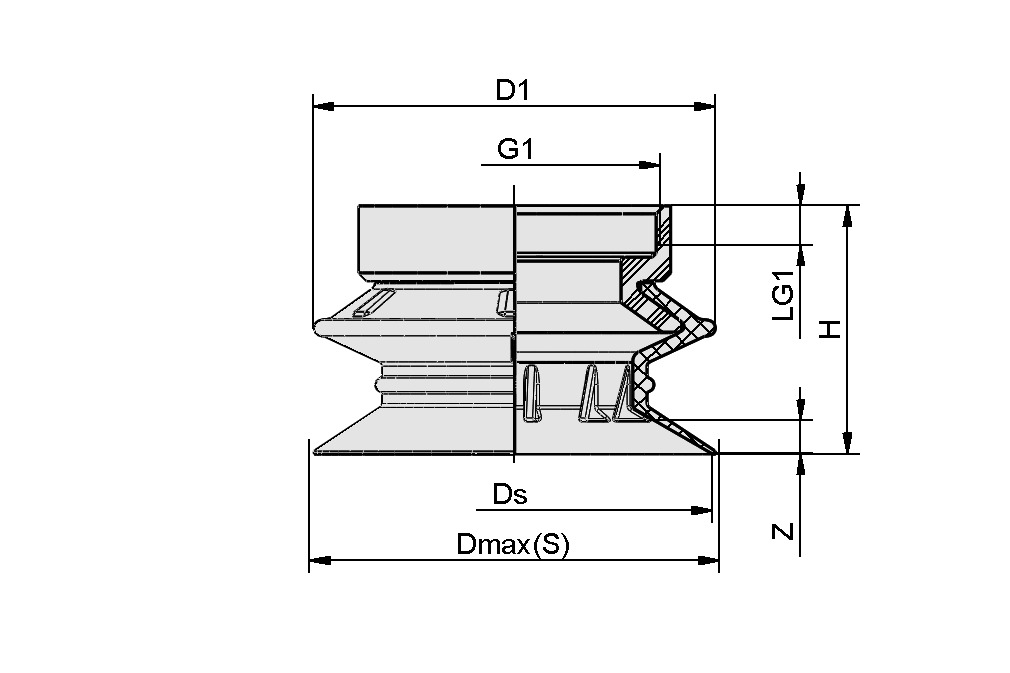

| Attribute | Value |
|---|---|
| D1 | 51 mm |
| Dmax (N) | 39.6 mm |
| Dmax(S) | 51.5 mm |
| dn | 27 mm |
| Ds | 50.3 mm |
| G1 | M37x1-F |
| H | 31.5 mm |
| LG1 | 5 mm |
| Z (Stroke) | 4.2 mm |
| Attribute | Value |
|---|---|
| Size | 50 |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C |
| Number of folds | 0 |
| Weight | 24.3 g |
| Holding force | N |
| Air consumption [m³/h] | m³/h |
| Air consumption | l/min |
| Material hardness [Shore A] | 55 Shore A |
| Suction rate [m³/h] | m³/h |
| Suction rate | l/min |
| Suction cup material | Nitrile rubber NBR-conductive |
| Product family | SAUG-SCG |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Mounting | MA |
| Additional function ejector | Exhaust duct axial |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Mounting | MA |
| Additional function ejector | Silencer axial |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Mounting | sideways |
| Additional function ejector | Exhaust duct axial |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Mounting | sideways |
| Additional function ejector | Silencer axial |
