FSTE-HD G1/2-AG 25

Part no.: 10.01.02.00770

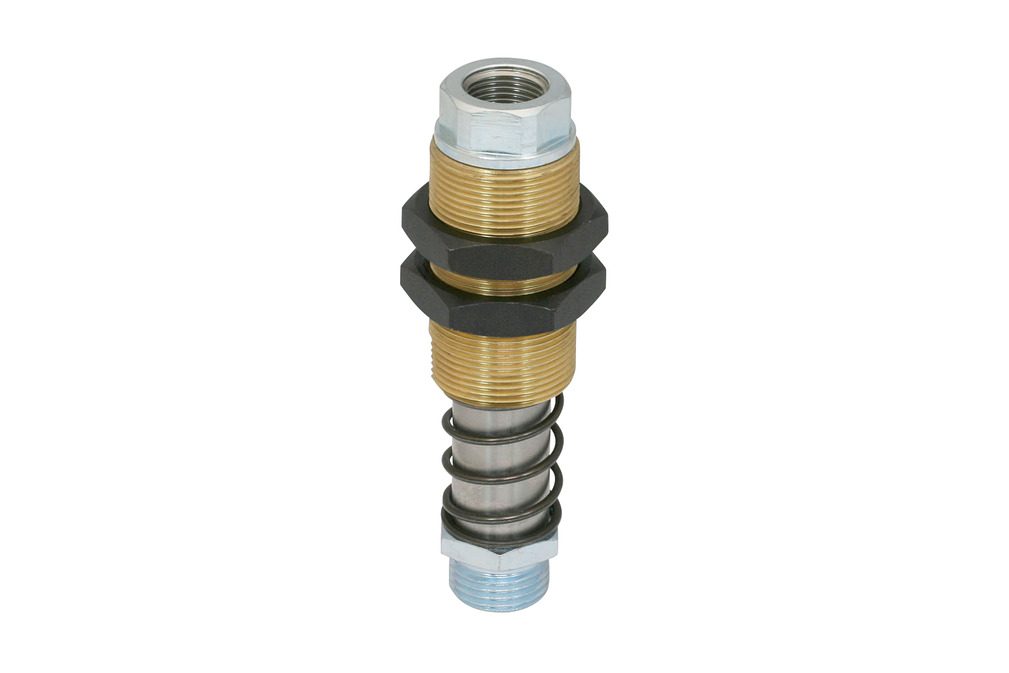

Spring plunger with damping and height compensation, heavy-duty

Suction cup connection	G1/2"-M
Product family	FSTE-HD
Spring stroke Z	25 (mm)
Tightening torque (max)	50 (Nm)

Product information

Design Data

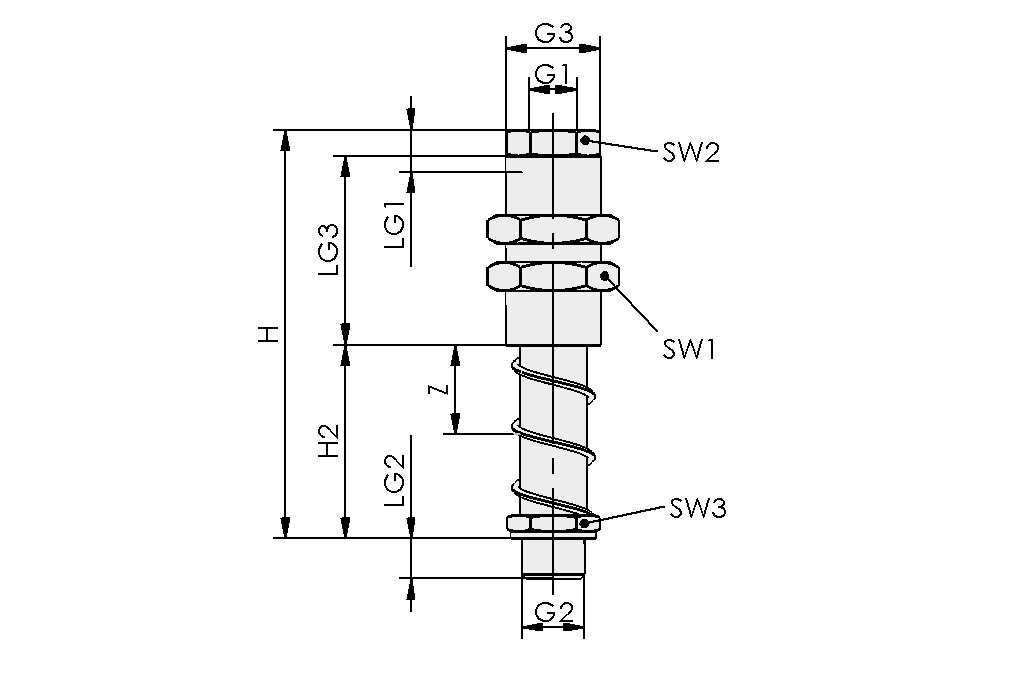

Design image

Attribute	Value
G1	G3/8"-F
G2	G1/2"-M
G3	M30x1.5-M
H	105.5 mm
H2	40.5 mm
LG1	12 mm
LG2	10.5 mm
LG3	53 mm
SW1	36 mm
SW2	24 mm
SW3	24 mm
Z (Stroke)	25 mm

Technical Data

Attribute	Value
Spring rate	3.83 N/mm
Spring pretension	25.64 N
Spring force center	73.5 N
Vertical load	4,900 N
Horizontal load	1,870 N
Tightening torque (max)	50 Nm
Weight	400 g
Operating temperature	0 ... 80 °C
Product family	FSTE-HD

Note: Spring force: Referred to 50 % of operating stroke Vertical loading: Maximum static loading Horizontal stress: The specification of the horizontal stress refers to the lower edge of the plunger with extended spring. It is a maximum static stress and it impairs the spring compression and extension in horizontal position
