DRUCK-FED 2x23 40.5 3.82820.08.02.00095Pressure spring
| Wire diameter | 2 (mm) |
| Length L | 40.5 (mm) |
| Spring rate | 3.828 (N/mm) |
| Diameter | 23 (mm) |

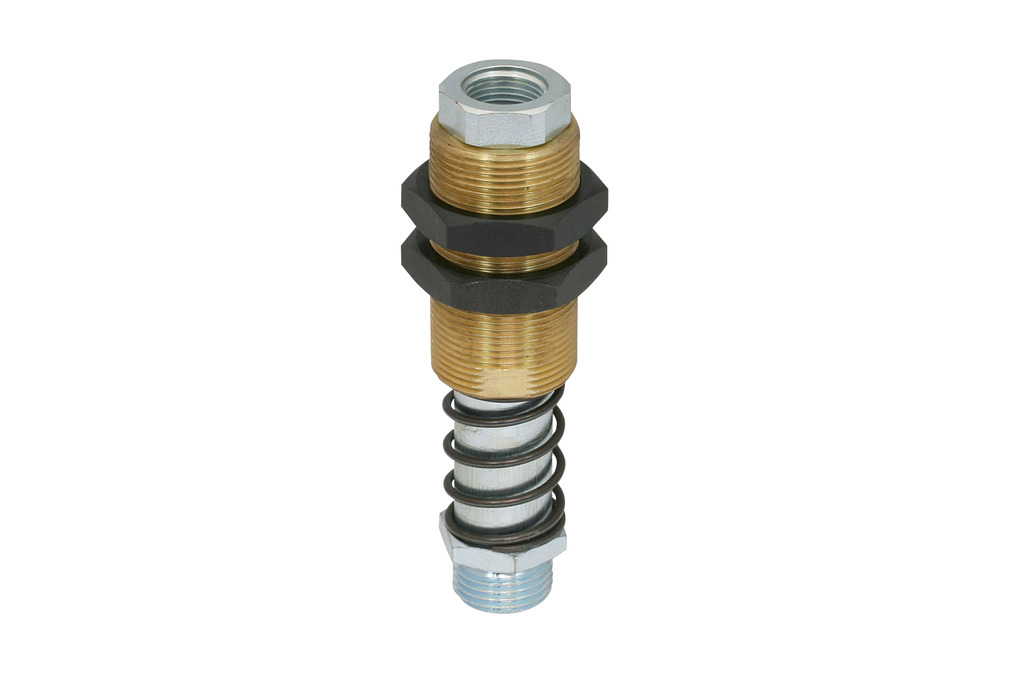

FSTE G1/2-AG 25
Part no.: 10.01.02.00574
Spring plunger with damping and height compensation
| Suction cup connection | G1/2"-M |
| Product family | FSTE |
| Spring stroke Z | 25 (mm) |
| Tightening torque (max) | 50 (Nm) |

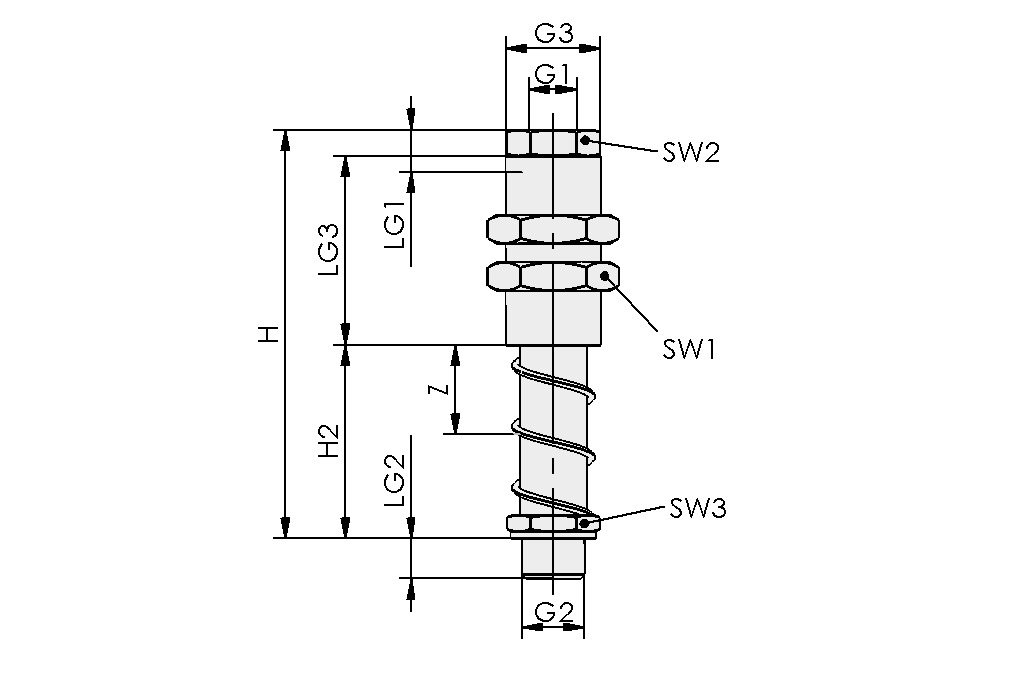

Design Data
Design Data
| Attribute | Value |
|---|---|
| G1 | G3/8"-F |
| G2 | G1/2"-M |
| G3 | M30x1.5-M |
| H | 105.5 mm |
| H2 | 42.5 mm |
| LG1 | 13 mm |
| LG2 | 10.5 mm |
| LG3 | 55 mm |
| SW1 | 36 mm |
| SW2 | 24 mm |
| SW3 | 24 mm |
| Z (Stroke) | 25 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Spring rate | 3.83 N/mm |
| Spring pretension | 25.64 N |
| Spring force center | 73.5 N |
| Vertical load | 4,900 N |
| Horizontal load | 1,870 N |
| Tightening torque (max) | 50 Nm |
| Weight | 400 g |
| Operating temperature | 0 ... 80 °C |
| Product family | FSTE |
Documentation
Documentation
Spare parts
Accessories
FLK G1/2-IG G1/2-AG10.01.03.00175Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
FLK G1/2-IG G1/2-AG V10.01.03.00207Flexible suction cup mounting for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Operating temperature | 0 ... 70 °C |
| Shape mounting elements | reinforced |
KGL G1/2-IG G1/2-AG10.01.03.00111Suction cup mounting with joint for
adaptation to sloping surfaces
| Thread G1 | G1/2"-F |
| Thread G2 | G1/2"-M |
| Height H | 40 (mm) |
HTR-STA 62 1N D30 WI10.08.03.00148Holder for flexible mounting of
suction cups/spring plungers on
sections
| Length L | 62 (mm) |
| Connection 1 | Sliding block |
| Suction cup or spring plunger connection | Contour D30-G1/2 |
| Shape | angled |
HTR-STS 40x40 D30 WI10.08.03.00090Holder for flexible mounting of
suction cups/spring plungers on
square tubes
| Connection 1 | 40x40 |
| Suction cup or spring plunger connection | Contour D30-G1/2 |
| Shape | angled |
HTR-STS 50x50 D30 WI10.08.03.00091Holder for flexible mounting of
suction cups/spring plungers on
square tubes
| Connection 1 | 50x50 |
| Suction cup or spring plunger connection | Contour D30-G1/2 |
| Shape | angled |
HTR-STS 60x60 D30 WI10.08.03.00092Holder for flexible mounting of
suction cups/spring plungers on
square tubes
| Connection 1 | 60x60 |
| Suction cup or spring plunger connection | Contour D30-G1/2 |
| Shape | angled |
ST G3/8-AG 9 MS-V10.08.03.00159Hose sleeve
| Thread G1 | G3/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 6 (mm) |
| Nominal diameter dn | 7.4 (mm) |
ST G3/8-AG 13 MS-V10.08.03.00160Hose sleeve
| Thread G1 | G3/8"-M |
| Hose inner diameter (recom.) d | 13 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5.9 (mm) |
| Nominal diameter dn | 10 (mm) |
STV-GE G3/8-AG 810.08.02.00237Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 14.6 (mm) |
| Length L | 17.4 (mm) |
STV-GE G3/8-AG 1010.08.02.00252Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 10 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 16.5 (mm) |
| Length L | 20.1 (mm) |
STV-GE G3/8-AG 1210.08.02.00209Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 23.6 (mm) |
STV-GE G3/8-AG 1410.08.02.00211Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 14 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 21.5 (mm) |
| Length L | 30.5 (mm) |
STV-W G3/8-AG 810.08.02.00236Push-in Fitting, swivelling
elbow
| Thread G1 | G3/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 23.7 (mm) |
STV-W G3/8-AG 1010.08.02.00255Push-in Fitting, swivelling
elbow
| Thread G1 | G3/8"-M |
| Outer hose diameter | 10 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 35.1 (mm) |
STV-W G3/8-AG 1210.08.02.00163Push-in Fitting, swivelling
elbow
| Thread G1 | G3/8"-M |
| Outer hose diameter | 12 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 34.1 (mm) |
STV-WF G3/8-AG 810.08.02.00234Push-in Fitting, swivelling
and lockable
| Thread G1 | G3/8"-M |
| Outer hose diameter | 8 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 26.7 (mm) |
STV-WF G3/8-AG 1010.08.02.00259Push-in Fitting, swivelling
and lockable
| Thread G1 | G3/8"-M |
| Outer hose diameter | 10 (mm) |
| Material | Nickel plated |
| Operating temperature | -10 ... 70 °C |
| Length L | 29.2 (mm) |
