SXT-CL-EXT-D25-200-T25
Part no.: 10.07.13.00227

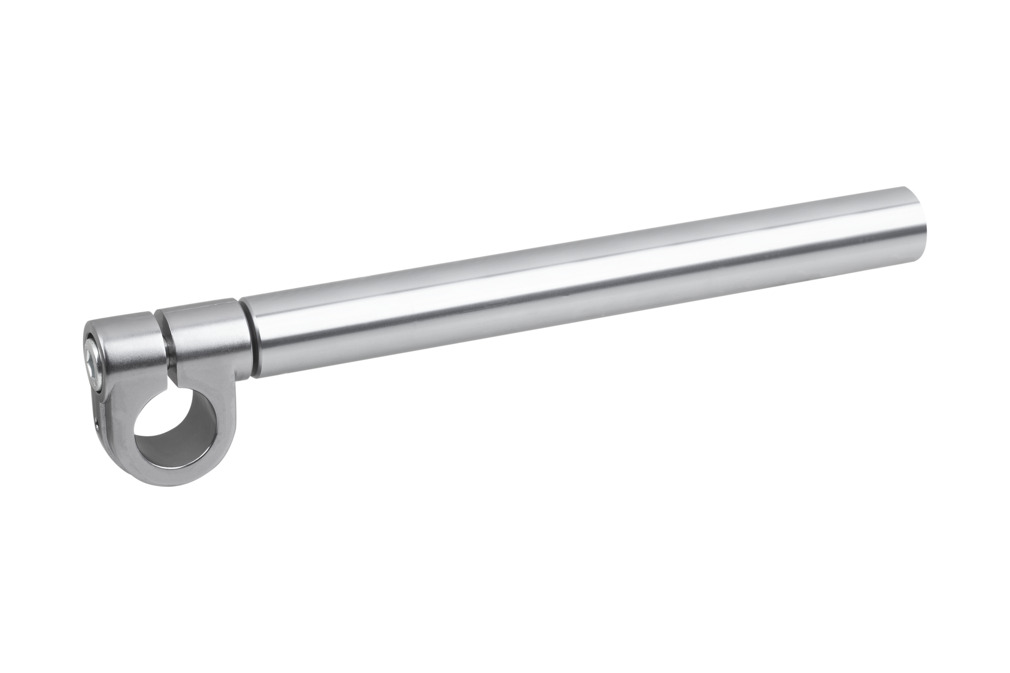

Swivel arm with extension to connect vacuum-components with round toolings
| Outside diameter D | 25 (mm) |
| Internal diameter d | 25 (mm) |
| Length L3 | 200.5 (mm) |
| Material | Aluminum |
| Connection 1 | D25 |

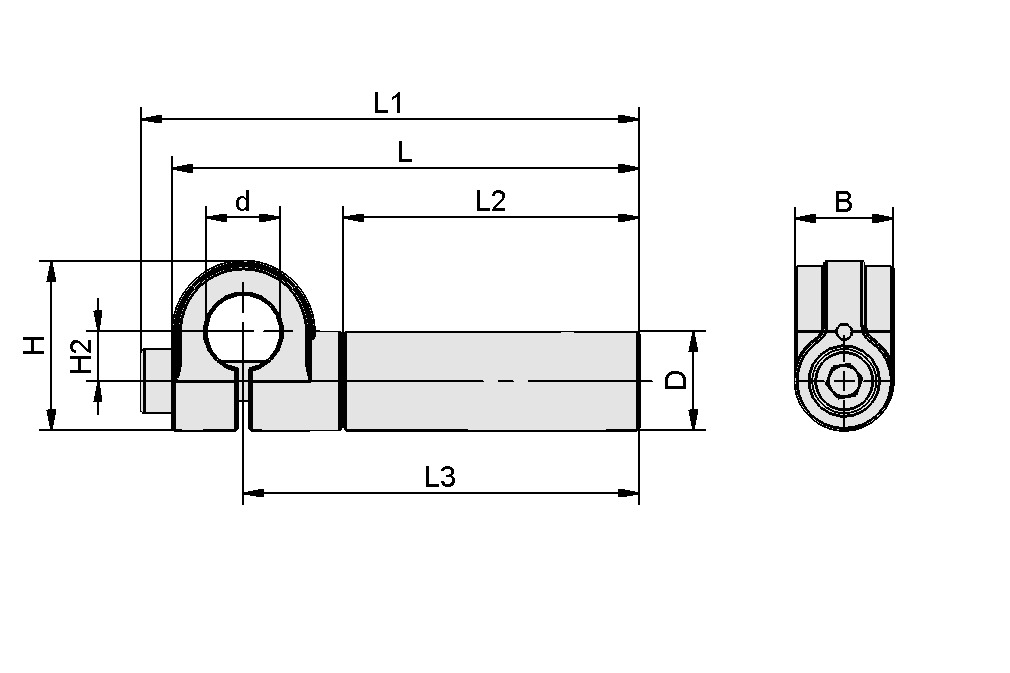

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 25 mm |
| D | 25 mm |
| d | 25 mm |
| H | 53 mm |
| H2 | 19.5 mm |
| L | 221.5 mm |
| L1 | 222 mm |
| L2 | 175 mm |
| L3 | 200.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Shape | Tube |
| Weight | 240 g |
| Product family | SXT |
