SXT-CL-EXT-A2-300-T25
Part no.: 10.07.13.00222

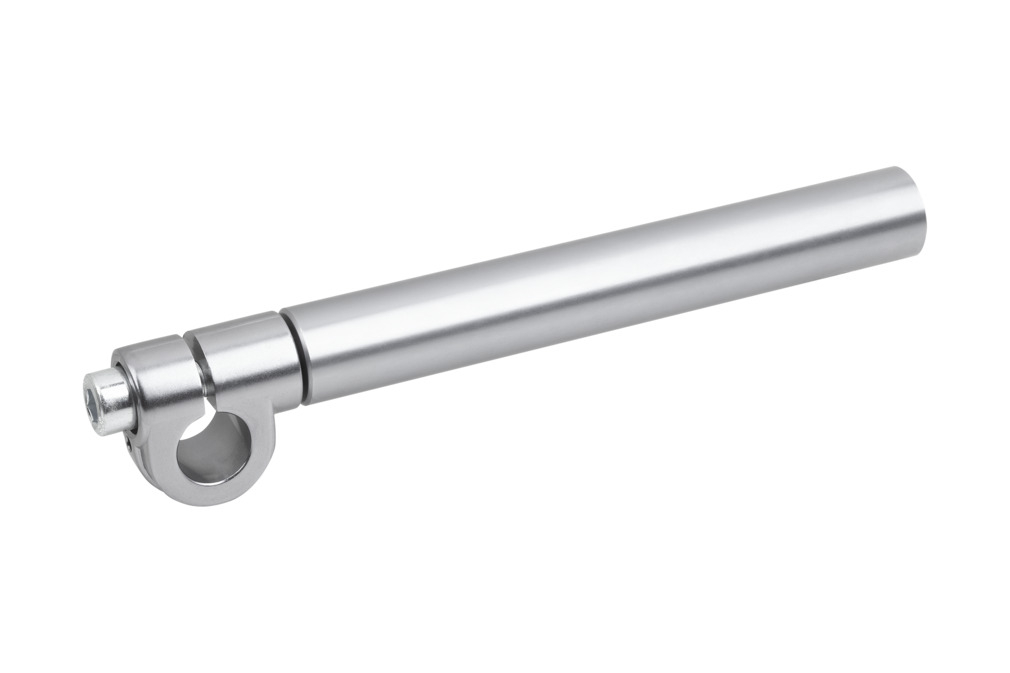

Swivel arm with extension to connect vacuum-components with round toolings
| Outside diameter D | 25 (mm) |
| Internal diameter d | 19 (mm) |
| Length L3 | 300.5 (mm) |
| Material | Aluminum |
| Connection 1 | Bolt with slot Ø19mm |
Design Data
Design Data

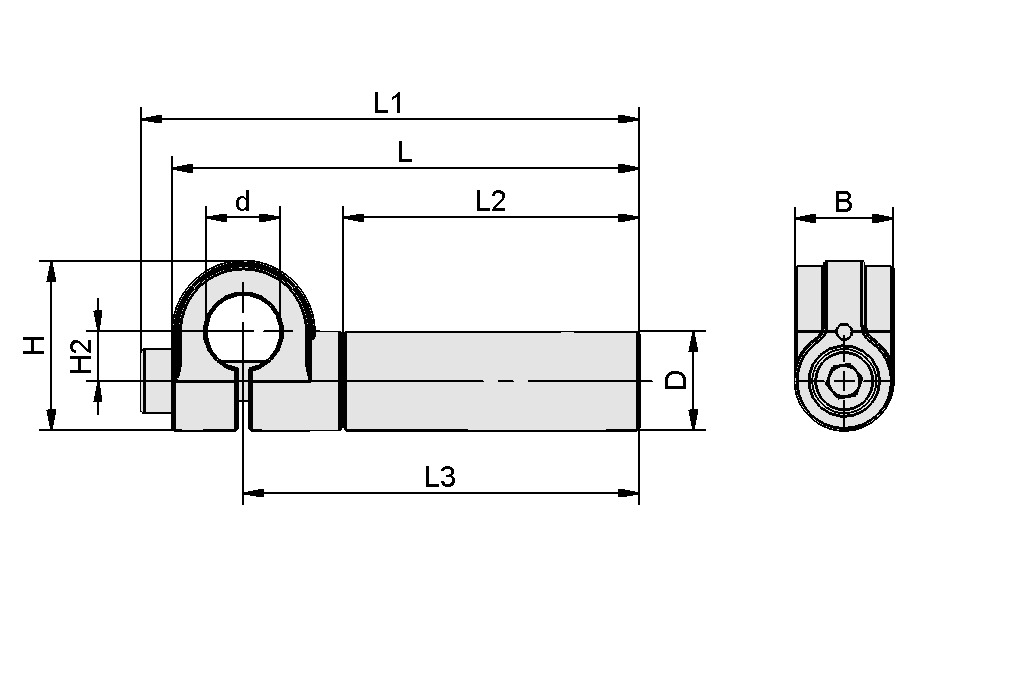

| Attribute | Value |
|---|---|
| B | 25 mm |
| D | 25 mm |
| d | 19 mm |
| H | 43 mm |
| H2 | 12.5 mm |
| L | 318.5 mm |
| L1 | 326.5 mm |
| L2 | 275 mm |
| L3 | 300.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Shape | Tube |
| Weight | 280 g |
| Product family | SXT |
