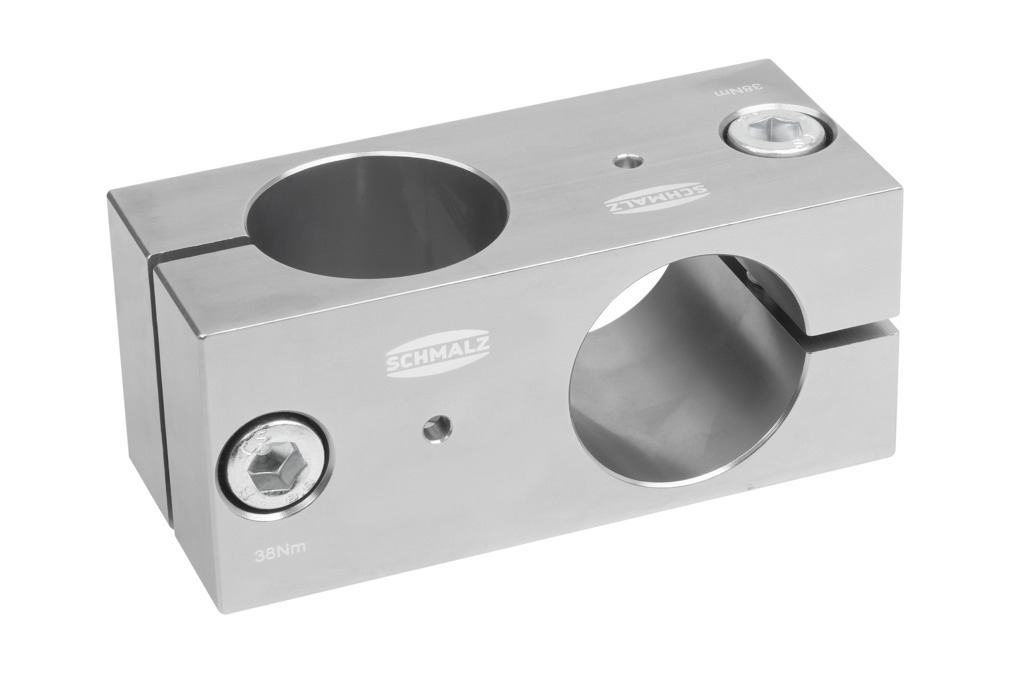

SXT-CL X FIX 40 40 AL
Part no.: 10.07.13.00127
Clamp for Round Tooling
| Shape mounting elements | rigid |
| Shape | Cross shape |
| Width B | 48 (mm) |
| Length L | 115 (mm) |
| Material | Aluminum |
| Utilization design | Pipe 40 / 40 |

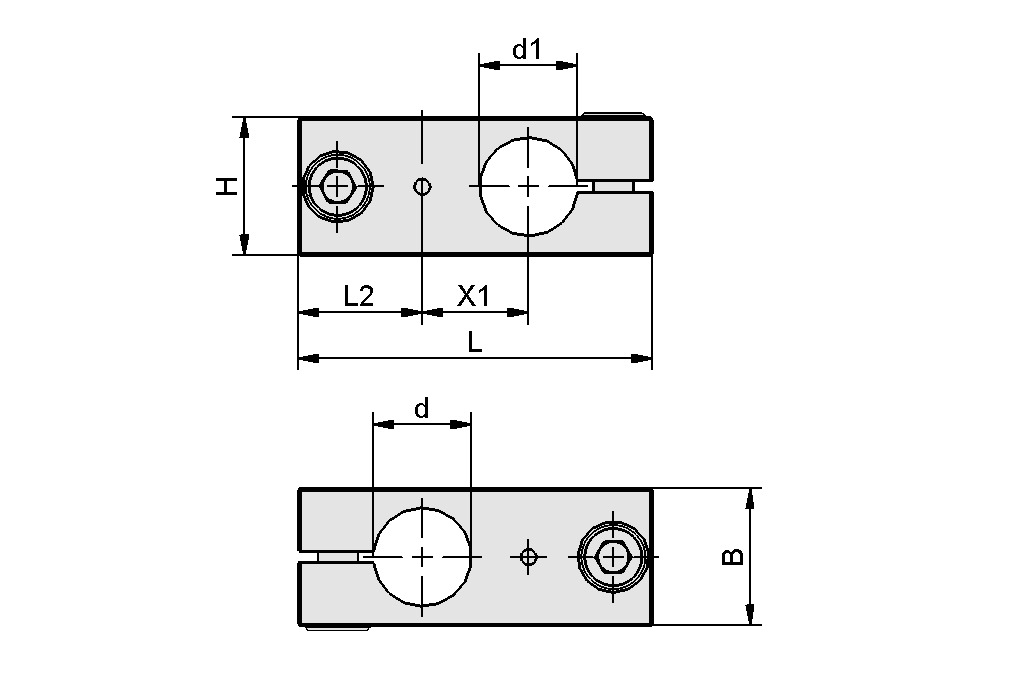

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 48 mm |
| d | 40 mm |
| d1 | 40 mm |
| H | 48 mm |
| L | 115 mm |
| L2 | 36.5 mm |
| X1 | 42 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Shape | Cross shape |
| Shape mounting elements | FIX |
| Weight | 450 g |
| Product family | SXT |
