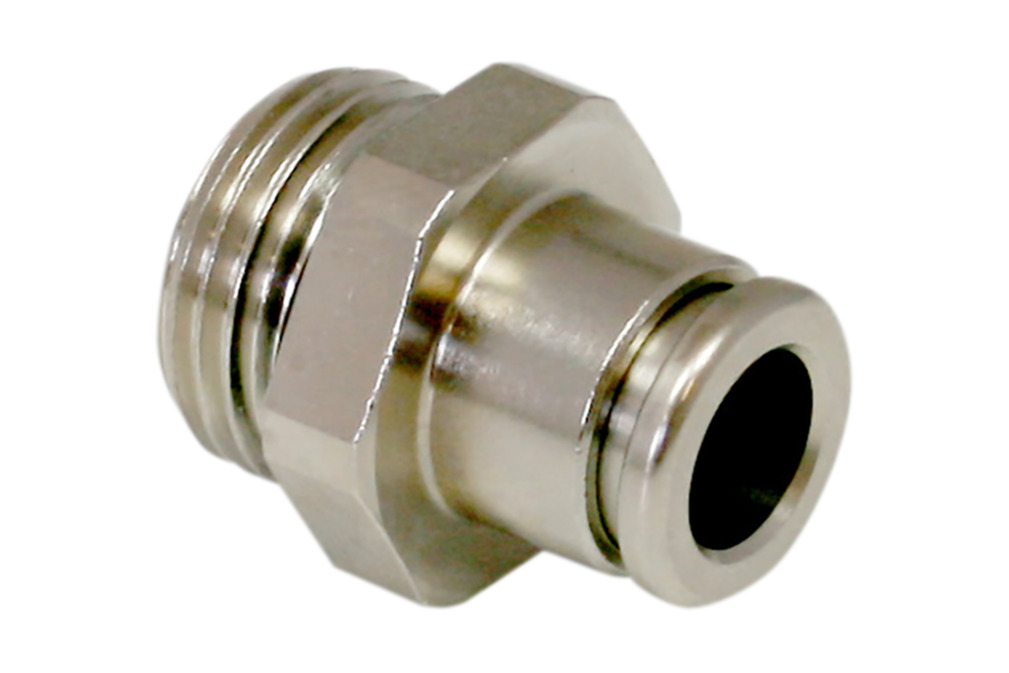

STV-GE G1/2-AG 10 > Vacuum Components

Thread G1	G1/2"-M
Outer hose diameter	10 (mm)
Material	Brass
Operating temperature	-20 ... 80 °C
Outside diameter D	16.5 (mm)
Length L	18.5 (mm)

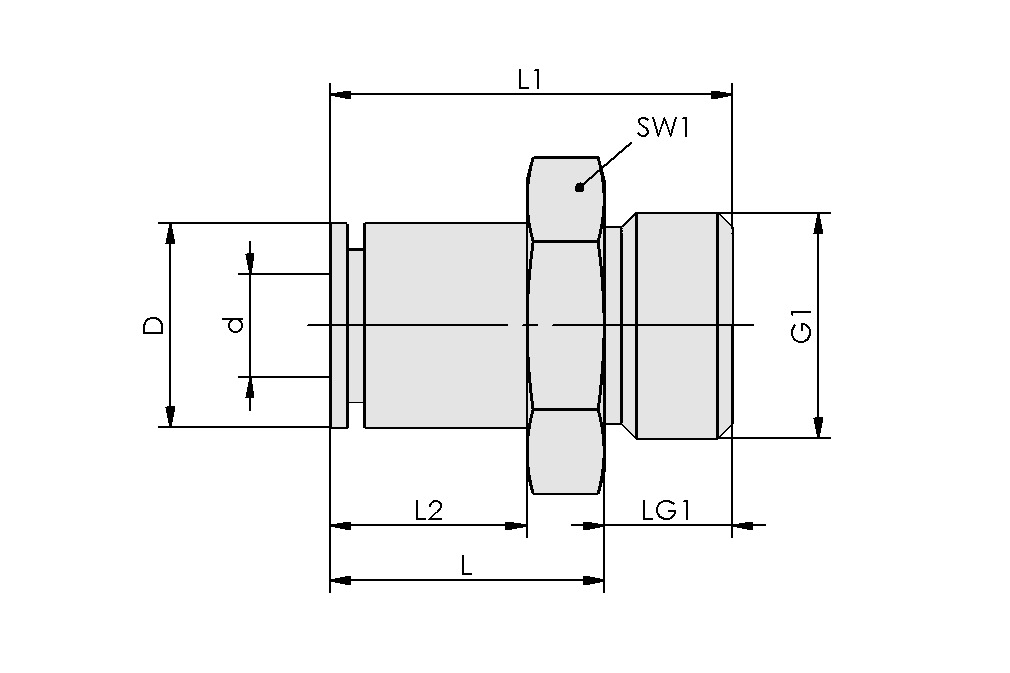

Attribute	Value
D	16.5 mm
d	10 mm
G1	G1/2"-M
dn	8 mm
L	18.5 mm
L1	28 mm
L2	12.5 mm
LG1	9.5 mm
SW1	24 mm

Attribute

Value

16.5 mm

10 mm

G1/2"-M

8 mm

18.5 mm

28 mm

12.5 mm

LG1

9.5 mm

SW1

24 mm

Attribute	Value
Design hose type	Hose D = 10 d = 7
Design hose type	10-7
Material	Brass
Pressure range (operating pressure) [bar]	-0.95 ... 15.00 bar
Operating temperature	-20 ... 80 °C
Weight	43 g
Product family	STV

Attribute

Value

Design hose type

Hose D = 10 d = 7

Design hose type

10-7

Material

Brass

Pressure range (operating pressure) [bar]

-0.95 ... 15.00 bar

Operating temperature

-20 ... 80 °C

Weight

43 g

Product family

STV

Accessories

VSL 10-7 PE MI-TR 10.07.09.00083 Hose for vacuum and compressed-air systems

Outside diameter D	10 (mm)
Internal diameter d	7 (mm)
Length max.	50 (m)
Material hose	PE
Bending radius min.	60 (mm)
Pressure range (operating pressure) [bar]	-0.95 ... 10.00 bar
Operating temperature	-30 ... 70 °C
Color	Milky-transparent
