The product FXP-S-SVK 640 5R18 O10O10 phases out and is available until 12/31/2027.

The product can no longer be ordered after this date. If you have any questions about an alternative, please get in touch with your local contact person.

Go to contact form

Back to product family

Product information

PHASE-OUT ITEM

FXP-S-SVK 640 5R18 O10O10

Part no.: 10.01.38.00919

Vacuum area gripping system with integrated pneumatic vacuum ball check valves

Length L	640 (mm)
Width B	130 (mm)
Arrangement	5R18
Material type	Schaum Offen, Höhe 2 x 10 mm
Number of suction cells	165
Additional function area gripper	1x control valve vacuum / blow-off
Design vacuum generator	Multi-stage ejector SEMP
Construction vacuum switch	PNP switching
Voltage DC	24 V - DC
Air consumption [l/min]	375 (l/min)
Weight	3.6 (kg)
Product family	FXP

Product information

Design Data

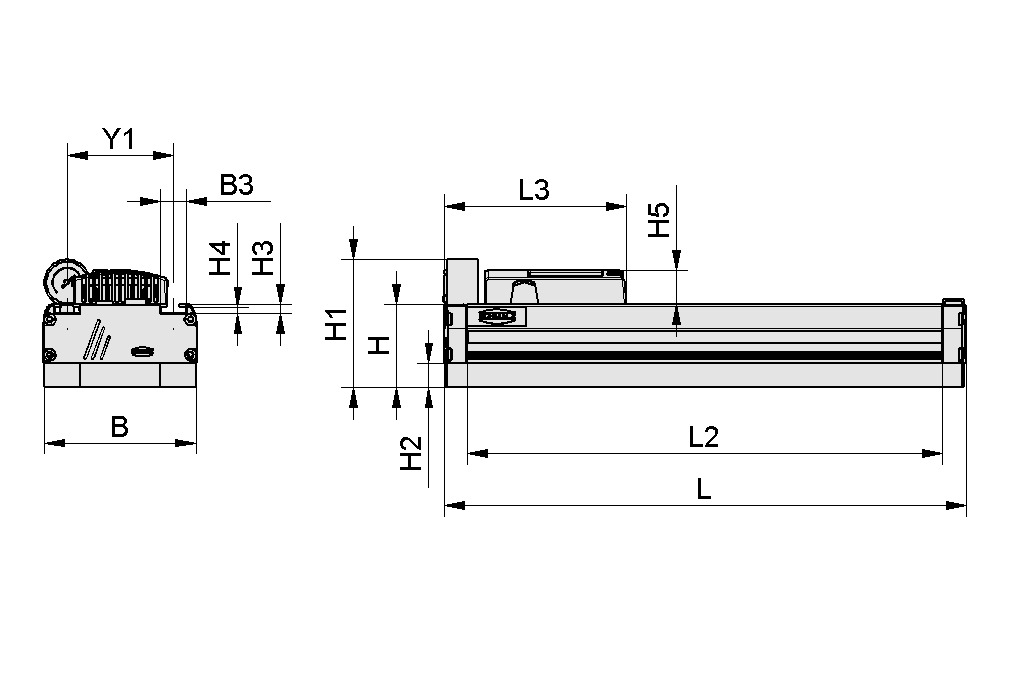

Design image

Attribute	Value
B	130 mm
B3	21.6 mm
H	70 mm
H1	109 mm
H2	20 mm
H3	7.7 mm
H4	5.5 mm
H5	28 mm
L	640 mm
L2	600 mm
L3	154 mm
Y1	90 mm
Valve type	SVK

Permissible dimensional tolerances for elastomer parts according to DIN ISO 3302-1 M3 Note: Two ejectors and silencer box covers are used for the 1,234 mm and 1,432 mm lengths. Type FXP requires compressed air hose 12/9 mm.

Technical Data

Attribute	Value
Arrangement	5R18
Material type	Schaum Offen, Höhe 2 x 10 mm
Number of suction cells	165
Suction force at -250 mbar	630 N
Suction rate (max.)	1,350 l/min
Air consumption [l/min]	375 l/min
Voltage	24V - DC
Sealing element	Sealing Foam
Additional function area gripper	1x control valve vacuum / blow-off
Weight	3.6 kg
Product family	FXP

Sound level: 74 dB(A) Max. degree of evacuation 55 %

Documentation

Spare parts

ERS FXP-S-SEMP-75 DECKEL

ERS FXP-S-SEMP-75 DECKEL 10.01.38.02191 Spare part set
